12
kreon.com
13
30
79
Ø65
110

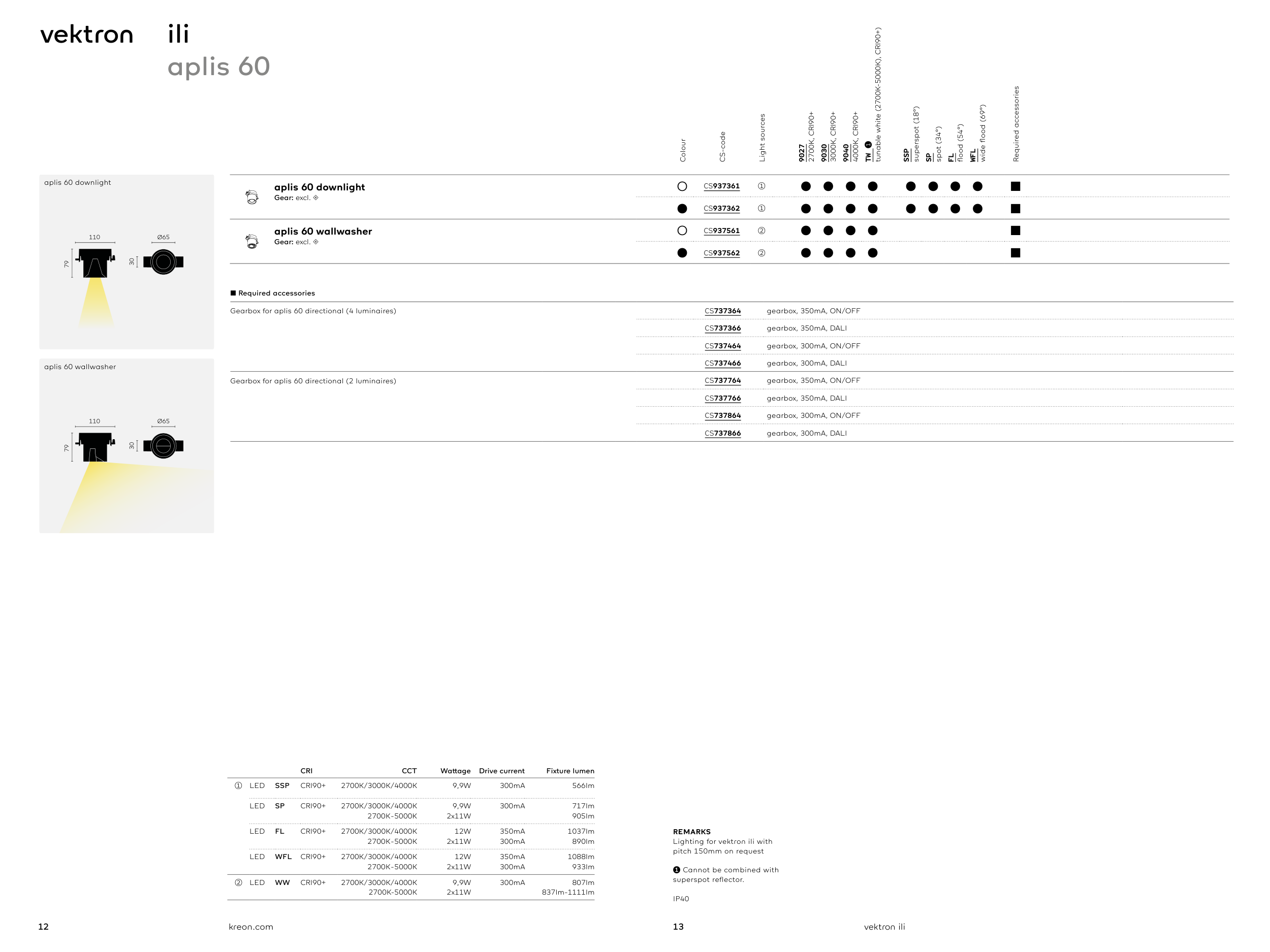

aplis 60 downlight
30
79
Ø65
110
aplis 60 wallwasher
REMARKS
Lighting for vektron ili with
pitch 150mm on request
➊ Cannot be combined with
superspot reflector.
IP40
■ Required accessories
Gearbox for aplis 60 directional (4 luminaires)
CS737364
gearbox, 350mA, ON/OFF
CS737366
gearbox, 350mA, DALI
CS737464
gearbox, 300mA, ON/OFF
CS737466
gearbox, 300mA, DALI
Gearbox for aplis 60 directional (2 luminaires)
CS737764
gearbox, 350mA, ON/OFF
CS737766
gearbox, 350mA, DALI
CS737864
gearbox, 300mA, ON/OFF
CS737866
gearbox, 300mA, DALI
� ili
CRI
CCT
Wattage
Drive current
Fixture lumen
1
LED
SSP
CRI90+
2700K/3000K/4000K
9,9W
300mA
566lm
LED
SP
CRI90+
2700K/3000K/4000K
2700K-5000K
9,9W
2x11W
300mA
717lm
905lm
LED
FL
CRI90+
2700K/3000K/4000K
2700K-5000K
12W
2x11W
350mA
300mA
1037lm
890lm
LED
WFL
CRI90+
2700K/3000K/4000K
2700K-5000K
12W
2x11W
350mA
300mA
1088lm
933lm
➁
LED
WW
CRI90+
2700K/3000K/4000K
2700K-5000K
9,9W
2x11W
300mA
807lm
837lm-1111lm
Colour
CS-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
TW ➊
tunable white (2700K-5000K), CRI90+)
SSP
superspot (18°)
SP
spot (34°)
FL
flood (54°)
WFL
wide flood (69°)
Required accessories
aplis 60 downlight
Gear: excl. 4
○
CS937361
1
●
●
●
●
●
●
●
●
■
●
CS937362
1
●
●
●
●
●
●
●
●
■
aplis 60 wallwasher
Gear: excl. 4
○
CS937561
➁
●
●
●
●
■
●
CS937562
➁
●
●
●
●
■
� ili
aplis 60
