8
9
100
50
150
60
34,5
38,4
80
50
130
60
34,5
38,4

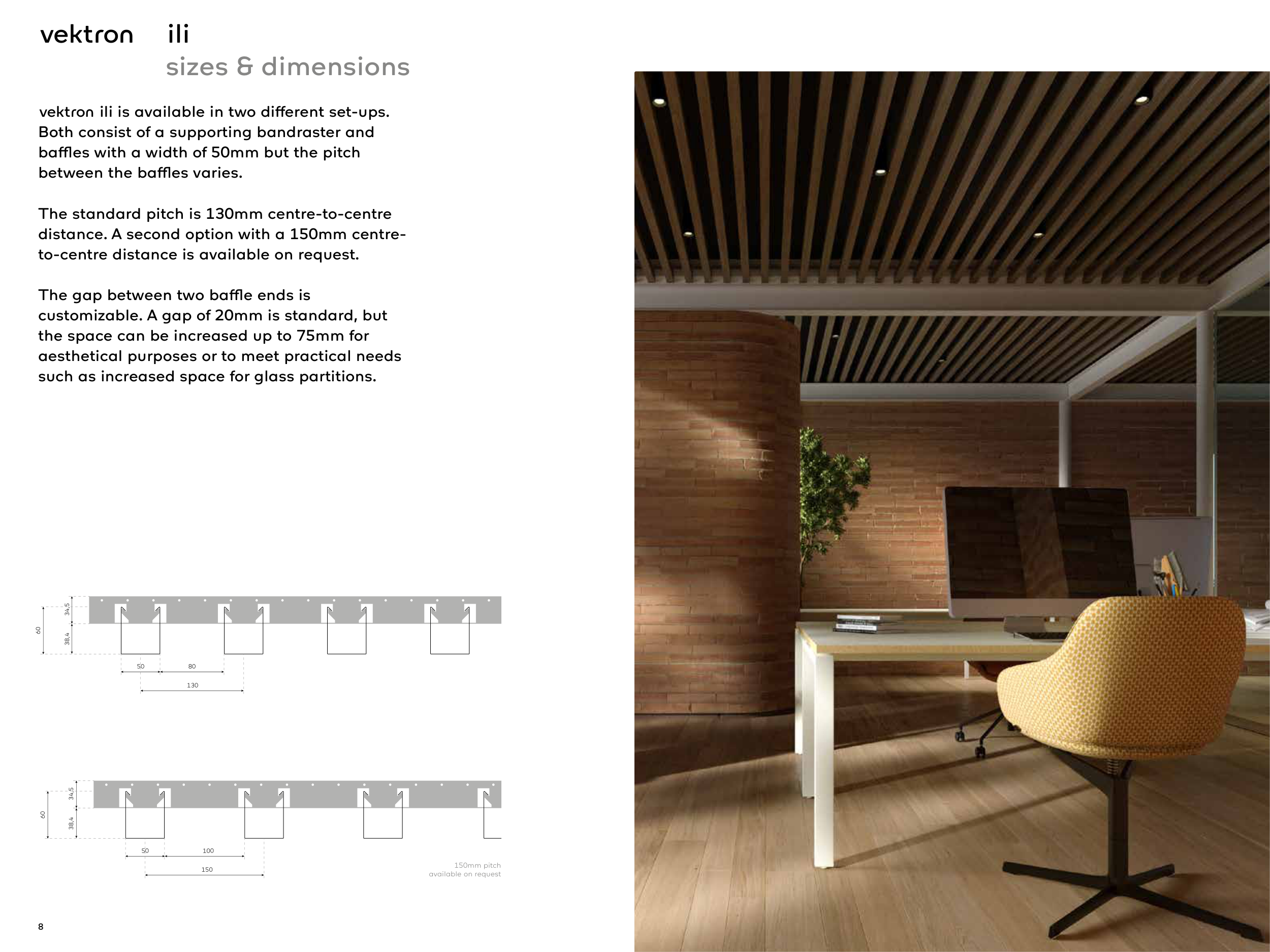

� ili
sizes & dimensions
� ili is available in two different set-ups.
Both consist of a supporting bandraster and
baffles with a width of 50mm but the pitch
between the baffles varies.
The standard pitch is 130mm centre-to-centre
distance. A second option with a 150mm centre-
to-centre distance is available on request.
The gap between two baffle ends is
customizable. A gap of 20mm is standard, but
the space can be increased up to 75mm for
aesthetical purposes or to meet practical needs
such as increased space for glass partitions.
150mm pitch
available on request
