6
7
colours & finishes
RAL9016
gloss ≤ 6%
RAL9004
gloss ≤ 3%
wood finish light (veneer)
gloss 7,5%
wood finish middle (chestnut)
gloss 26,5%
wood finish dark (walnut)
gloss 22%
(other colours on request)
perforation (optional)
perforation RD1821
diameter: 1,8mm
diagonal pitch: 2,47mm
% perfo area/baffle 50mm: 77%
180mm: 87%
� ili

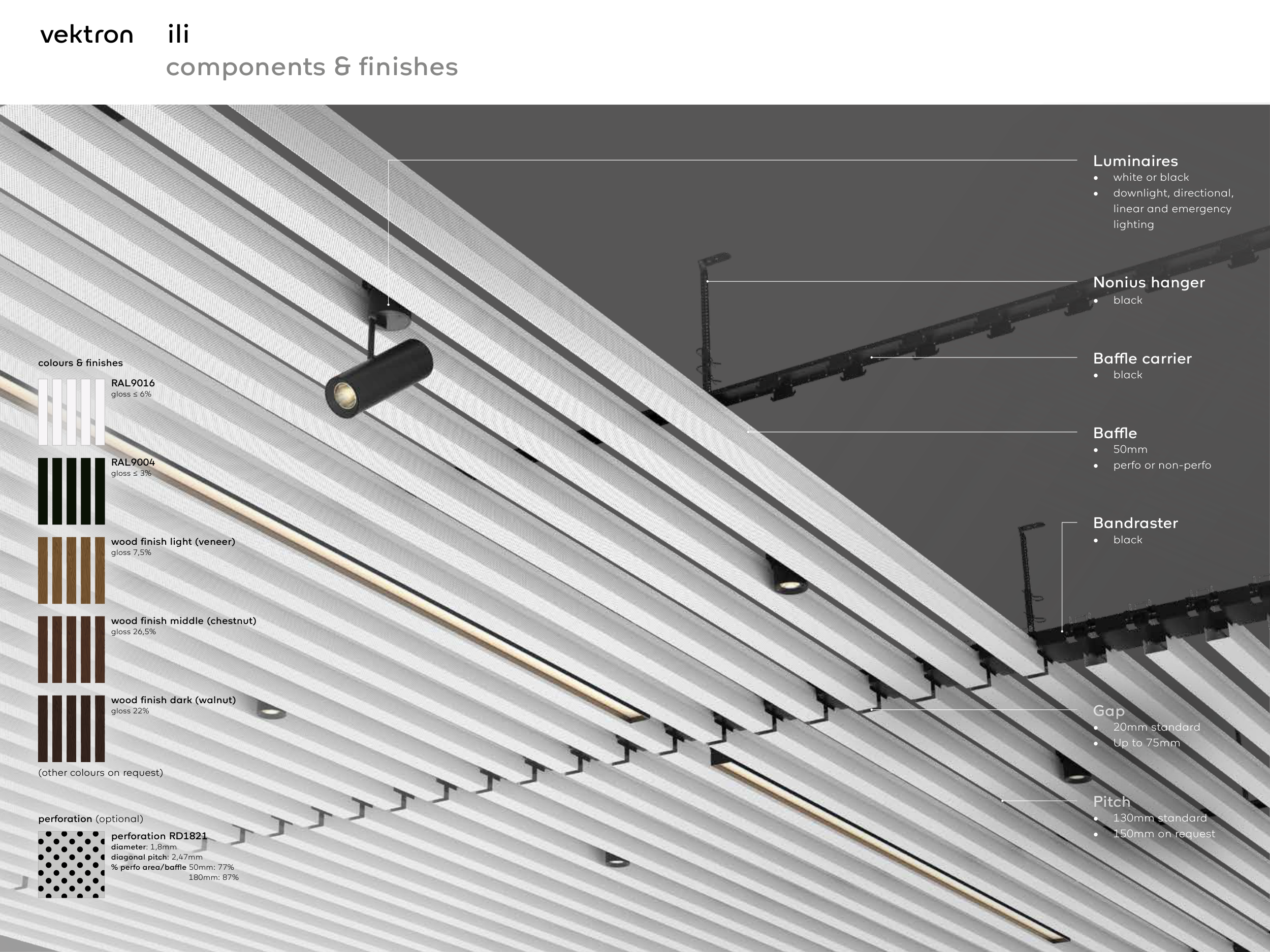

components & finishes
Luminaires
•
white or black
•
downlight, directional,
linear and emergency
lighting
Baffle carrier
•
black
Gap
•
20mm standard
•
Up to 75mm
Pitch
•
130mm standard
•
150mm on request
Nonius hanger
•
black
Baffle
•
50mm
•
perfo or non-perfo
Bandraster
•
black
