vektron ceiling raf s
www.kreon.com/vektron
14
15
700 500 300 50
700 500 300 50
700 500
300
50
700 500 200 50
700 500 200 50
700 500 200 50

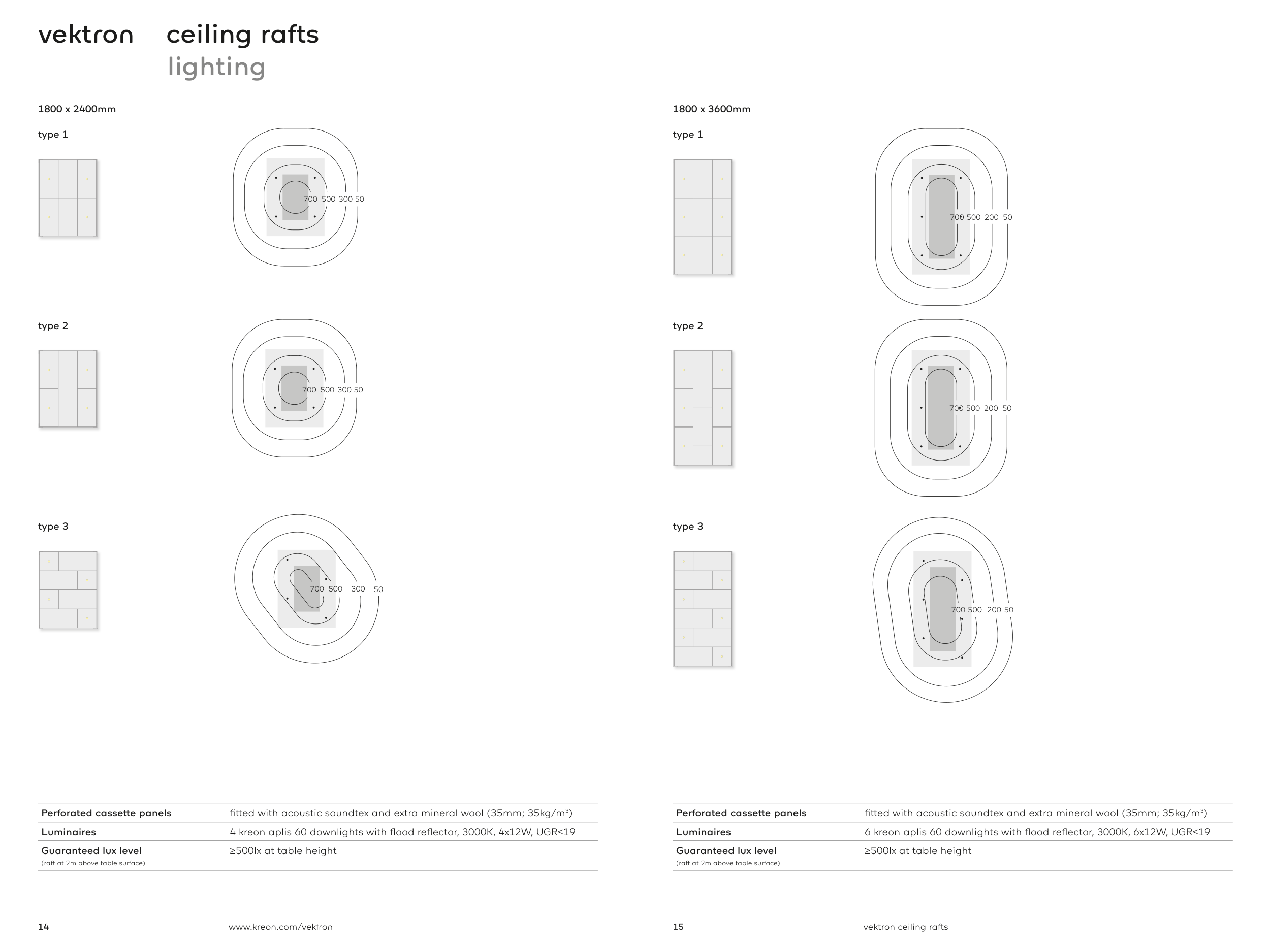

vektron ceiling rafts
14
Perforated casset e panels
f t ed with acoustic soundtex and extra mineral wool (35mm; 35kg/m3)
Luminaires
4 kreon aplis 60 downlights with f ood ref ector, 3000K, 4x12W, UGR<19
Guaranteed lux level
(raf at 2m above table surface)
≥500lx at table height
Perforated casset e panels
f t ed with acoustic soundtex and extra mineral wool (35mm; 35kg/m3)
Luminaires
6 kreon aplis 60 downlights with f ood ref ector, 3000K, 6x12W, UGR<19
Guaranteed lux level
(raf at 2m above table surface)
≥500lx at table height
type 1
type 3
type 2
1800 x 3600mm
type 1
type 3
type 2
1800 x 2400mm
vektron ceiling rafts
lighting
