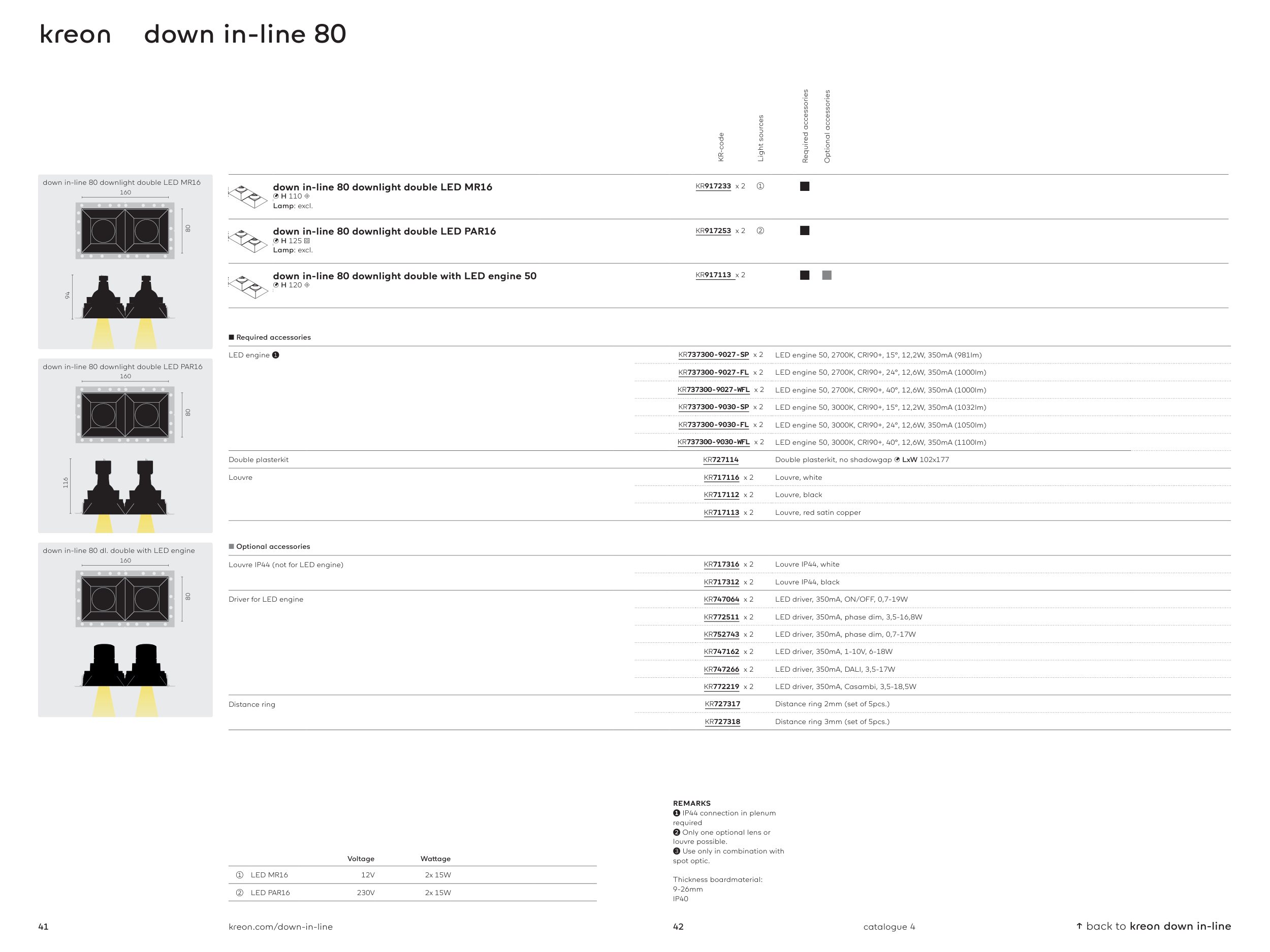

kreon down in-line 80
160
80
116
160
80
94
down in-line 80 downlight double LED PAR16
down in-line 80 downlight double LED MR16
160
80
down in-line 80 dl. double with LED engine
↑ back to kreon down in-line
catalogue 4
kreon.com/down-in-line
Voltage
Wattage
➀
LED MR16
12V
2x 15W
➁
LED PAR16
230V
2x 15W
KR-code
Light sources
Required accessories
Optional accessories
down in-line 80 downlight double LED MR16
1 H 110 4
Lamp: excl.
KR917233 x 2
➀
■
down in-line 80 downlight double LED PAR16
1 H 125 6
Lamp: excl.
KR917253 x 2
➁
■
down in-line 80 downlight double with LED engine 50
1 H 120 4
KR917113 x 2
■
■
REMARKS
➊ IP44 connection in plenum
required
➋ Only one optional lens or
louvre possible.
➌ Use only in combination with
spot optic.
Thickness boardmaterial:
9-26mm
IP40
■ Required accessories
LED engine ➊
KR737300-9027-SP x 2
LED engine 50, 2700K, CRI90+, 15°, 12,2W, 350mA (981lm)
KR737300-9027-FL x 2
LED engine 50, 2700K, CRI90+, 24°, 12,6W, 350mA (1000lm)
KR737300-9027-WFL x 2
LED engine 50, 2700K, CRI90+, 40°, 12,6W, 350mA (1000lm)
KR737300-9030-SP x 2
LED engine 50, 3000K, CRI90+, 15°, 12,2W, 350mA (1032lm)
KR737300-9030-FL x 2
LED engine 50, 3000K, CRI90+, 24°, 12,6W, 350mA (1050lm)
KR737300-9030-WFL x 2
LED engine 50, 3000K, CRI90+, 40°, 12,6W, 350mA (1100lm)
Double plasterkit
KR727114
Double plasterkit, no shadowgap 1 LxW 102x177
Louvre
KR717116 x 2
Louvre, white
KR717112 x 2
Louvre, black
KR717113 x 2
Louvre, red satin copper
■ Optional accessories
Louvre IP44 (not for LED engine)
KR717316 x 2
Louvre IP44, white
KR717312 x 2
Louvre IP44, black
Driver for LED engine
KR747064 x 2
LED driver, 350mA, ON/OFF, 0,7-19W
KR772511 x 2
LED driver, 350mA, phase dim, 3,5-16,8W
KR752743 x 2
LED driver, 350mA, phase dim, 0,7-17W
KR747162 x 2
LED driver, 350mA, 1-10V, 6-18W
KR747266 x 2
LED driver, 350mA, DALI, 3,5-17W
KR772219 x 2
LED driver, 350mA, Casambi, 3,5-18,5W
Distance ring
KR727317
Distance ring 2mm (set of 5pcs.)
KR727318
Distance ring 3mm (set of 5pcs.)
