24
23

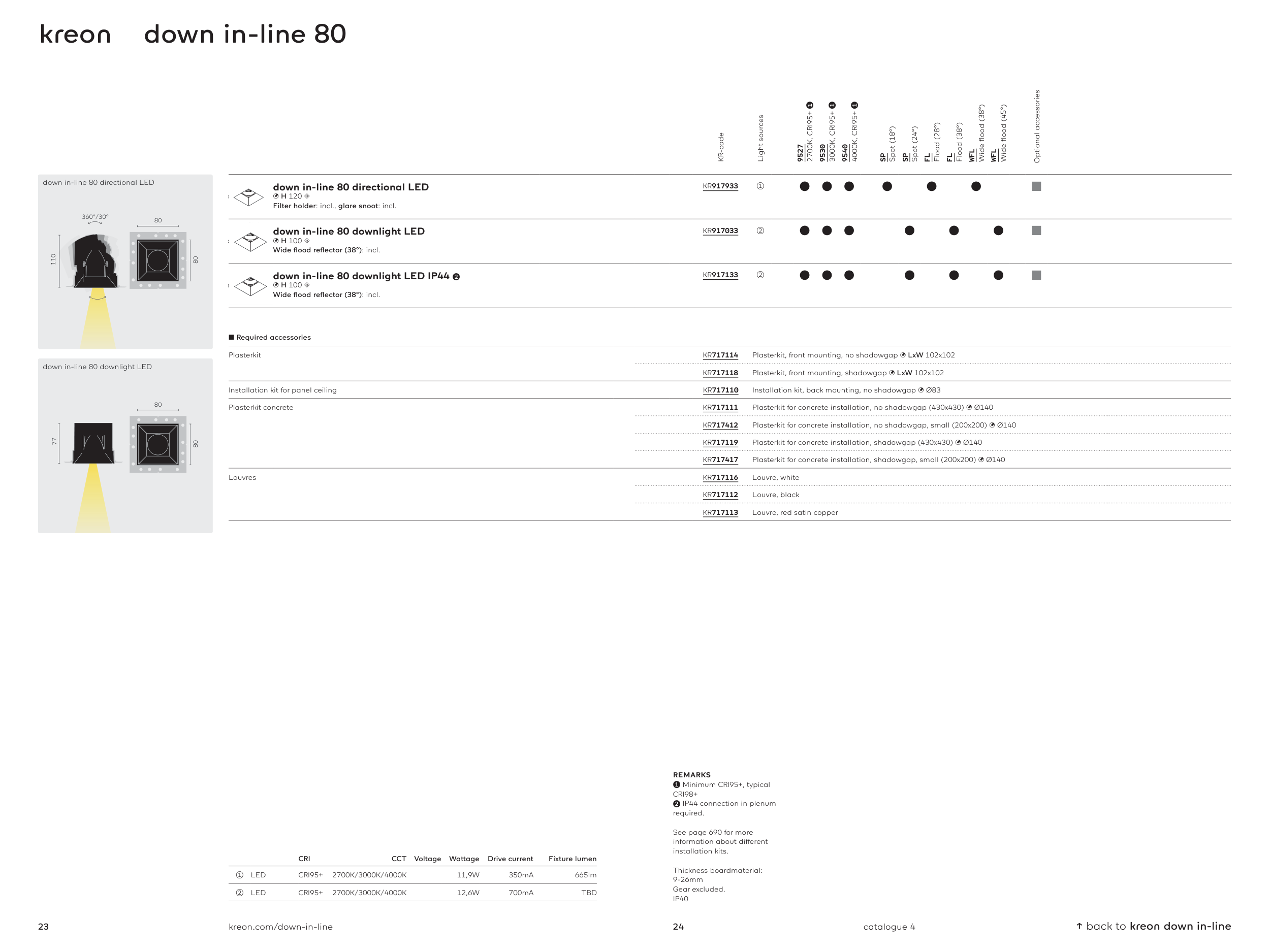

kreon down in-line 80
80
80
360°/30°
110
down in-line 80 directional LED
77
80
80
down in-line 80 downlight LED
↑ back to kreon down in-line
catalogue 4
kreon.com/down-in-line
CRI
CCT
Voltage
Wattage
Drive current
Fixture lumen
1
LED
CRI95+
2700K/3000K/4000K
11,9W
350mA
665lm
➁
LED
CRI95+
2700K/3000K/4000K
12,6W
700mA
TBD
KR-code
Light sources
9527
2700K, CRI95+ ➊
9530
3000K, CRI95+ ➊
9540
4000K, CRI95+ ➊
SP
Spot (18°)
SP
Spot (24°)
FL
Flood (28°)
FL
Flood (38°)
WFL
Wide flood (38°)
WFL
Wide flood (45°)
Optional accessories
down in-line 80 directional LED
1 H 120 4
Filter holder: incl., glare snoot: incl.
KR917933
➀
●
●
●
●
●
●
■
down in-line 80 downlight LED
1 H 100 4
Wide flood reflector (38°): incl.
KR917033
➁
●
●
●
●
●
●
■
down in-line 80 downlight LED IP44 ➋
1 H 100 4
Wide flood reflector (38°): incl.
KR917133
➁
●
●
●
●
●
●
■
REMARKS
➊ Minimum CRI95+, typical
CRI98+
➋ IP44 connection in plenum
required.
See page 690 for more
information about different
installation kits.
Thickness boardmaterial:
9-26mm
Gear excluded.
IP40
■ Required accessories
Plasterkit
KR717114
Plasterkit, front mounting, no shadowgap 1 LxW 102x102
KR717118
Plasterkit, front mounting, shadowgap 1 LxW 102x102
Installation kit for panel ceiling
KR717110
Installation kit, back mounting, no shadowgap 1 Ø83
Plasterkit concrete
KR717111
Plasterkit for concrete installation, no shadowgap (430x430) 1 Ø140
KR717412
Plasterkit for concrete installation, no shadowgap, small (200x200) 1 Ø140
KR717119
Plasterkit for concrete installation, shadowgap (430x430) 1 Ø140
KR717417
Plasterkit for concrete installation, shadowgap, small (200x200) 1 Ø140
Louvres
KR717116
Louvre, white
KR717112
Louvre, black
KR717113
Louvre, red satin copper
