6
5
Ø50

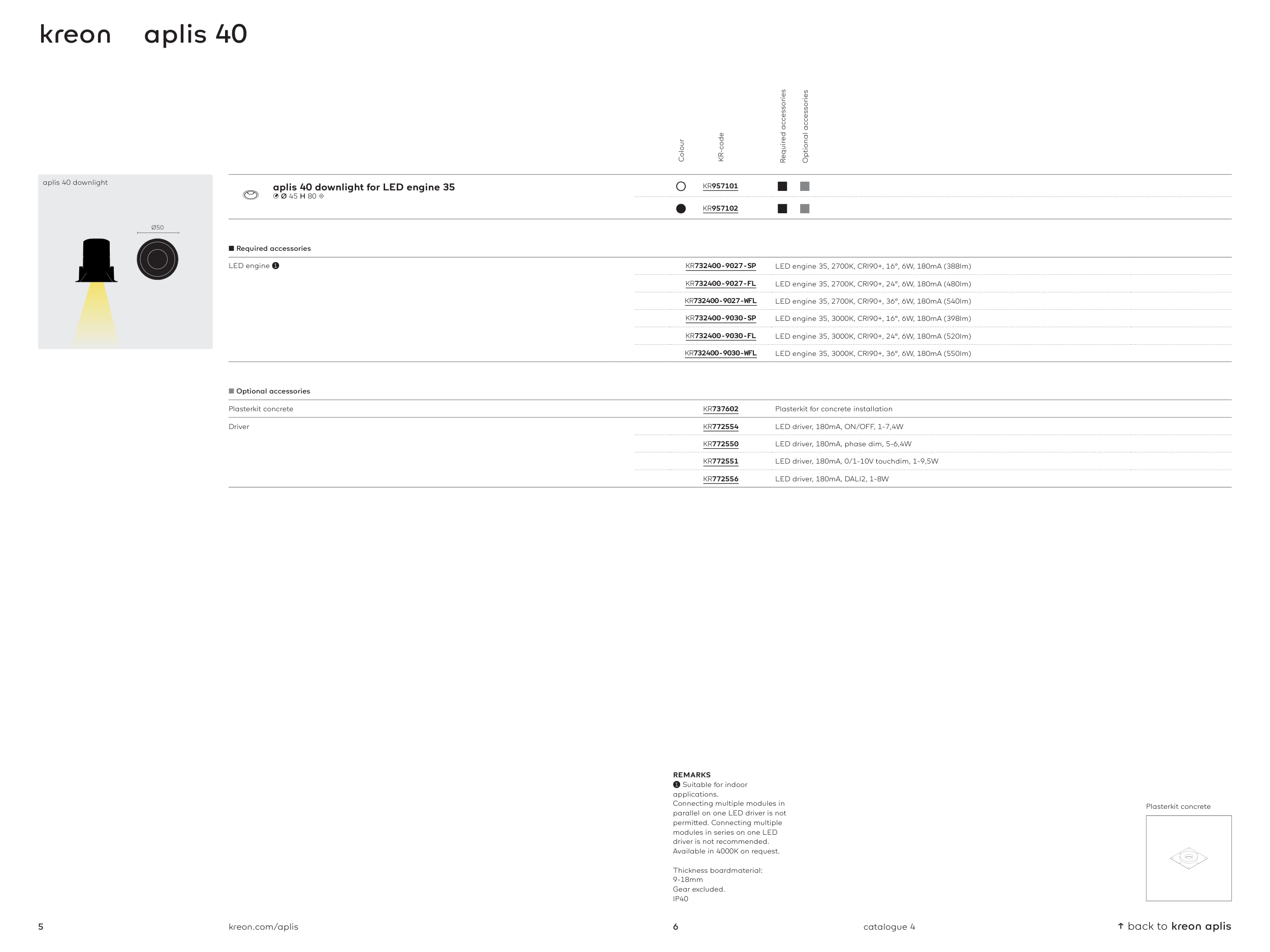

aplis 40 downlight
kreon aplis 40
↑ back to kreon aplis
kreon.com/aplis
catalogue 4
Colour
KR-code
Required accessories
Optional accessories
aplis 40 downlight for LED engine 35
1 Ø 45 H 80 4
○
KR957101
■
■
●
KR957102
■
■
Plasterkit concrete
REMARKS
➊ Suitable for indoor
applications.
Connecting multiple modules in
parallel on one LED driver is not
permitted. Connecting multiple
modules in series on one LED
driver is not recommended.
Available in 4000K on request.
Thickness boardmaterial:
9-18mm
Gear excluded.
IP40
■ Required accessories
LED engine ➊
KR732400-9027-SP
LED engine 35, 2700K, CRI90+, 16°, 6W, 180mA (388lm)
KR732400-9027-FL
LED engine 35, 2700K, CRI90+, 24°, 6W, 180mA (480lm)
KR732400-9027-WFL
LED engine 35, 2700K, CRI90+, 36°, 6W, 180mA (540lm)
KR732400-9030-SP
LED engine 35, 3000K, CRI90+, 16°, 6W, 180mA (398lm)
KR732400-9030-FL
LED engine 35, 3000K, CRI90+, 24°, 6W, 180mA (520lm)
KR732400-9030-WFL
LED engine 35, 3000K, CRI90+, 36°, 6W, 180mA (550lm)
■ Optional accessories
Plasterkit concrete
KR737602
Plasterkit for concrete installation
Driver
KR772554
LED driver, 180mA, ON/OFF, 1-7,4W
KR772550
LED driver, 180mA, phase dim, 5-6,4W
KR772551
LED driver, 180mA, 0/1-10V touchdim, 1-9,5W
KR772556
LED driver, 180mA, DALI2, 1-8W
