Ø45
143
20
holon 40 on-kagi wallwasher, level 1
45
143
20
45
prologe 40 on-kagi wallwasher, level 1
5 m
A
wall
floor
2 m
4 m
3 m
2 m
1 m
0 m
B
Reflection values: wall=70%, ceiling=50%, floor=20%; maintenance factor 0.8
A=50; B=50
catalogue 4
0m
1m
2m
3m
4m
5m

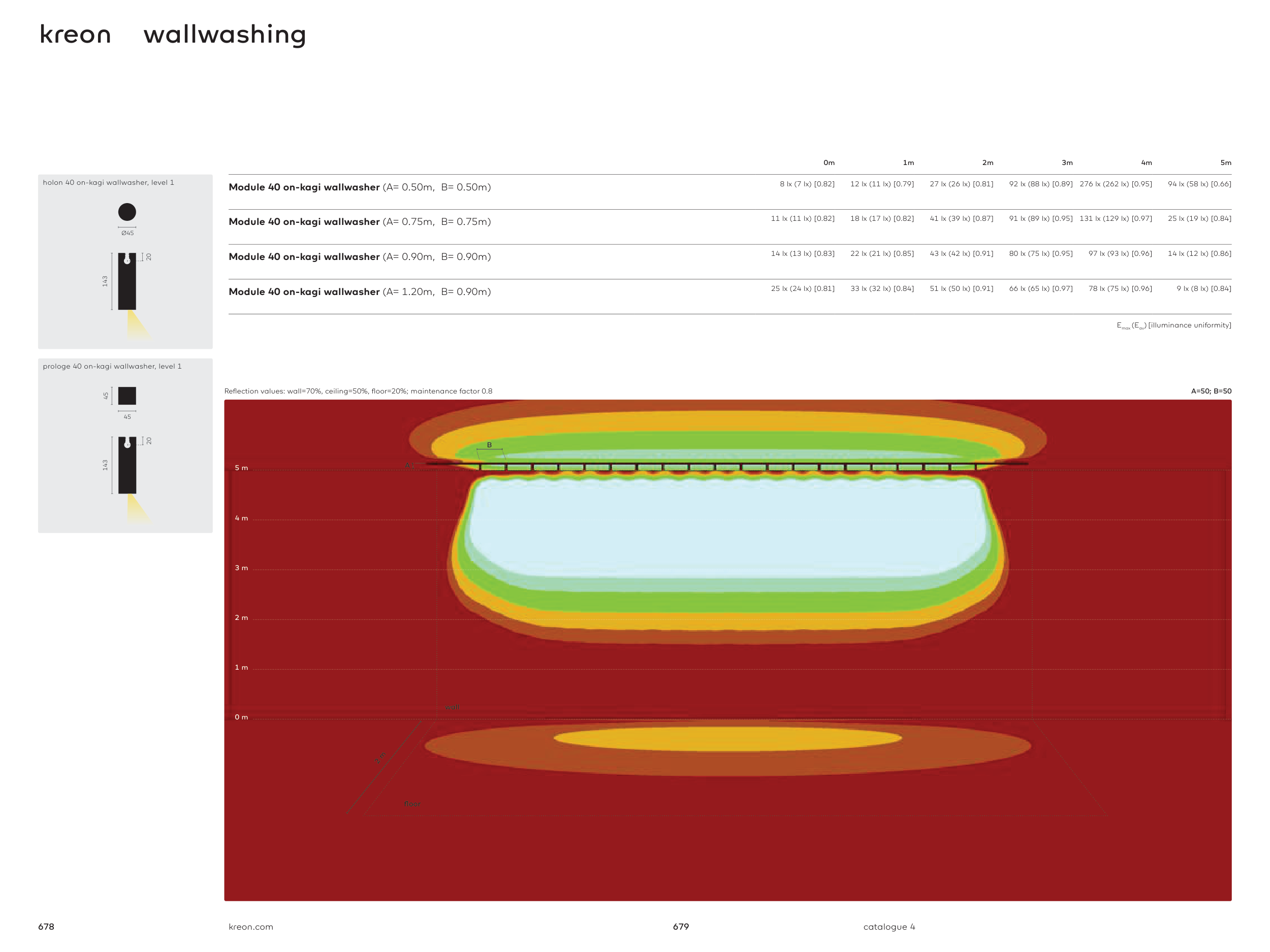

Module 40 on-kagi wallwasher (A= 0.50m, B= 0.50m)
8 lx (7 lx) [0.82]
12 lx (11 lx) [0.79]
27 lx (26 lx) [0.81]
92 lx (88 lx) [0.89]
276 lx (262 lx) [0.95]
94 lx (58 lx) [0.66]
Module 40 on-kagi wallwasher (A= 0.75m, B= 0.75m)
11 lx (11 lx) [0.82]
18 lx (17 lx) [0.82]
41 lx (39 lx) [0.87]
91 lx (89 lx) [0.95]
131 lx (129 lx) [0.97]
25 lx (19 lx) [0.84]
Module 40 on-kagi wallwasher (A= 0.90m, B= 0.90m)
14 lx (13 lx) [0.83]
22 lx (21 lx) [0.85]
43 lx (42 lx) [0.91]
80 lx (75 lx) [0.95]
97 lx (93 lx) [0.96]
14 lx (12 lx) [0.86]
Module 40 on-kagi wallwasher (A= 1.20m, B= 0.90m)
25 lx (24 lx) [0.81]
33 lx (32 lx) [0.84]
51 lx (50 lx) [0.91]
66 lx (65 lx) [0.97]
78 lx (75 lx) [0.96]
9 lx (8 lx) [0.84]
Emax (Eav) [illuminance uniformity]
