Reflection values: wall=70%, ceiling=50%, floor=20%; maintenance factor 0.8
5 m
A
wall
floor
2 m
4 m
3 m
2 m
1 m
0 m
B
A=90; B=90
0m
1m
2m
3m
4m
5m

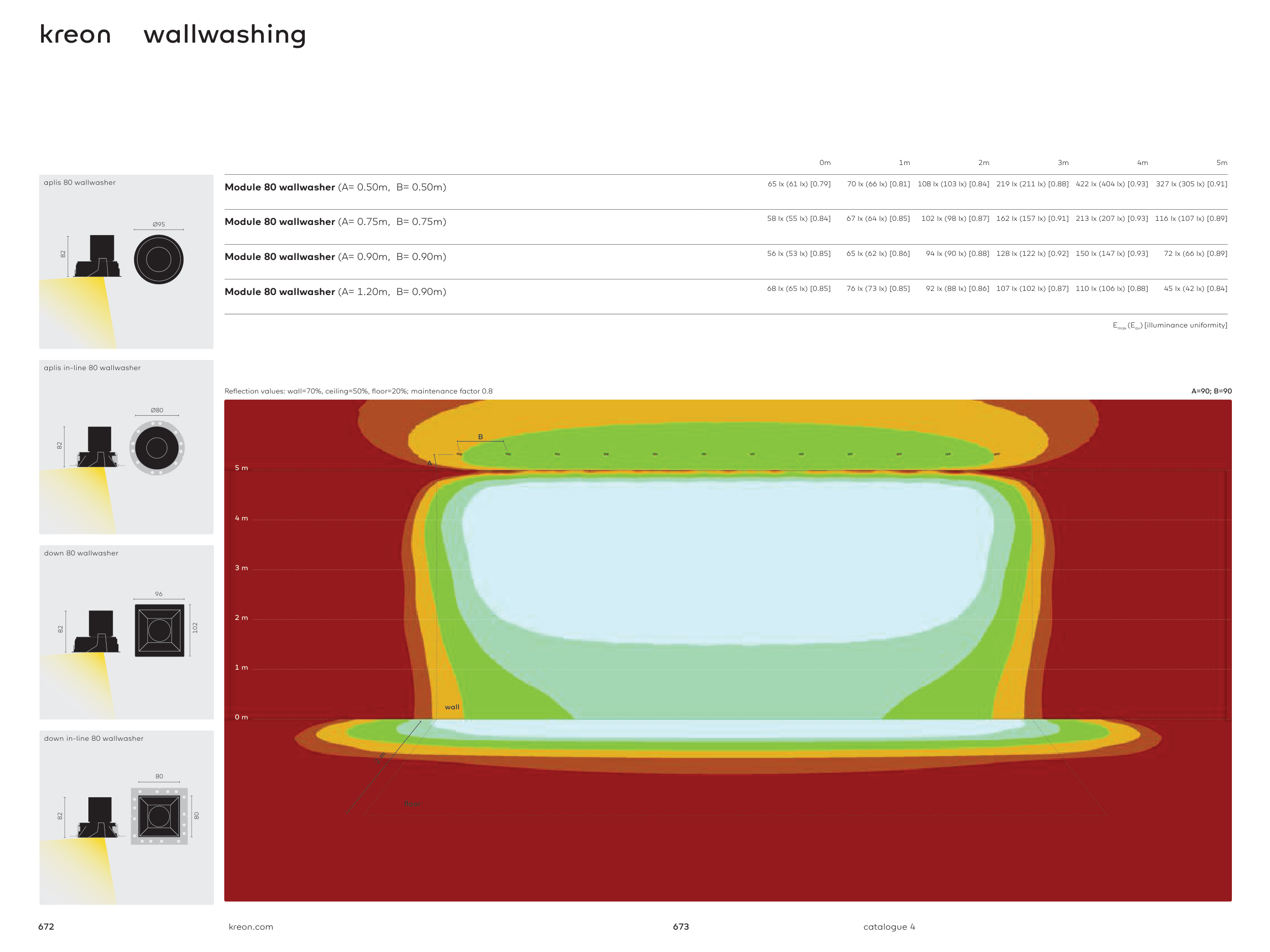

Module 80 wallwasher (A= 0.50m, B= 0.50m)
65 lx (61 lx) [0.79]
70 lx (66 lx) [0.81]
108 lx (103 lx) [0.84]
219 lx (211 lx) [0.88]
422 lx (404 lx) [0.93]
327 lx (305 lx) [0.91]
Module 80 wallwasher (A= 0.75m, B= 0.75m)
58 lx (55 lx) [0.84]
67 lx (64 lx) [0.85]
102 lx (98 lx) [0.87]
162 lx (157 lx) [0.91]
213 lx (207 lx) [0.93]
116 lx (107 lx) [0.89]
Module 80 wallwasher (A= 0.90m, B= 0.90m)
56 lx (53 lx) [0.85]
65 lx (62 lx) [0.86]
94 lx (90 lx) [0.88]
128 lx (122 lx) [0.92]
150 lx (147 lx) [0.93]
72 lx (66 lx) [0.89]
Module 80 wallwasher (A= 1.20m, B= 0.90m)
68 lx (65 lx) [0.85]
76 lx (73 lx) [0.85]
92 lx (88 lx) [0.86]
107 lx (102 lx) [0.87]
110 lx (106 lx) [0.88]
45 lx (42 lx) [0.84]
Emax (Eav) [illuminance uniformity]
Ø95
82
82
Ø80
80
80
82
aplis 80 wallwasher
aplis in-line 80 wallwasher
down in-line 80 wallwasher
102
96
82
down 80 wallwasher
