550
551
155
97
155
155
97
155

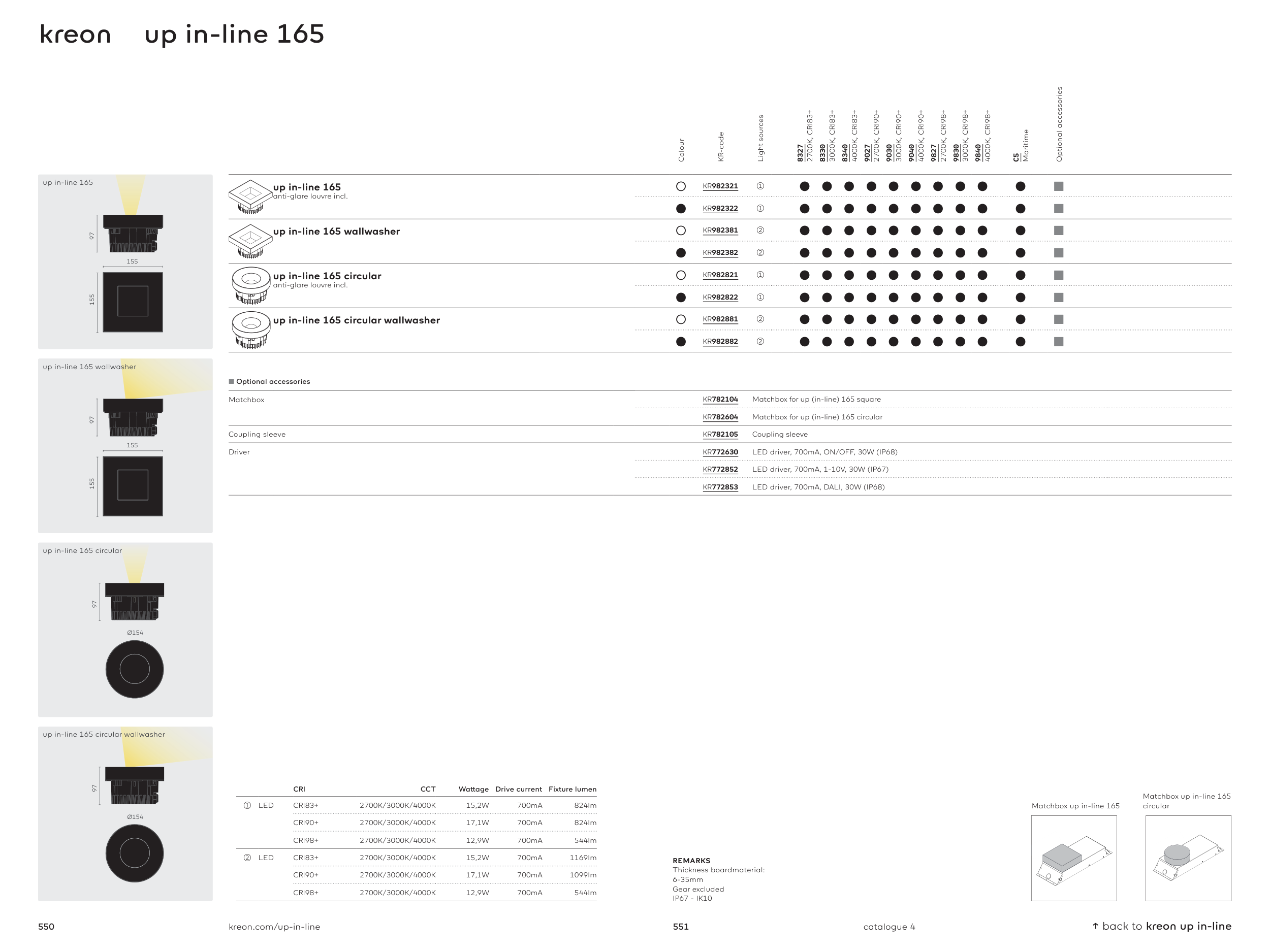

kreon up in-line 165
up in-line 165 wallwasher
up in-line 165
Ø154
97
Ø154
97
up in-line 165 circular wallwasher
up in-line 165 circular
↑ back to kreon up in-line
catalogue 4
kreon.com/up-in-line
CRI
CCT
Wattage
Drive current
Fixture lumen
1
LED
CRI83+
2700K/3000K/4000K
15,2W
700mA
824lm
CRI90+
2700K/3000K/4000K
17,1W
700mA
824lm
CRI98+
2700K/3000K/4000K
12,9W
700mA
544lm
2
LED
CRI83+
2700K/3000K/4000K
15,2W
700mA
1169lm
CRI90+
2700K/3000K/4000K
17,1W
700mA
1099lm
CRI98+
2700K/3000K/4000K
12,9W
700mA
544lm
REMARKS
Thickness boardmaterial:
6-35mm
Gear excluded
IP67 - IK10
■ Optional accessories
Matchbox
KR782104
Matchbox for up (in-line) 165 square
KR782604
Matchbox for up (in-line) 165 circular
Coupling sleeve
KR782105
Coupling sleeve
Driver
KR772630
LED driver, 700mA, ON/OFF, 30W (IP68)
KR772852
LED driver, 700mA, 1-10V, 30W (IP67)
KR772853
LED driver, 700mA, DALI, 30W (IP68)
Colour
KR-code
Light sources
8327
2700K, CRI83+
8330
3000K, CRI83+
8340
4000K, CRI83+
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
9827
2700K, CRI98+
9830
3000K, CRI98+
9840
4000K, CRI98+
C5
Maritime
Optional accessories
up in-line 165
anti-glare louvre incl.
○
KR982321
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR982322
➀
●
●
●
●
●
●
●
●
●
●
■
up in-line 165 wallwasher
○
KR982381
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR982382
➁
●
●
●
●
●
●
●
●
●
●
■
up in-line 165 circular
anti-glare louvre incl.
○
KR982821
➀
●
●
●
●
●
●
●
●
●
●
■
●
KR982822
➀
●
●
●
●
●
●
●
●
●
●
■
up in-line 165 circular wallwasher
○
KR982881
➁
●
●
●
●
●
●
●
●
●
●
■
●
KR982882
➁
●
●
●
●
●
●
●
●
●
●
■
Matchbox up in-line 165
circular
Matchbox up in-line 165
