490
491
28
200
200
50
Ø25
200
200
28
200
200
50
Ø25

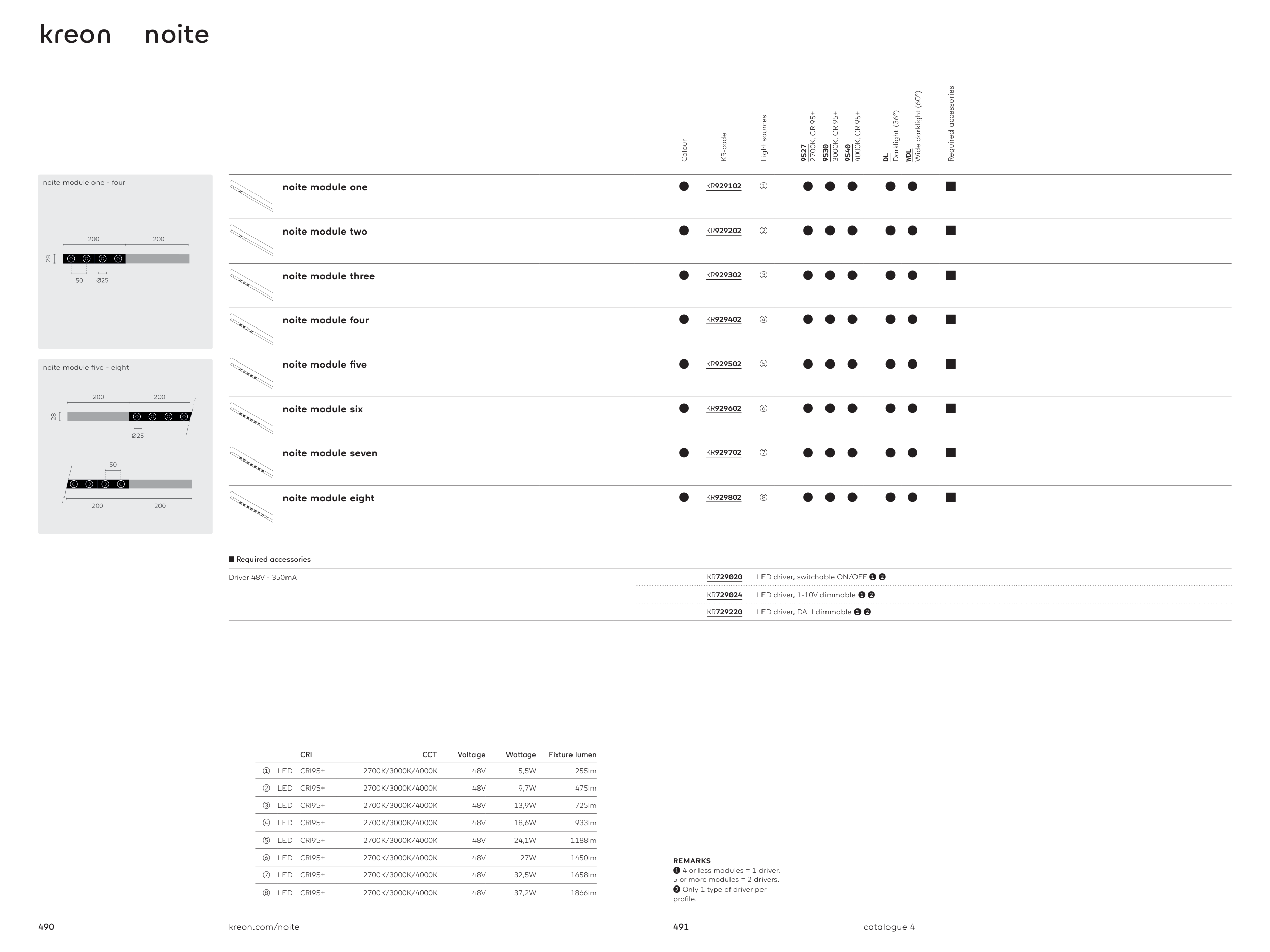

kreon noite
catalogue 4
kreon.com/noite
noite module one - four
noite module five - eight
REMARKS
➊ 4 or less modules = 1 driver.
5 or more modules = 2 drivers.
➋ Only 1 type of driver per
profile.
Colour
KR-code
Light sources
9527
2700K, CRI95+
9530
3000K, CRI95+
9540
4000K, CRI95+
DL
Darklight (36°)
WDL
Wide darklight (60°)
Required accessories
noite module one
●
KR929102
➀
●
●
●
●
●
■
noite module two
●
KR929202
➁
●
●
●
●
●
■
noite module three
●
KR929302
➂
●
●
●
●
●
■
noite module four
●
KR929402
➃
●
●
●
●
●
■
noite module five
●
KR929502
➄
●
●
●
●
●
■
noite module six
●
KR929602
6
●
●
●
●
●
■
noite module seven
●
KR929702
➆
●
●
●
●
●
■
noite module eight
●
KR929802
➇
●
●
●
●
●
■
CRI
CCT
Voltage
Wattage
Fixture lumen
1
LED
CRI95+
2700K/3000K/4000K
48V
5,5W
255lm
➁
LED
CRI95+
2700K/3000K/4000K
48V
9,7W
475lm
➂
LED
CRI95+
2700K/3000K/4000K
48V
13,9W
725lm
➃
LED
CRI95+
2700K/3000K/4000K
48V
18,6W
933lm
➄
LED
CRI95+
2700K/3000K/4000K
48V
24,1W
1188lm
➅
LED
CRI95+
2700K/3000K/4000K
48V
27W
1450lm
➆
LED
CRI95+
2700K/3000K/4000K
48V
32,5W
1658lm
➇
LED
CRI95+
2700K/3000K/4000K
48V
37,2W
1866lm
■ Required accessories
Driver 48V - 350mA
KR729020
LED driver, switchable ON/OFF ➊ ➋
KR729024
LED driver, 1-10V dimmable ➊ ➋
KR729220
LED driver, DALI dimmable ➊ ➋
