Direct 24V profile feed for plasterboard ceilings with power supply positioned right above the
kagi structure. Use the power supply hide-away. for easy access of drivers.

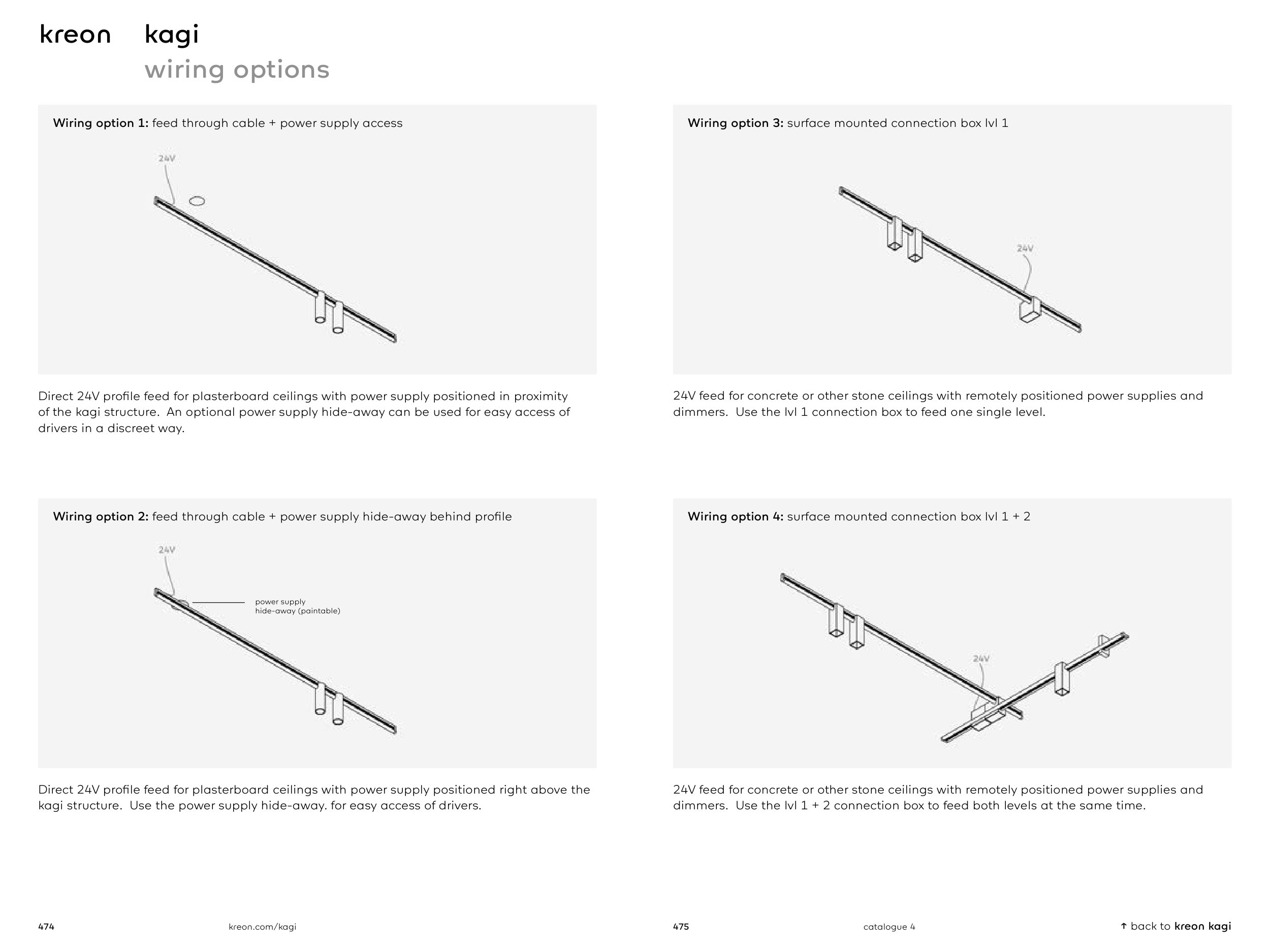

Wiring option 1: feed through cable + power supply access
Wiring option 2: feed through cable + power supply hide-away behind profile
kreon kagi
wiring options
Direct 24V profile feed for plasterboard ceilings with power supply positioned in proximity
of the kagi structure. An optional power supply hide-away can be used for easy access of
drivers in a discreet way.
24V feed for concrete or other stone ceilings with remotely positioned power supplies and
dimmers. Use the lvl 1 connection box to feed one single level.
Wiring option 3: surface mounted connection box lvl 1
24V feed for concrete or other stone ceilings with remotely positioned power supplies and
dimmers. Use the lvl 1 + 2 connection box to feed both levels at the same time.
Wiring option 4: surface mounted connection box lvl 1 + 2
power supply
hide-away (paintable)
