450
451
kreon.com/inline
450
451
24
80
40
20
76
40
20
76
40
48

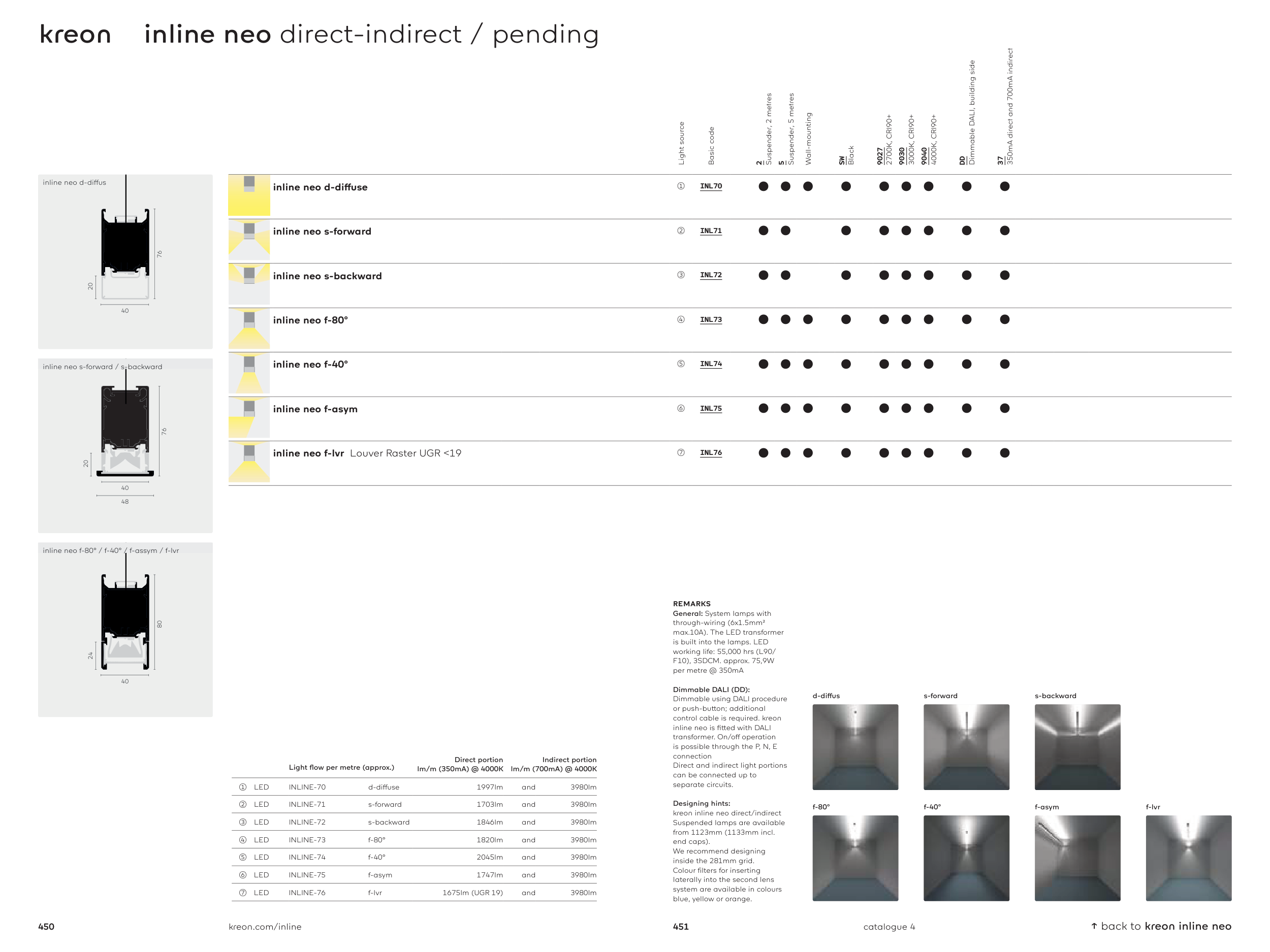

kreon inline neo direct-indirect / pending
f-40°
s-backward
s-forward
d-diffus
f-asym
f-lvr
f-80°
inline neo f-80° / f-40° / f-assym / f-lvr
inline neo s-forward / s-backward
inline neo d-diffus
↑ back to kreon inline neo
catalogue 4
Light source
Basic code
2
Suspender, 2 metres
5
Suspender, 5 metres
Wall-mounting
SW
Black
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
DD
Dimmable DALI, building side
37
350mA direct and 700mA indirect
inline neo d-diffuse
➀
INL70
●
●
●
●
●
●
●
●
●
inline neo s-forward
➁
INL71
●
●
●
●
●
●
●
●
inline neo s-backward
➂
INL72
●
●
●
●
●
●
●
●
inline neo f-80°
➃
INL73
●
●
●
●
●
●
●
●
●
inline neo f-40°
➄
INL74
●
●
●
●
●
●
●
●
●
inline neo f-asym
6
INL75
●
●
●
●
●
●
●
●
●
inline neo f-lvr Louver Raster UGR <19
➆
INL76
●
●
●
●
●
●
●
●
●
REMARKS
General: System lamps with
through-wiring (6x1.5mm2
max.10A). The LED transformer
is built into the lamps. LED
working life: 55,000 hrs (L90/
F10), 3SDCM. approx. 75,9W
per metre @ 350mA
Dimmable DALI (DD):
Dimmable using DALI procedure
or push-button; additional
control cable is required. kreon
inline neo is fitted with DALI
transformer. On/off operation
is possible through the P, N, E
connection
Direct and indirect light portions
can be connected up to
separate circuits.
Designing hints:
kreon inline neo direct/indirect
Suspended lamps are available
from 1123mm (1133mm incl.
end caps).
We recommend designing
inside the 281mm grid.
Colour filters for inserting
laterally into the second lens
system are available in colours
blue, yellow or orange.
Light flow per metre (approx.)
Direct portion
lm/m (350mA) @ 4000K
Indirect portion
lm/m (700mA) @ 4000K
1
LED
INLINE-70
d-diffuse
1997lm
and
3980lm
➁
LED
INLINE-71
s-forward
1703lm
and
3980lm
➂
LED
INLINE-72
s-backward
1846lm
and
3980lm
➃
LED
INLINE-73
f-80°
1820lm
and
3980lm
➄
LED
INLINE-74
f-40°
2045lm
and
3980lm
➅
LED
INLINE-75
f-asym
1747lm
and
3980lm
➆
LED
INLINE-76
f-lvr
1675lm (UGR 19)
and
3980lm
