241
240
kreon holon 80
205
Ø85
355°/90°

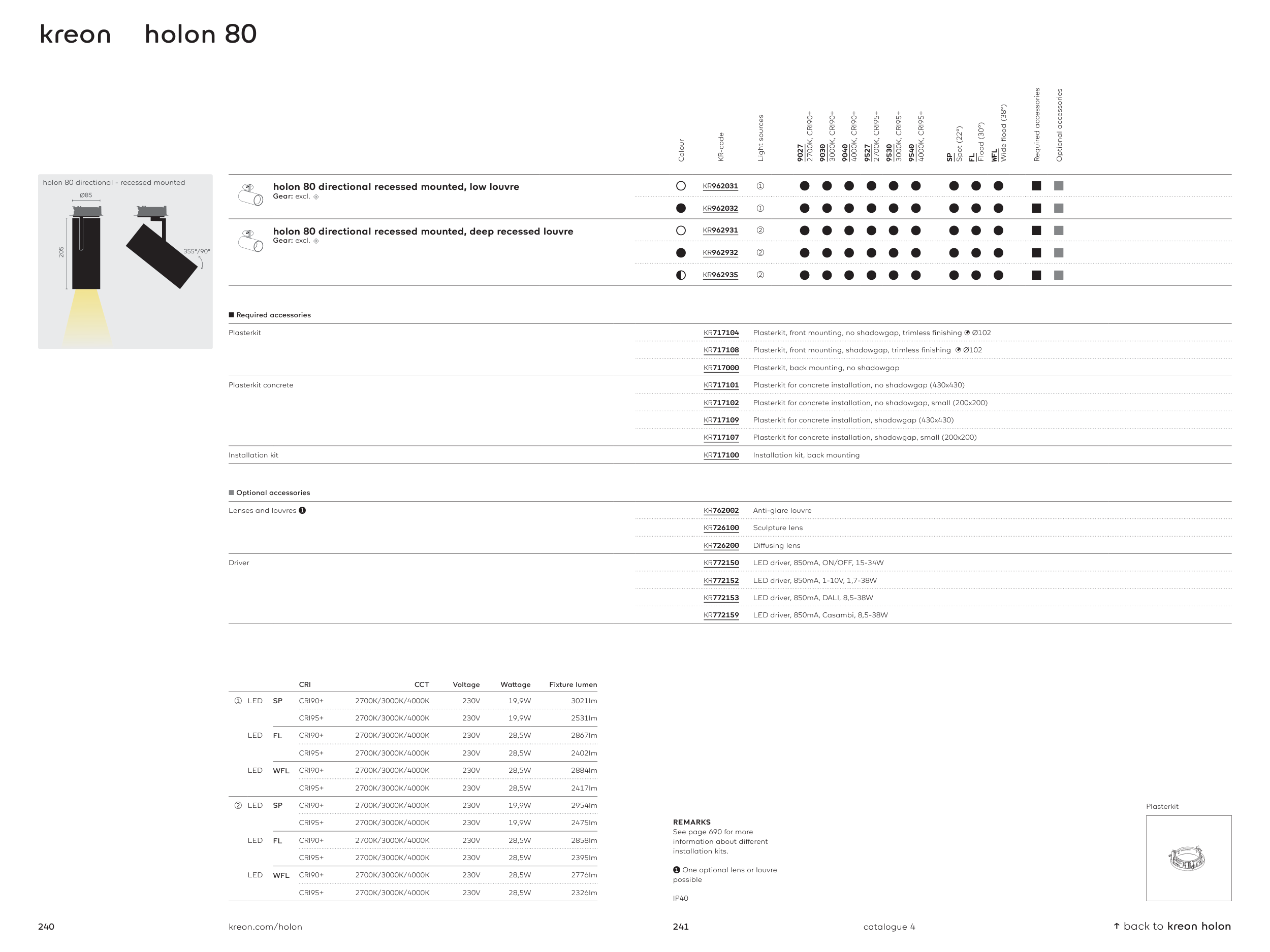

holon 80 directional - recessed mounted
↑ back to kreon holon
catalogue 4
kreon.com/holon
REMARKS
See page 690 for more
information about different
installation kits.
➊ One optional lens or louvre
possible
IP40
■ Required accessories
Plasterkit
KR717104
Plasterkit, front mounting, no shadowgap, trimless finishing 1 Ø102
KR717108
Plasterkit, front mounting, shadowgap, trimless finishing 1 Ø102
KR717000
Plasterkit, back mounting, no shadowgap
Plasterkit concrete
KR717101
Plasterkit for concrete installation, no shadowgap (430x430)
KR717102
Plasterkit for concrete installation, no shadowgap, small (200x200)
KR717109
Plasterkit for concrete installation, shadowgap (430x430)
KR717107
Plasterkit for concrete installation, shadowgap, small (200x200)
Installation kit
KR717100
Installation kit, back mounting
■ Optional accessories
Lenses and louvres ➊
KR762002
Anti-glare louvre
KR726100
Sculpture lens
KR726200
Diffusing lens
Driver
KR772150
LED driver, 850mA, ON/OFF, 15-34W
KR772152
LED driver, 850mA, 1-10V, 1,7-38W
KR772153
LED driver, 850mA, DALI, 8,5-38W
KR772159
LED driver, 850mA, Casambi, 8,5-38W
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
9527
2700K, CRI95+
9530
3000K, CRI95+
9540
4000K, CRI95+
SP
Spot (22°)
FL
Flood (30°)
WFL
Wide flood (38°)
Required accessories
Optional accessories
holon 80 directional recessed mounted, low louvre
Gear: excl. 4
○
KR962031
➀
●
●
●
●
●
●
●
●
●
■
■
●
KR962032
➀
●
●
●
●
●
●
●
●
●
■
■
holon 80 directional recessed mounted, deep recessed louvre
Gear: excl. 4
○
KR962931
➁
●
●
●
●
●
●
●
●
●
■
■
●
KR962932
➁
●
●
●
●
●
●
●
●
●
■
■
◐
KR962935
➁
●
●
●
●
●
●
●
●
●
■
■
Plasterkit
CRI
CCT
Voltage
Wattage
Fixture lumen
1 LED
SP
CRI90+
2700K/3000K/4000K
230V
19,9W
3021lm
CRI95+
2700K/3000K/4000K
230V
19,9W
2531lm
LED
FL
CRI90+
2700K/3000K/4000K
230V
28,5W
2867lm
CRI95+
2700K/3000K/4000K
230V
28,5W
2402lm
LED
WFL
CRI90+
2700K/3000K/4000K
230V
28,5W
2884lm
CRI95+
2700K/3000K/4000K
230V
28,5W
2417lm
2 LED
SP
CRI90+
2700K/3000K/4000K
230V
19,9W
2954lm
CRI95+
2700K/3000K/4000K
230V
19,9W
2475lm
LED
FL
CRI90+
2700K/3000K/4000K
230V
28,5W
2858lm
CRI95+
2700K/3000K/4000K
230V
28,5W
2395lm
LED
WFL
CRI90+
2700K/3000K/4000K
230V
28,5W
2776lm
CRI95+
2700K/3000K/4000K
230V
28,5W
2326lm
