223
222
Ø45
150
27
360°/90°
150
208
50
Ø45
360°/90°

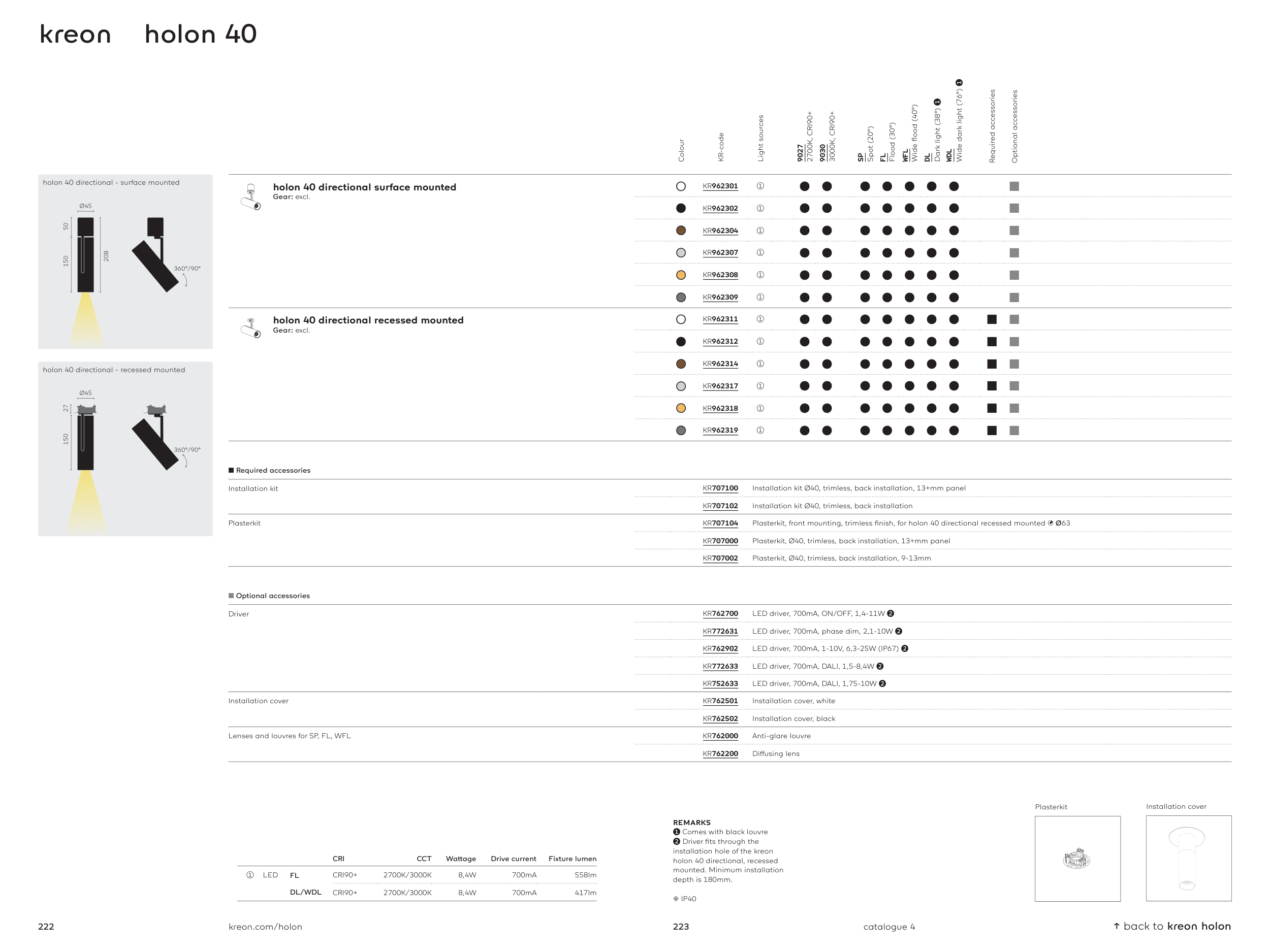

kreon holon 40
holon 40 directional - recessed mounted
holon 40 directional - surface mounted
↑ back to kreon holon
catalogue 4
kreon.com/holon
CRI
CCT
Wattage
Drive current
Fixture lumen
1
LED
FL
CRI90+
2700K/3000K
8,4W
700mA
558lm
DL/WDL
CRI90+
2700K/3000K
8,4W
700mA
417lm
REMARKS
➊ Comes with black louvre
➋ Driver fits through the
installation hole of the kreon
holon 40 directional, recessed
mounted. Minimum installation
depth is 180mm.
4 IP40
■ Required accessories
Installation kit
KR707100
Installation kit Ø40, trimless, back installation, 13+mm panel
KR707102
Installation kit Ø40, trimless, back installation
Plasterkit
KR707104
Plasterkit, front mounting, trimless finish, for holon 40 directional recessed mounted 1 Ø63
KR707000
Plasterkit, Ø40, trimless, back installation, 13+mm panel
KR707002
Plasterkit, Ø40, trimless, back installation, 9-13mm
■ Optional accessories
Driver
KR762700
LED driver, 700mA, ON/OFF, 1,4-11W ➋
KR772631
LED driver, 700mA, phase dim, 2,1-10W ➋
KR762902
LED driver, 700mA, 1-10V, 6,3-25W (IP67) ➋
KR772633
LED driver, 700mA, DALI, 1,5-8,4W ➋
KR752633
LED driver, 700mA, DALI, 1,75-10W ➋
Installation cover
KR762501
Installation cover, white
KR762502
Installation cover, black
Lenses and louvres for SP, FL, WFL
KR762000
Anti-glare louvre
KR762200
Diffusing lens
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
SP
Spot (20°)
FL
Flood (30°)
WFL
Wide flood (40°)
DL
Dark light (38°) ➊
WDL
Wide dark light (76°) ➊
Required accessories
Optional accessories
holon 40 directional surface mounted
Gear: excl.
○
KR962301
➀
●
●
●
●
●
●
●
■
●
KR962302
➀
●
●
●
●
●
●
●
■
●
KR962304
➀
●
●
●
●
●
●
●
■
●
KR962307
➀
●
●
●
●
●
●
●
■
●
KR962308
➀
●
●
●
●
●
●
●
■
●
KR962309
➀
●
●
●
●
●
●
●
■
holon 40 directional recessed mounted
Gear: excl.
○
KR962311
➀
●
●
●
●
●
●
●
■
■
●
KR962312
➀
●
●
●
●
●
●
●
■
■
●
KR962314
➀
●
●
●
●
●
●
●
■
■
●
KR962317
➀
●
●
●
●
●
●
●
■
■
●
KR962318
➀
●
●
●
●
●
●
●
■
■
●
KR962319
➀
●
●
●
●
●
●
●
■
■
Installation cover
Plasterkit
