221
220
85
16
Ø25
360°/90°

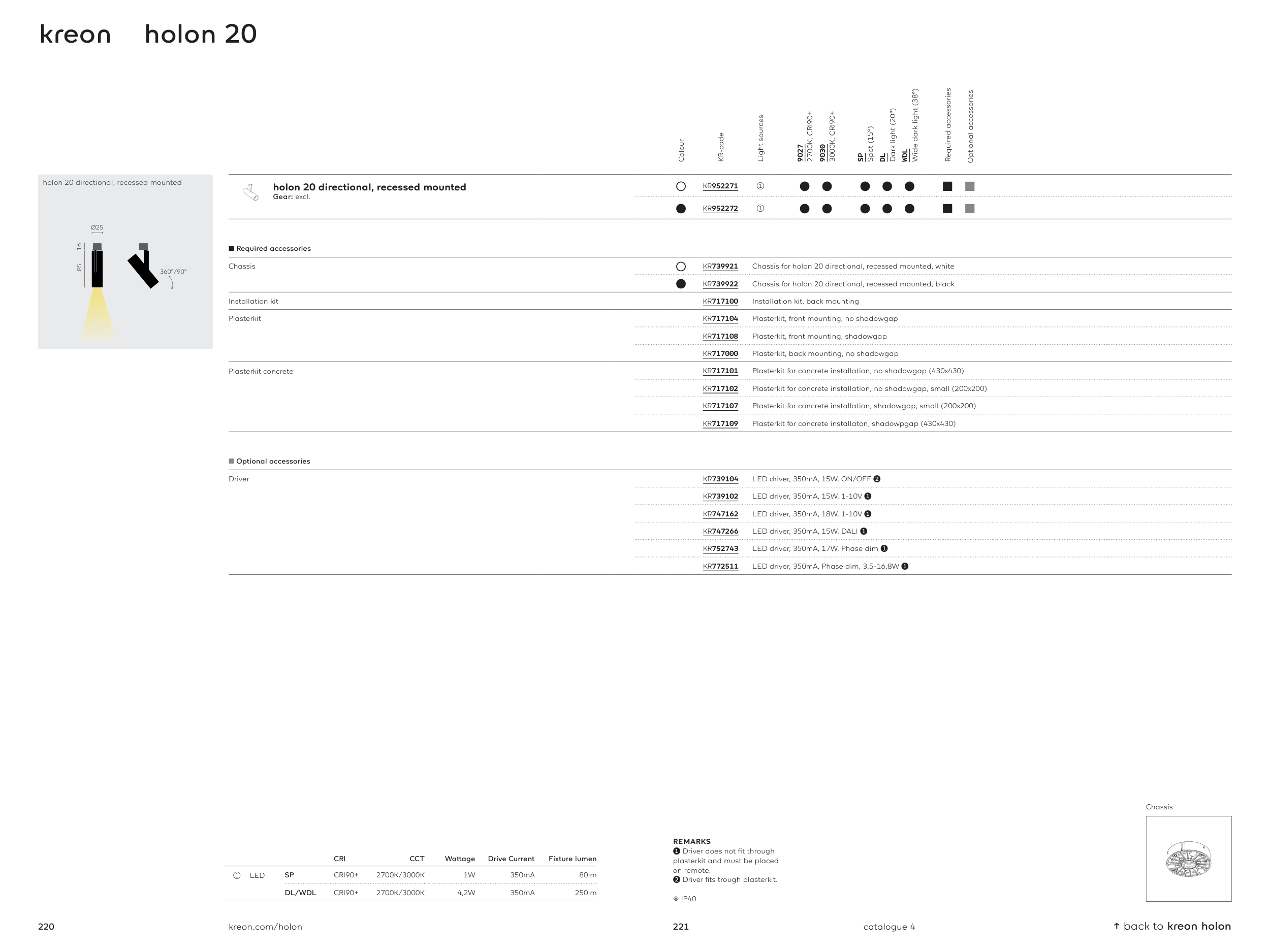

kreon holon 20
holon 20 directional, recessed mounted
↑ back to kreon holon
catalogue 4
kreon.com/holon
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
SP
Spot (15°)
DL
Dark light (20°)
WDL
Wide dark light (38°)
Required accessories
Optional accessories
holon 20 directional, recessed mounted
Gear: excl.
○
KR952271
➀
●
●
●
●
●
■
■
●
KR952272
➀
●
●
●
●
●
■
■
Chassis
■ Required accessories
Chassis
○
KR739921
Chassis for holon 20 directional, recessed mounted, white
●
KR739922
Chassis for holon 20 directional, recessed mounted, black
Installation kit
KR717100
Installation kit, back mounting
Plasterkit
KR717104
Plasterkit, front mounting, no shadowgap
KR717108
Plasterkit, front mounting, shadowgap
KR717000
Plasterkit, back mounting, no shadowgap
Plasterkit concrete
KR717101
Plasterkit for concrete installation, no shadowgap (430x430)
KR717102
Plasterkit for concrete installation, no shadowgap, small (200x200)
KR717107
Plasterkit for concrete installation, shadowgap, small (200x200)
KR717109
Plasterkit for concrete installaton, shadowpgap (430x430)
■ Optional accessories
Driver
KR739104
LED driver, 350mA, 15W, ON/OFF ➋
KR739102
LED driver, 350mA, 15W, 1-10V ➊
KR747162
LED driver, 350mA, 18W, 1-10V ➊
KR747266
LED driver, 350mA, 15W, DALI ➊
KR752743
LED driver, 350mA, 17W, Phase dim ➊
KR772511
LED driver, 350mA, Phase dim, 3,5-16,8W ➊
REMARKS
➊ Driver does not fit through
plasterkit and must be placed
on remote.
➋ Driver fits trough plasterkit.
4 IP40
CRI
CCT
Wattage
Drive Current
Fixture lumen
1
LED
SP
CRI90+
2700K/3000K
1W
350mA
80lm
DL/WDL
CRI90+
2700K/3000K
4,2W
350mA
250lm
