205
204
155
Ø51
33
75
65
85
90°
355°
155
Ø51
75
65
50
90°
355°
155
Ø51
75
65
90°
355°

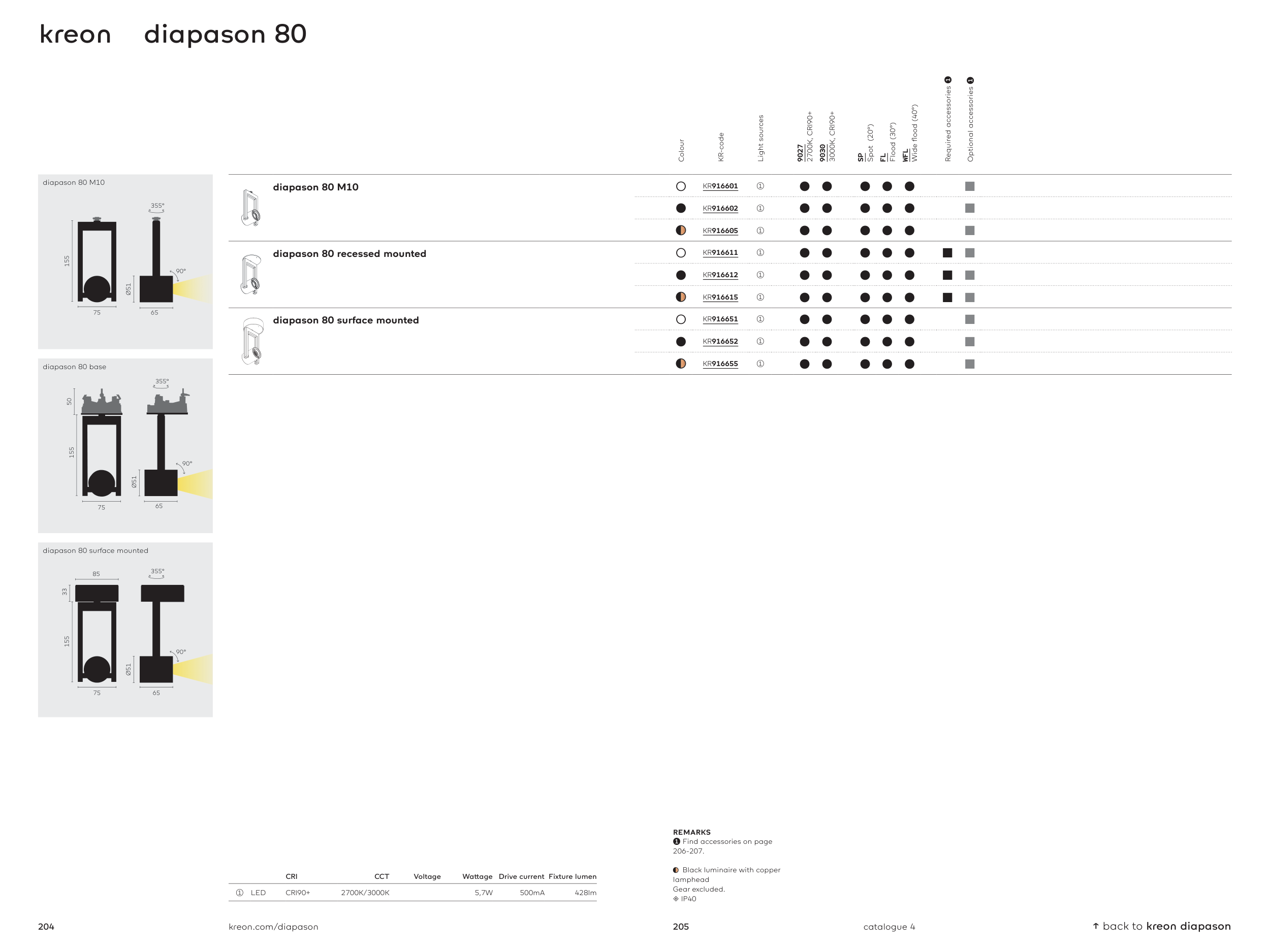

kreon diapason 80
diapason 80 base
diapason 80 M10
diapason 80 surface mounted
↑ back to kreon diapason
catalogue 4
kreon.com/diapason
CRI
CCT
Voltage
Wattage
Drive current Fixture lumen
1
LED
CRI90+
2700K/3000K
5,7W
500mA
428lm
REMARKS
➊ Find accessories on page
206-207.
Black luminaire with copper
lamphead
Gear excluded.
4 IP40
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
SP
Spot (20°)
FL
Flood (30°)
WFL
Wide flood (40°)
Required accessories ➊
Optional accessories ➊
diapason 80 M10
○
KR916601
➀
●
●
●
●
●
■
●
KR916602
➀
●
●
●
●
●
■
KR916605
➀
●
●
●
●
●
■
diapason 80 recessed mounted
○
KR916611
➀
●
●
●
●
●
■
■
●
KR916612
➀
●
●
●
●
●
■
■
KR916615
➀
●
●
●
●
●
■
■
diapason 80 surface mounted
○
KR916651
➀
●
●
●
●
●
■
●
KR916652
➀
●
●
●
●
●
■
KR916655
➀
●
●
●
●
●
■
