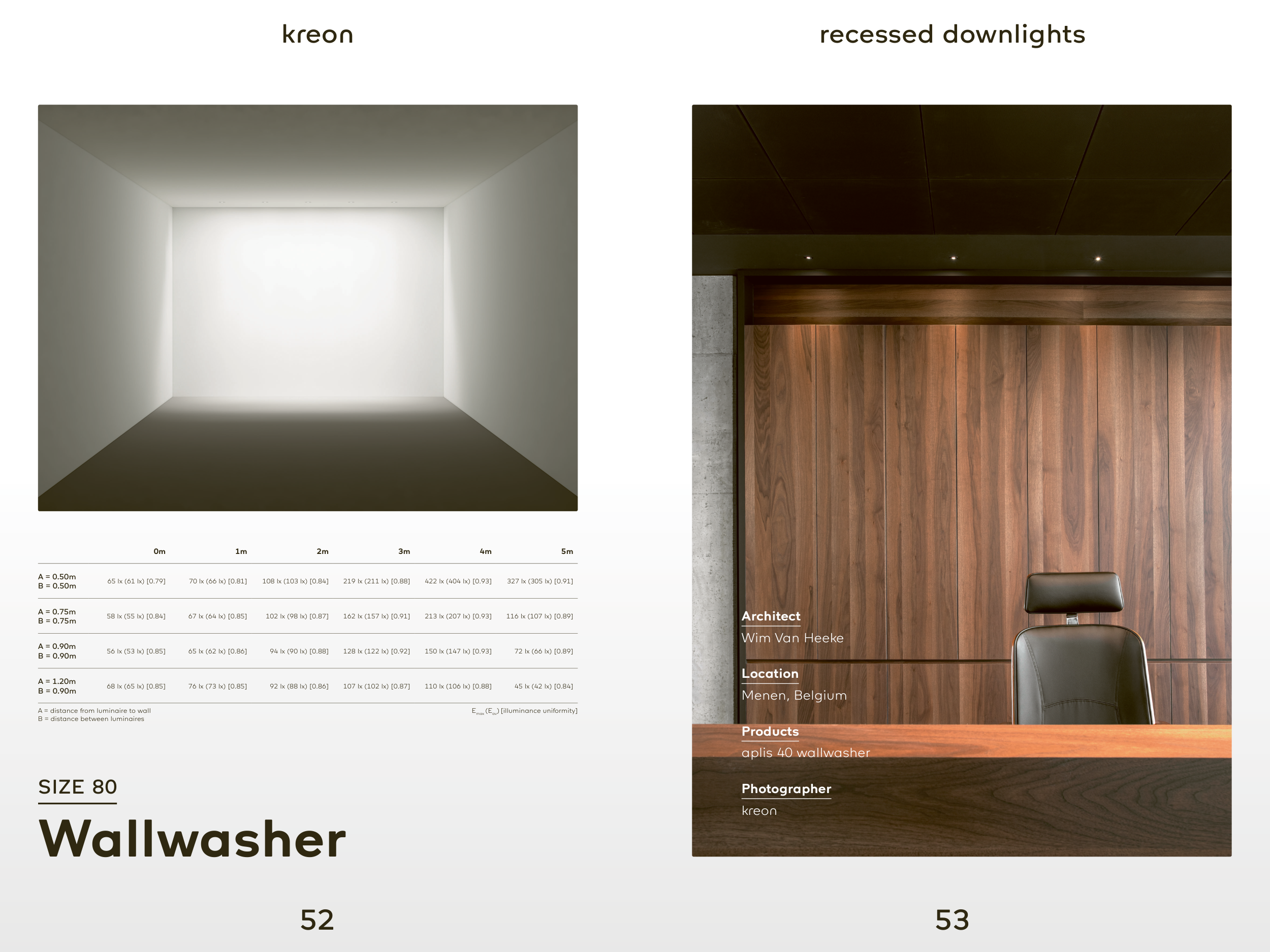

SIZE 80
Wallwasher
0m
1m
2m
3m
4m
5m
A = 0.50m
B = 0.50m
65 lx (61 lx) [0.79]
70 lx (66 lx) [0.81]
108 lx (103 lx) [0.84]
219 lx (211 lx) [0.88]
422 lx (404 lx) [0.93]
327 lx (305 lx) [0.91]
A = 0.75m
B = 0.75m
58 lx (55 lx) [0.84]
67 lx (64 lx) [0.85]
102 lx (98 lx) [0.87]
162 lx (157 lx) [0.91]
213 lx (207 lx) [0.93]
116 lx (107 lx) [0.89]
A = 0.90m
B = 0.90m
56 lx (53 lx) [0.85]
65 lx (62 lx) [0.86]
94 lx (90 lx) [0.88]
128 lx (122 lx) [0.92]
150 lx (147 lx) [0.93]
72 lx (66 lx) [0.89]
A = 1.20m
B = 0.90m
68 lx (65 lx) [0.85]
76 lx (73 lx) [0.85]
92 lx (88 lx) [0.86]
107 lx (102 lx) [0.87]
110 lx (106 lx) [0.88]
45 lx (42 lx) [0.84]
A = distance from luminaire to wall
B = distance between luminaires
Emax (Eav) [illuminance uniformity]
Architect
Wim Van Heeke
Location
Menen, Belgium
Products
aplis 40 wallwasher
Photographer
kreon
