70
69
277
65
205
Ø85
360°/90°

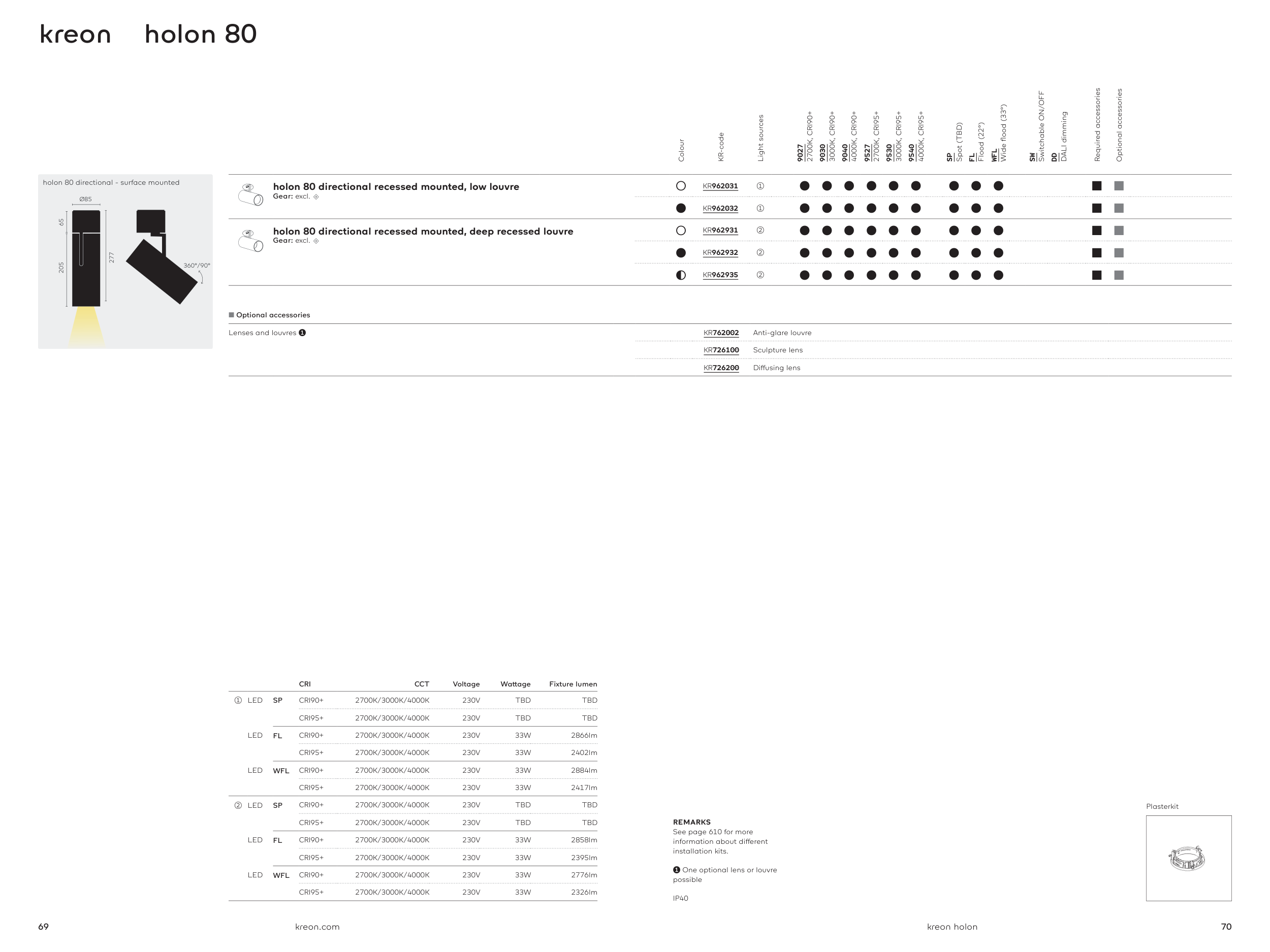

kreon holon 80
kreon holon
kreon.com
holon 80 directional - surface mounted
REMARKS
See page 610 for more
information about different
installation kits.
➊ One optional lens or louvre
possible
IP40
■ Optional accessories
Lenses and louvres ➊
KR762002
Anti-glare louvre
KR726100
Sculpture lens
KR726200
Diffusing lens
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
9040
4000K, CRI90+
9527
2700K, CRI95+
9530
3000K, CRI95+
9540
4000K, CRI95+
SP
Spot (TBD)
FL
Flood (22°)
WFL
Wide flood (33°)
SW
Switchable ON/OFF
DD
DALI dimming
Required accessories
Optional accessories
holon 80 directional recessed mounted, low louvre
Gear: excl. 4
○
KR962031
1
●
●
●
●
●
●
●
●
●
■
■
●
KR962032
1
●
●
●
●
●
●
●
●
●
■
■
holon 80 directional recessed mounted, deep recessed louvre
Gear: excl. 4
○
KR962931
➁
●
●
●
●
●
●
●
●
●
■
■
●
KR962932
➁
●
●
●
●
●
●
●
●
●
■
■
◐
KR962935
➁
●
●
●
●
●
●
●
●
●
■
■
Plasterkit
CRI
CCT
Voltage
Wattage
Fixture lumen
1 LED
SP
CRI90+
2700K/3000K/4000K
230V
TBD
TBD
CRI95+
2700K/3000K/4000K
230V
TBD
TBD
LED
FL
CRI90+
2700K/3000K/4000K
230V
33W
2866lm
CRI95+
2700K/3000K/4000K
230V
33W
2402lm
LED
WFL
CRI90+
2700K/3000K/4000K
230V
33W
2884lm
CRI95+
2700K/3000K/4000K
230V
33W
2417lm
2 LED
SP
CRI90+
2700K/3000K/4000K
230V
TBD
TBD
CRI95+
2700K/3000K/4000K
230V
TBD
TBD
LED
FL
CRI90+
2700K/3000K/4000K
230V
33W
2858lm
CRI95+
2700K/3000K/4000K
230V
33W
2395lm
LED
WFL
CRI90+
2700K/3000K/4000K
230V
33W
2776lm
CRI95+
2700K/3000K/4000K
230V
33W
2326lm
