26
kreon.com
25
kreon esprit
155
Ø85
37
Ø114
Ø80
52
Ø85
30
Ø95
surface mounted connection box
installation kit with trim
surface mounted gearbox
plasterkit

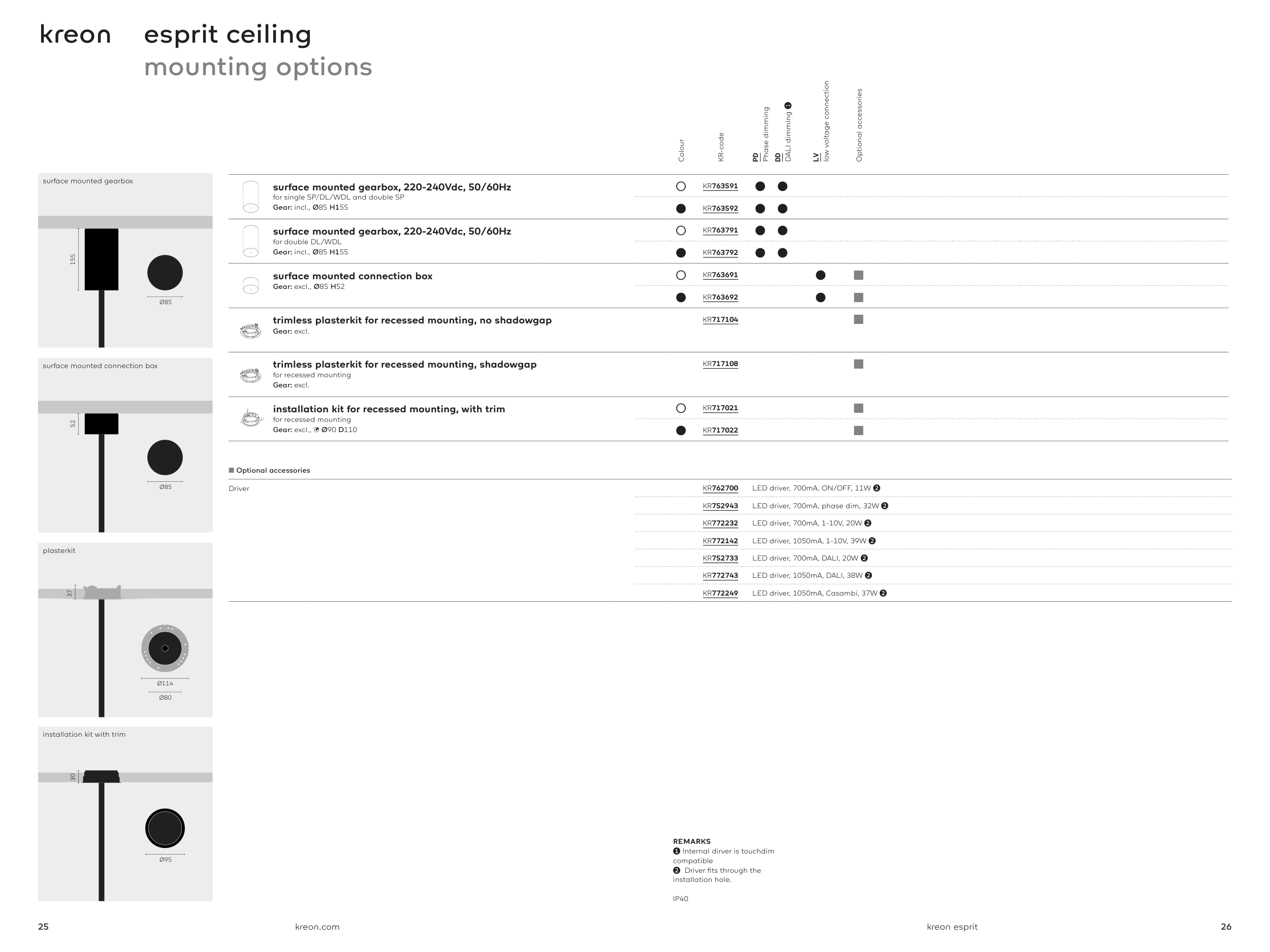

kreon esprit ceiling
mounting options
REMARKS
1 Internal dirver is touchdim
compatible
2 Driver fits through the
installation hole.
IP40
Colour
KR-code
PD
Phase dimming
DD
DALI dimming ➊
LV
low voltage connection
Optional accessories
surface mounted gearbox, 220-240Vdc, 50/60Hz
for single SP/DL/WDL and double SP
Gear: incl., Ø85 H155
○
kr763591
●
●
●
kr763592
●
●
surface mounted gearbox, 220-240Vdc, 50/60Hz
for double DL/WDL
Gear: incl., Ø85 H155
○
kr763791
●
●
●
kr763792
●
●
surface mounted connection box
Gear: excl., Ø85 H52
○
kr763691
●
■
●
kr763692
●
■
trimless plasterkit for recessed mounting, no shadowgap
Gear: excl.
kr717104
■
trimless plasterkit for recessed mounting, shadowgap
for recessed mounting
Gear: excl.
kr717108
■
installation kit for recessed mounting, with trim
for recessed mounting
Gear: excl., 1 Ø90 D110
○
kr717021
■
●
kr717022
■
■ Optional accessories
Driver
kr762700
LED driver, 700mA, ON/OFF, 11W 2
kr752943
LED driver, 700mA, phase dim, 32W 2
kr772232
LED driver, 700mA, 1-10V, 20W 2
kr772142
LED driver, 1050mA, 1-10V, 39W 2
kr752733
LED driver, 700mA, DALI, 20W 2
kr772743
LED driver, 1050mA, DALI, 38W 2
kr772249
LED driver, 1050mA, Casambi, 37W 2
