kreon esprit
399
250
Ø28
355°/90°
666
250
Ø28
355°/90°
355°/90°
esprit double ceiling
esprit single ceiling

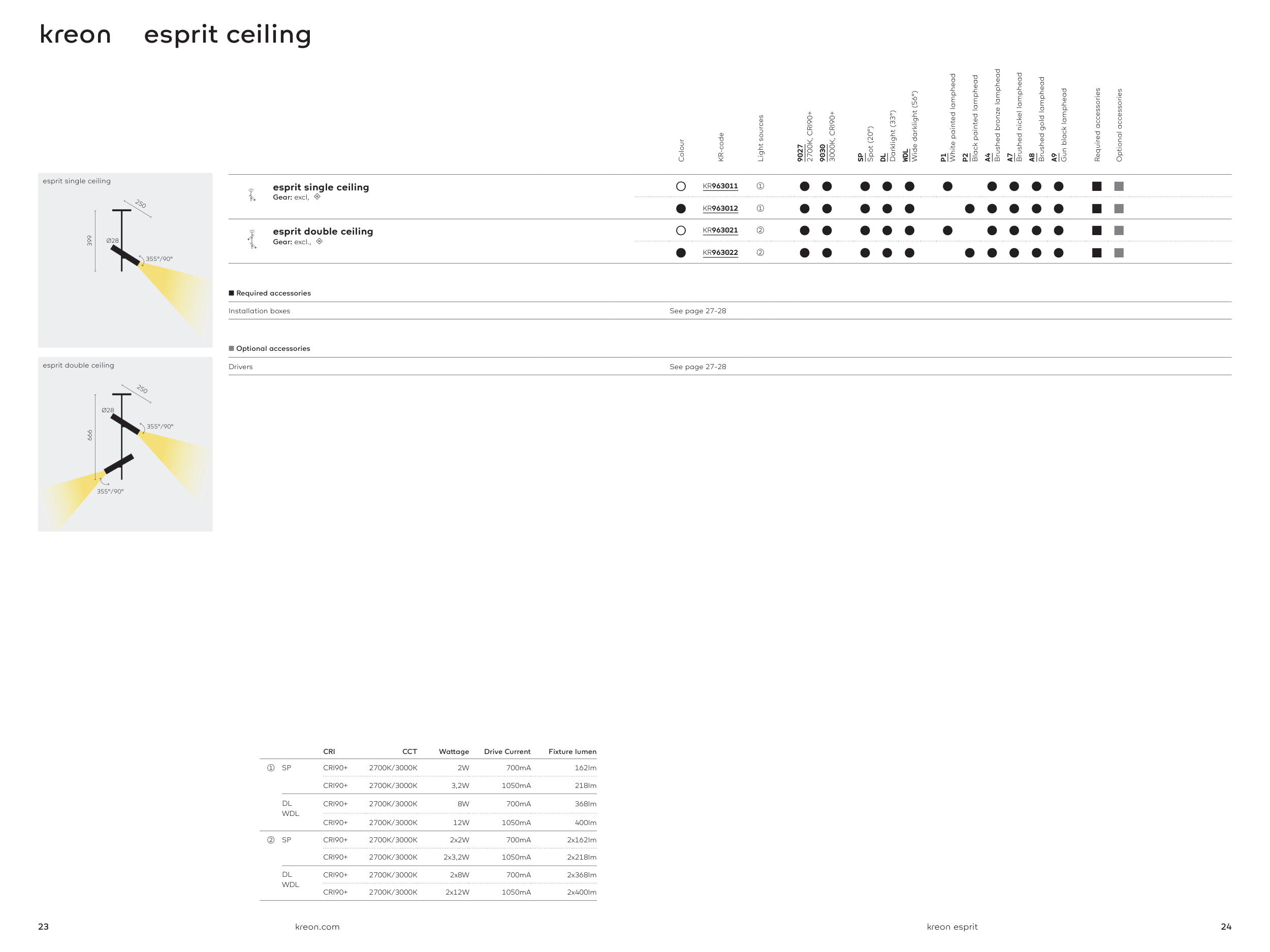

kreon esprit ceiling
Colour
KR-code
Light sources
9027
2700K, CRI90+
9030
3000K, CRI90+
SP
Spot (20°)
DL
Darklight (33°)
WDL
Wide darklight (56°)
P1
White painted lamphead
P2
Black painted lamphead
A4
Brushed bronze lamphead
A7
Brushed nickel lamphead
A8
Brushed gold lamphead
A9
Gun black lamphead
Required accessories
Optional accessories
esprit single ceiling
Gear: excl, 4
○
kr963011
➀
●
●
●
●
●
●
●
●
●
●
■
■
●
kr963012
➀
●
●
●
●
●
●
●
●
●
●
■
■
esprit double ceiling
Gear: excl., 4
○
kr963021
2
●
●
●
●
●
●
●
●
●
●
■
■
●
kr963022
2
●
●
●
●
●
●
●
●
●
●
■
■
■ Required accessories
Installation boxes
See page 27-28
■ Optional accessories
Drivers
See page 27-28
CRI
CCT
Wattage
Drive Current
Fixture lumen
➀
SP
CRI90+
2700K/3000K
2W
700mA
162lm
CRI90+
2700K/3000K
3,2W
1050mA
218lm
DL
WDL
CRI90+
2700K/3000K
8W
700mA
368lm
CRI90+
2700K/3000K
12W
1050mA
400lm
2
SP
CRI90+
2700K/3000K
2x2W
700mA
2x162lm
CRI90+
2700K/3000K
2x3,2W
1050mA
2x218lm
DL
WDL
CRI90+
2700K/3000K
2x8W
700mA
2x368lm
CRI90+
2700K/3000K
2x12W
1050mA
2x400lm
