1 1 5
Technical drawing
COLORS (∆)
REFLECTOR
LIGHT SOURCE
PRODUCT MATERIAL
MODULE LIFETIME
DRIVER
3 = RAL 9003 white
Aluminium white
Philips LED module
Steel and aluminium
Approx. 50.000 hours
Including driver
5 = RAL 9005 black
6 = RAL 9006 alu

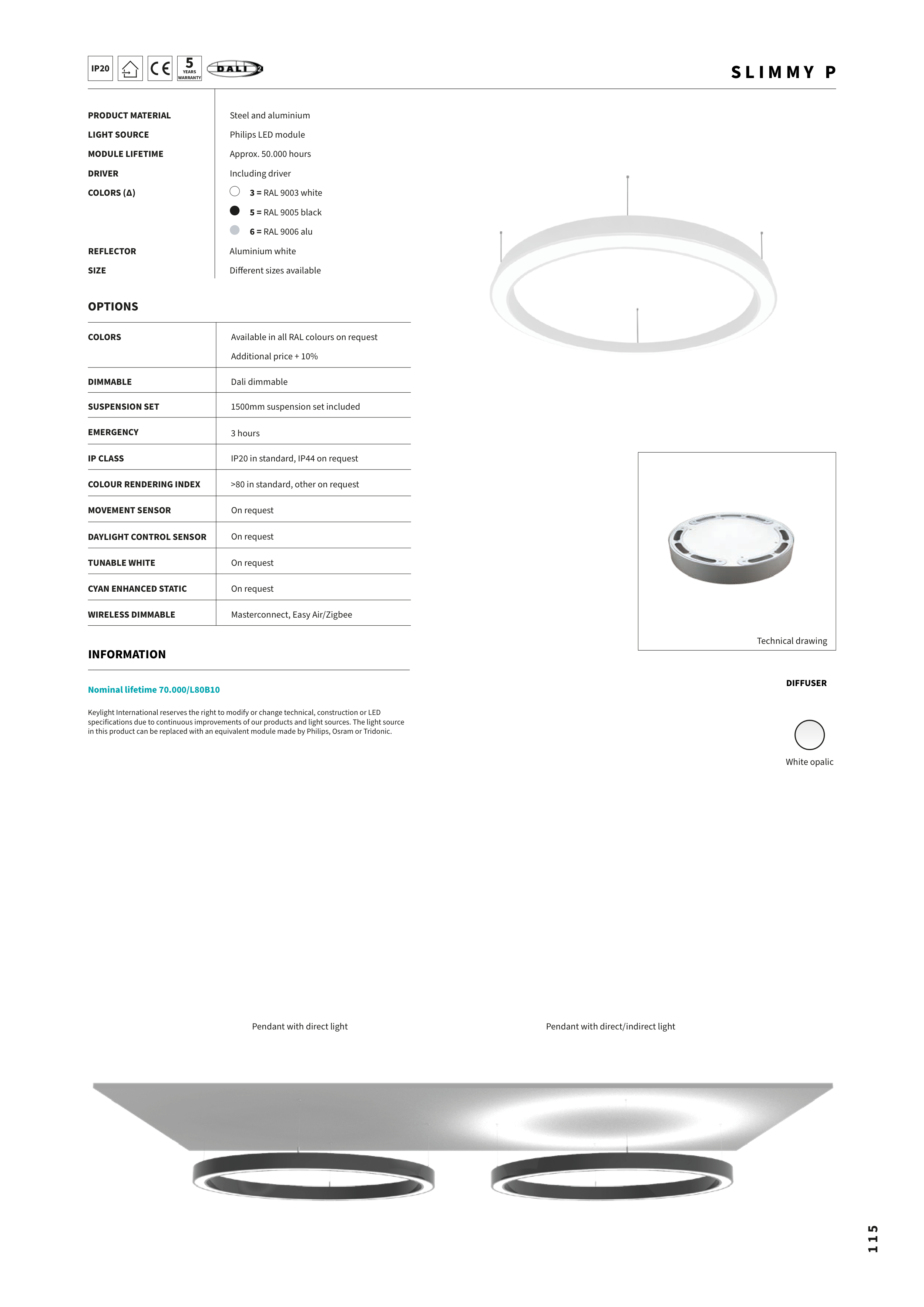

S L I M M Y P
SIZE
Different sizes available
Pendant with direct/indirect light
Pendant with direct light
INFORMATION
Keylight International reserves the right to modify or change technical, construction or LED
specifications due to continuous improvements of our products and light sources. The light source
in this product can be replaced with an equivalent module made by Philips, Osram or Tridonic.
IP20
5
YEARS
WARRANTY
White opalic
DIFFUSER
Nominal lifetime 70.000/L80B10
OPTIONS
COLORS
Available in all RAL colours on request
Additional price + 10%
DAYLIGHT CONTROL SENSOR
TUNABLE WHITE
CYAN ENHANCED STATIC
MOVEMENT SENSOR
On request
On request
On request
On request
IP CLASS
COLOUR RENDERING INDEX
IP20 in standard, IP44 on request
>80 in standard, other on request
DIMMABLE
EMERGENCY
1500mm suspension set included
3 hours
Dali dimmable
SUSPENSION SET
WIRELESS DIMMABLE
Masterconnect, Easy Air/Zigbee
