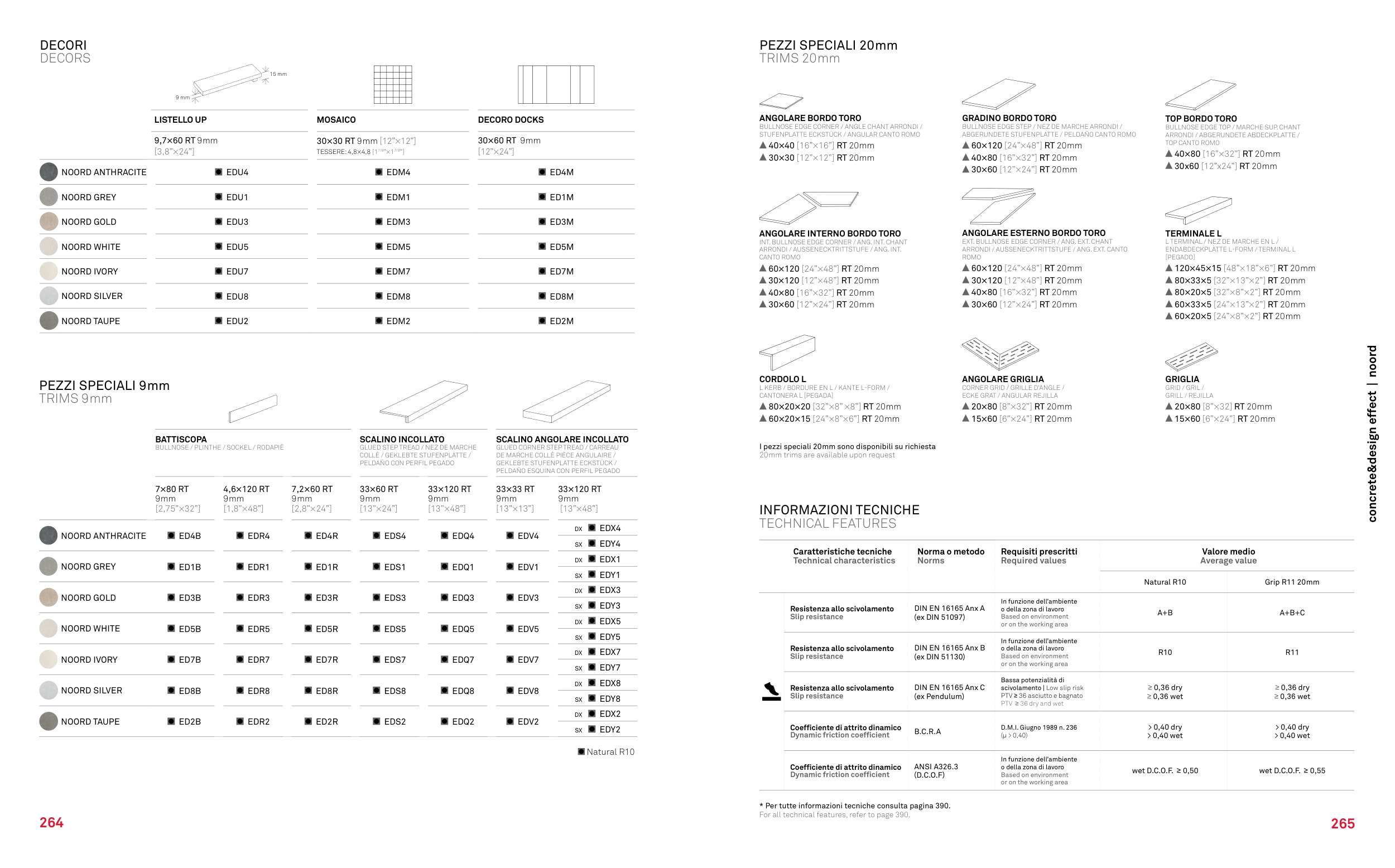

BATTISCOPA
BULLNOSE / PLINTHE / SOCKEL / RODAPIÉ
SCALINO INCOLLATO
GLUED STEP TREAD / NEZ DE MARCHE
COLLÉ / GEKLEBTE STUFENPLATTE /
PELDAÑO CON PERFIL PEGADO
SCALINO ANGOLARE INCOLLATO
GLUED CORNER STEP TREAD / CARREAU
DE MARCHE COLLÉ PIÈCE ANGULAIRE /
GEKLEBTE STUFENPLATTE ECKSTÜCK /
PELDAÑO ESQUINA CON PERFIL PEGADO
7×80 RT
9mm
[2,75”×32”]
4,6×120 RT
9mm
[1,8”×48”]
7,2×60 RT
9mm
[2,8”×24”]
33×60 RT
9mm
[13”×24”]
33×120 RT
9mm
[13”×48”]
33×33 RT
9mm
[13”×13”]
33×120 RT
9mm
[13”×48”]
NOORD ANTHRACITE
ED4B
EDR4
ED4R
EDS4
EDQ4
EDV4
DX
EDX4
SX
EDY4
NOORD GREY
ED1B
EDR1
ED1R
EDS1
EDQ1
EDV1
DX
EDX1
SX
EDY1
NOORD GOLD
ED3B
EDR3
ED3R
EDS3
EDQ3
EDV3
DX
EDX3
SX
EDY3
NOORD WHITE
ED5B
EDR5
ED5R
EDS5
EDQ5
EDV5
DX
EDX5
SX
EDY5
NOORD IVORY
ED7B
EDR7
ED7R
EDS7
EDQ7
EDV7
DX
EDX7
SX
EDY7
NOORD SILVER
ED8B
EDR8
ED8R
EDS8
EDQ8
EDV8
DX
EDX8
SX
EDY8
NOORD TAUPE
ED2B
EDR2
ED2R
EDS2
EDQ2
EDV2
DX
EDX2
SX
EDY2
9 mm
15 mm
LISTELLO UP
MOSAICO
DECORO DOCKS
9,7×60 RT 9mm
[3,8”×24”]
30×30 RT 9mm [12”×12”]
TESSERE: 4,8×4,8 [17/8”×17/8”]
30×60 RT 9mm
[12”×24”]
NOORD ANTHRACITE
EDU4
EDM4
ED4M
NOORD GREY
EDU1
EDM1
ED1M
NOORD GOLD
EDU3
EDM3
ED3M
NOORD WHITE
EDU5
EDM5
ED5M
NOORD IVORY
EDU7
EDM7
ED7M
NOORD SILVER
EDU8
EDM8
ED8M
NOORD TAUPE
EDU2
EDM2
ED2M
DECORI
DECORS
Natural R10
PEZZI SPECIALI 9mm
TRIMS 9mm
concrete&design effect | noord
PEZZI SPECIALI 20mm
TRIMS 20mm
ANGOLARE GRIGLIA
CORNER GRID / GRILLE D’ANGLE /
ECKE GRAT / ANGULAR REJILLA
20×80 [8”×32”] RT 20mm
15×60 [6”×24”] RT 20mm
GRIGLIA
GRID / GRIL /
GRILL / REJILLA
20×80 [8”×32] RT 20mm
15×60 [6”×24”] RT 20mm
ANGOLARE BORDO TORO
BULLNOSE EDGE CORNER / ANGLE CHANT ARRONDI /
STUFENPLATTE ECKSTÜCK / ANGULAR CANTO ROMO
40×40 [16”×16”] RT 20mm
30×30 [12”×12”] RT 20mm
GRADINO BORDO TORO
BULLNOSE EDGE STEP / NEZ DE MARCHE ARRONDI /
ABGERUNDETE STUFENPLATTE / PELDAÑO CANTO ROMO
60×120 [24”×48”] RT 20mm
40×80 [16”×32”] RT 20mm
30×60 [12”×24”] RT 20mm
TOP BORDO TORO
BULLNOSE EDGE TOP / MARCHE SUP. CHANT
ARRONDI / ABGERUNDETE ABDECKPLATTE /
TOP CANTO ROMO
40×80 [16”×32”] RT 20mm
30x60 [12”x24”] RT 20mm
ANGOLARE ESTERNO BORDO TORO
EXT. BULLNOSE EDGE CORNER / ANG. EXT. CHANT
ARRONDI / AUSSENECKTRITTSTUFE / ANG. EXT. CANTO
ROMO
60×120 [24”×48”] RT 20mm
30×120 [12”×48”] RT 20mm
40×80 [16”×32”] RT 20mm
30×60 [12”×24”] RT 20mm
ANGOLARE INTERNO BORDO TORO
INT. BULLNOSE EDGE CORNER / ANG. INT. CHANT
ARRONDI / AUSSENECKTRITTSTUFE / ANG. INT.
CANTO ROMO
60×120 [24”×48”] RT 20mm
30×120 [12”×48”] RT 20mm
40×80 [16”×32”] RT 20mm
30×60 [12”×24”] RT 20mm
CORDOLO L
L KERB / BORDURE EN L / KANTE L-FORM /
CANTONERA L [PEGADA]
80×20×20 [32”×8” ×8”] RT 20mm
60×20×15 [24”×8”×6”] RT 20mm
TERMINALE L
L TERMINAL / NEZ DE MARCHE EN L /
ENDABDECKPLATTE L-FORM / TERMINAL L
[PEGADO]
120×45×15 [48”×18”×6”] RT 20mm
80×33×5 [32”×13”×2”] RT 20mm
80×20×5 [32”×8”×2”] RT 20mm
60×33×5 [24”×13”×2”] RT 20mm
60×20×5 [24”×8”×2”] RT 20mm
I pezzi speciali 20mm sono disponibili su richiesta
20mm trims are available upon request
Caratteristiche tecniche
Technical characteristics
Norma o metodo
Norms
Requisiti prescritti
Required values
Valore medio
Average value
Natural R10
Grip R11 20mm
Resistenza allo scivolamento
Slip resistance
DIN EN 16165 Anx A
(ex DIN 51097)
In funzione dell’ambiente
o della zona di lavoro
Based on environment
or on the working area
A+B
A+B+C
Resistenza allo scivolamento
Slip resistance
DIN EN 16165 Anx B
(ex DIN 51130)
In funzione dell’ambiente
o della zona di lavoro
Based on environment
or on the working area
R10
R11
Resistenza allo scivolamento
Slip resistance
DIN EN 16165 Anx C
(ex Pendulum)
Bassa potenzialità di
scivolamento | Low slip risk
PTV�� 36 asciutto e bagnato
PTV ��36 dry and wet
� 0,36 dry
� 0,36 wet
� 0,36 dry
� 0,36 wet
Coefficiente di attrito dinamico
Dynamic friction coefficient
B.C.R.A
D.M.I. Giugno 1989 n. 236
(μ > 0,40)
> 0,40 dry
> 0,40 wet
> 0,40 dry
> 0,40 wet
Coefficiente di attrito dinamico
Dynamic friction coefficient
ANSI A326.3
(D.C.O.F)
In funzione dell’ambiente
o della zona di lavoro
Based on environment
or on the working area
wet D.C.O.F. ��0,50
wet D.C.O.F. ��0,55
INFORMAZIONI TECNICHE
TECHNICAL FEATURES
* Per tutte informazioni tecniche consulta pagina 390.
For all technical features, refer to page 390.
