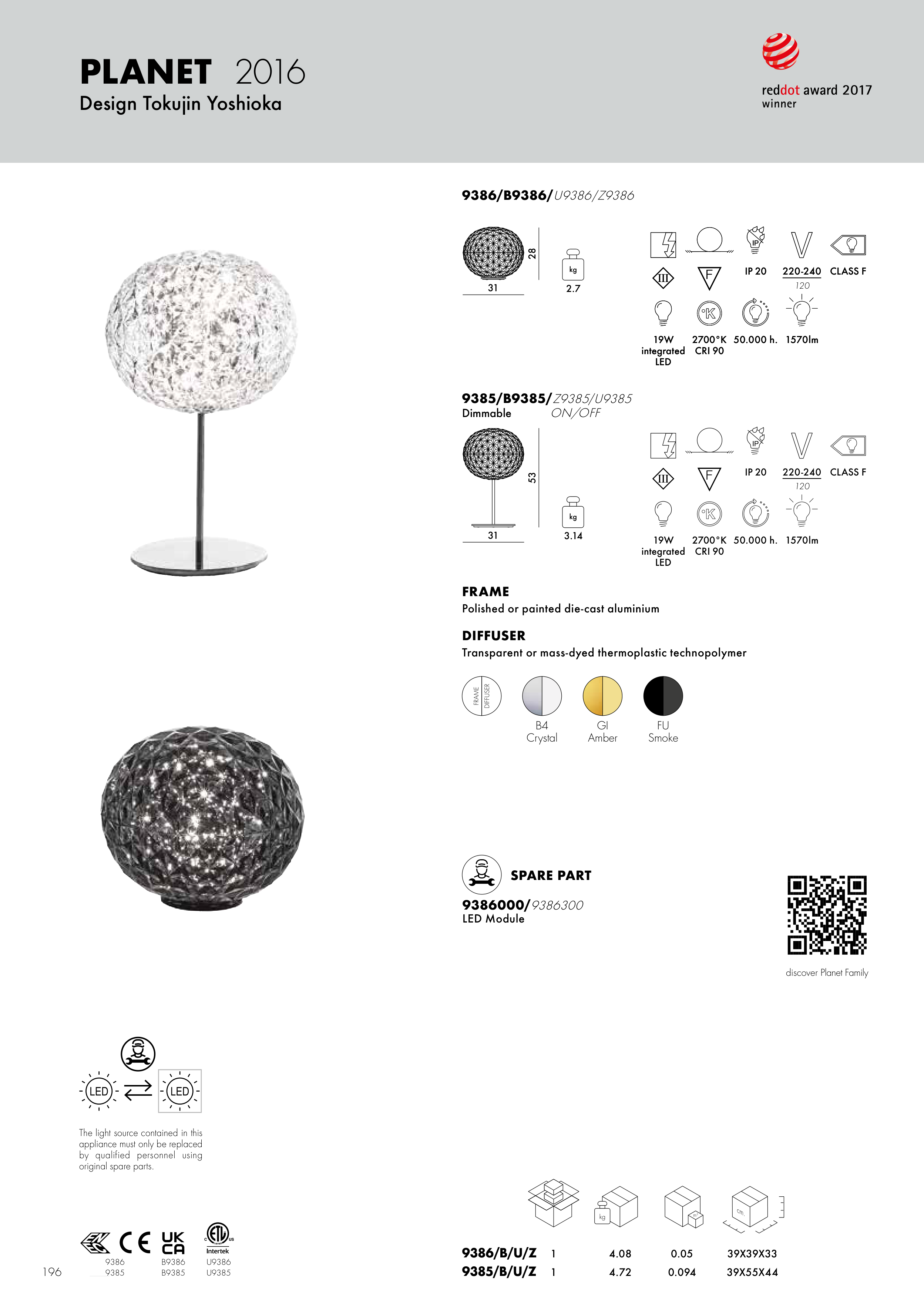

196
PLANET 2016
Design Tokujin Yoshioka
discover Planet Family
kg
2.7
28
31
kg
3.14
53
31
IP 20
220-240
CLASS F
•K
DIMMER
19W
integrated
LED
2700°K
CRI 90
50.000 h.
1570lm
IP 20
220-240
CLASS F
•K
19W
integrated
LED
2700°K
CRI 90
50.000 h.
1570lm
B4
Crystal
FU
Smoke
FRAME
Polished or painted die-cast aluminium
DIFFUSER
Transparent or mass-dyed thermoplastic technopolymer
FRAME
DIFFUSER
9386/B9386/U9386/Z9386
9385/B9385/Z9385/U9385
Dimmable ON/OFF
m3
kg
cm.
9386/B/U/Z
1
4.08
0.05
39X39X33
9385/B/U/Z
1
4.72
0.094
39X55X44
GI
Amber
IP 20
220-240
120
CLASS F
•K
19W
integrated
LED
2700°K
CRI 90
50.000 h.
1570lm
IP 20
220-240
120
CLASS F
•K
19W
integrated
LED
2700°K
CRI 90
50.000 h.
1570lm
The light source contained in this
appliance must only be replaced
by qualified personnel using
original spare parts.
U9386
U9385
B9386
B9385
9386
9385
9386000/9386300
LED Module
SPARE PART
