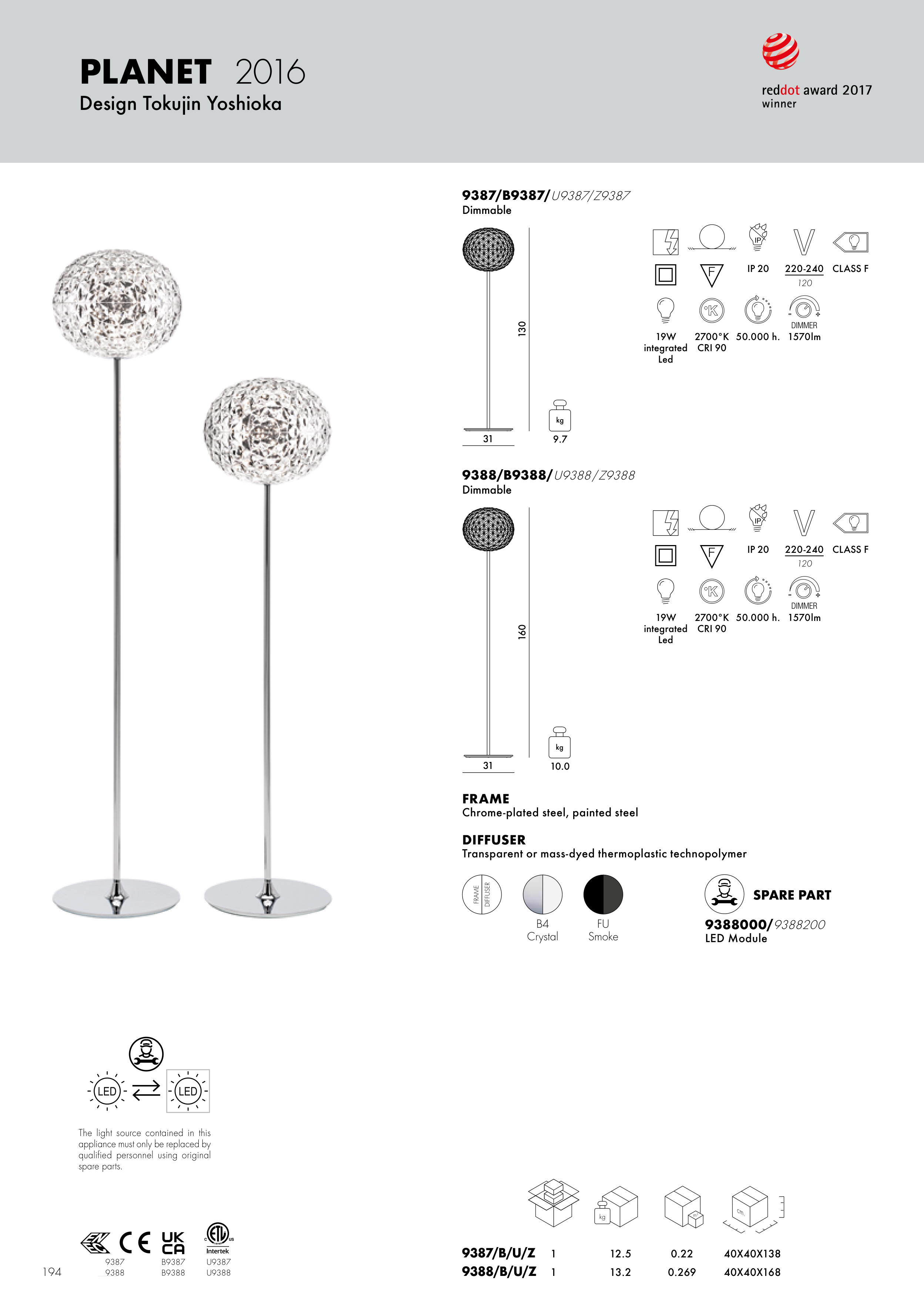

PLANET 2016
Design Tokujin Yoshioka
194
kg
9.7
130
31
kg
10.0
160
31
IP 20
220-240
CLASS F
•K
DIMMER
19W
integrated
Led
2700°K
CRI 90
50.000 h.
1570lm
IP 20
220-240
CLASS F
•K
DIMMER
19W
integrated
Led
2700°K
CRI 90
50.000 h.
1570lm
B4
Crystal
FU
Smoke
FRAME
Chrome-plated steel, painted steel
DIFFUSER
Transparent or mass-dyed thermoplastic technopolymer
FRAME
DIFFUSER
9387/B9387/U9387/Z9387
Dimmable
9388/B9388/U9388/Z9388
Dimmable
m3
kg
cm.
9387/B/U/Z
1
12.5
0.22
40X40X138
9388/B/U/Z
1
13.2
0.269
40X40X168
U9387
U9388
B9387
B9388
9387
9388
IP 20
220-240
120
CLASS F
•K
DIMMER
19W
integrated
Led
2700°K
CRI 90
50.000 h.
1570lm
IP 20
220-240
120
CLASS F
•K
DIMMER
19W
integrated
Led
2700°K
CRI 90
50.000 h.
1570lm
The light source contained in this
appliance must only be replaced by
qualified personnel using original
spare parts.
9388000/9388200
LED Module
SPARE PART
