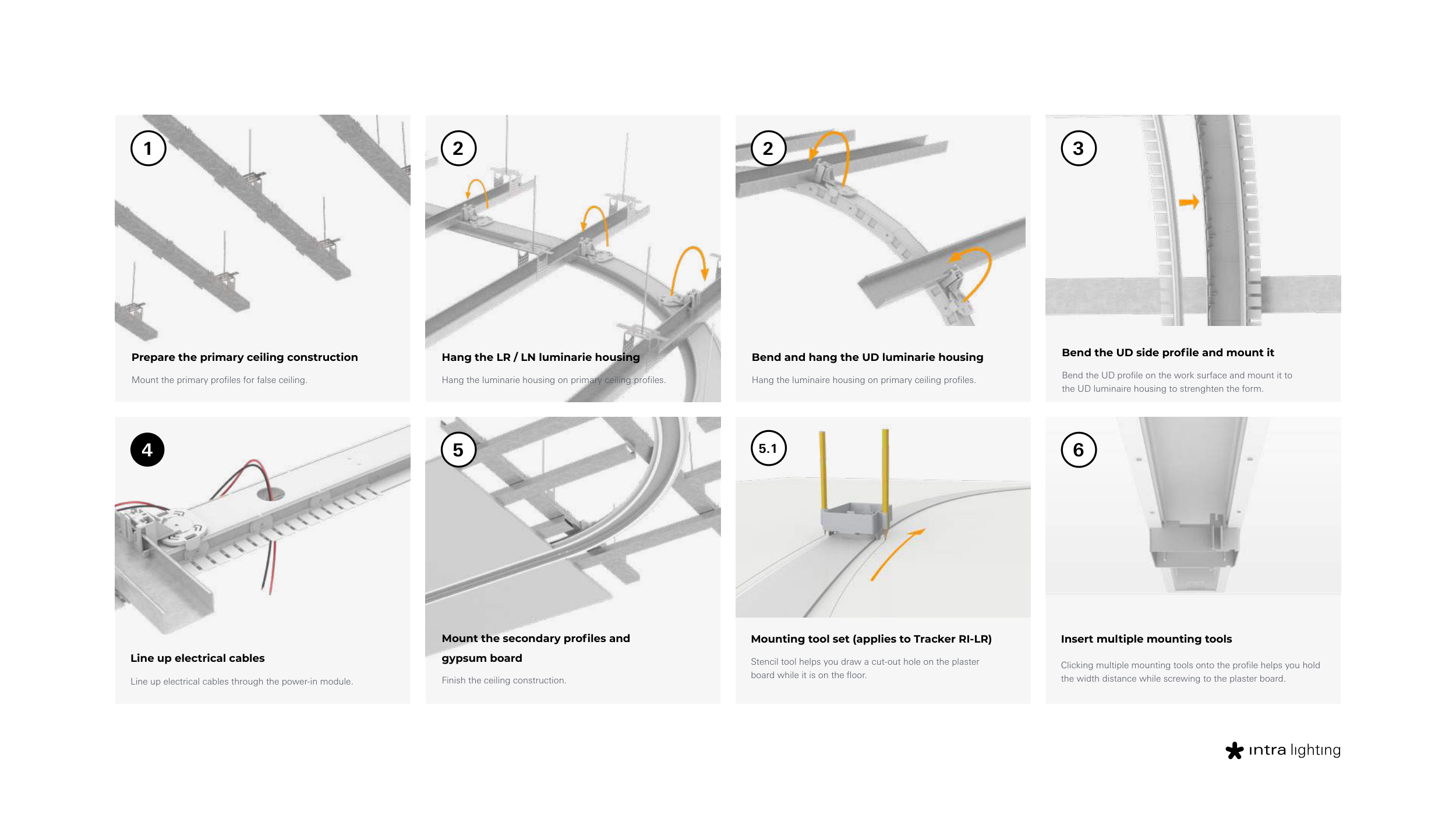

Prepare the primary ceiling construction
Hang the LR / LN luminarie housing
Mount the primary profiles for false ceiling.
Hang the luminarie housing on primary ceiling profiles.
Bend and hang the UD luminarie housing
Hang the luminaire housing on primary ceiling profiles.
2
3
Bend the UD side profile and mount it
Bend the UD profile on the work surface and mount it to
the UD luminaire housing to strenghten the form.
5
Mount the secondary profiles and
gypsum board
Finish the ceiling construction.
4
Line up electrical cables
Line up electrical cables through the power-in module.
Clicking multiple mounting tools onto the profile helps you hold
the width distance while screwing to the plaster board.
Insert multiple mounting tools
Mounting tool set (applies to Tracker RI-LR)
Stencil tool helps you draw a cut-out hole on the plaster
board while it is on the floor.
