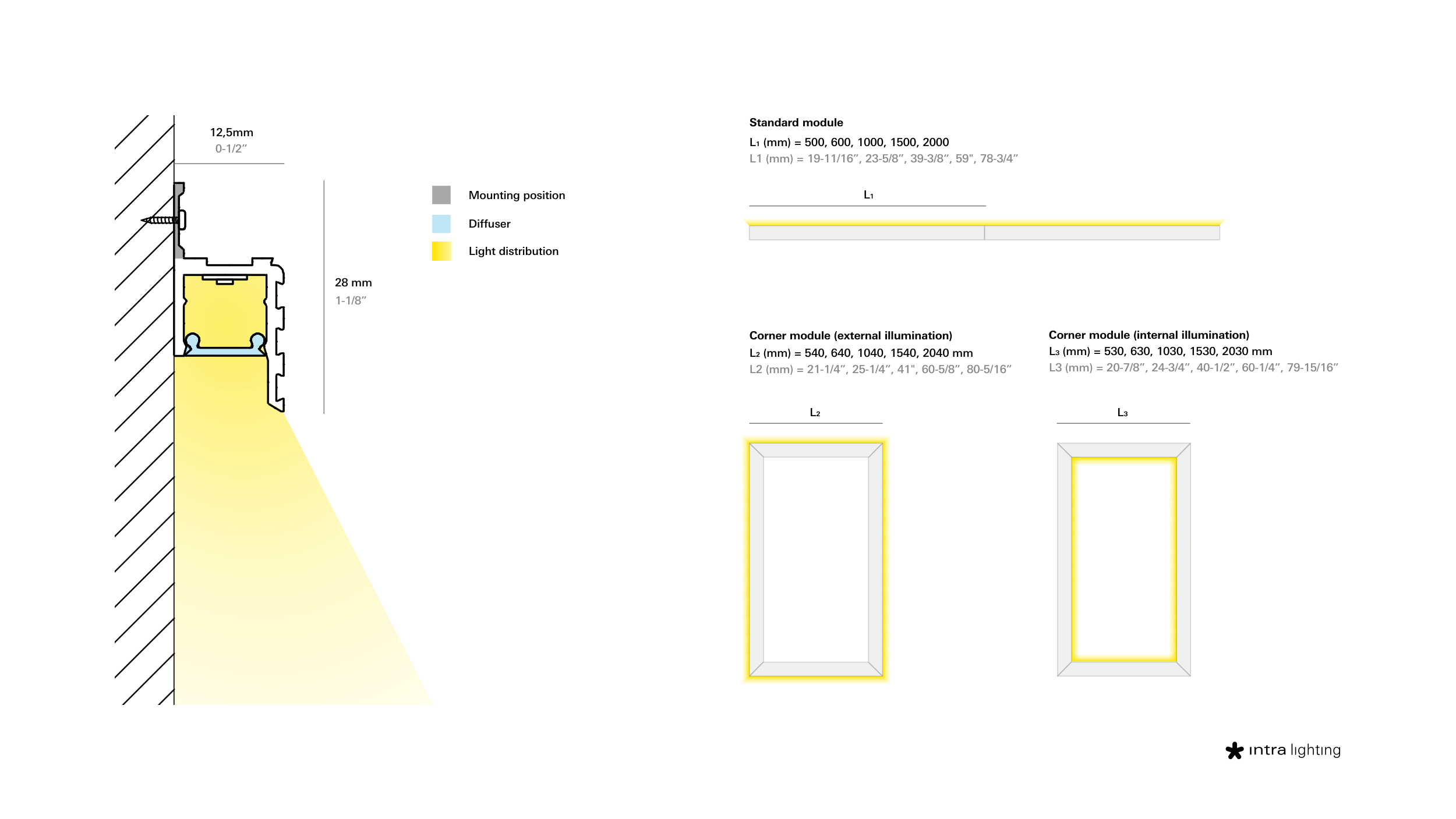

L1 (mm) = 500, 600, 1000, 1500, 2000
L1
1-1/8”
28 mm
12,5mm
0-1/2”
L2
Mounting position
Diffuser
Light distribution
L3
Standard module
L2 (mm) = 540, 640, 1040, 1540, 2040 mm
Corner module (external illumination)
L3 (mm) = 530, 630, 1030, 1530, 2030 mm
L1 (mm) = 19-11/16”, 23-5/8”, 39-3/8“, 59", 78-3/4”
L2 (mm) = 21-1/4”, 25-1/4”, 41", 60-5/8”, 80-5/16”
L3 (mm) = 20-7/8”, 24-3/4”, 40-1/2”, 60-1/4”, 79-15/16”
Corner module (internal illumination)
L1 (mm) = 500, 600, 1000, 1500, 2000
L1
1-1/8”
28 mm
12,5mm
0-1/2”
L2
Mounting position
Diffuser
Light distribution
L3
Standard module
L2 (mm) = 540, 640, 1040, 1540, 2040 mm
Corner module (external illumination)
L3 (mm) = 530, 630, 1030, 1530, 2030 mm
L1 (mm) = 19-11/16”, 23-5/8”, 39-3/8“, 59", 78-3/4”
L2 (mm) = 21-1/4”, 25-1/4”, 41", 60-5/8”, 80-5/16”
L3 (mm) = 20-7/8”, 24-3/4”, 40-1/2”, 60-1/4”, 79-15/16”
Corner module (internal illumination)
