Create your perfect light composition with a
variety of standard light modules that give
you freedom to combine them together in a
different way.
Note that the linear module can be shortended
on the spot to reach the desired dimension of
your luminaire.

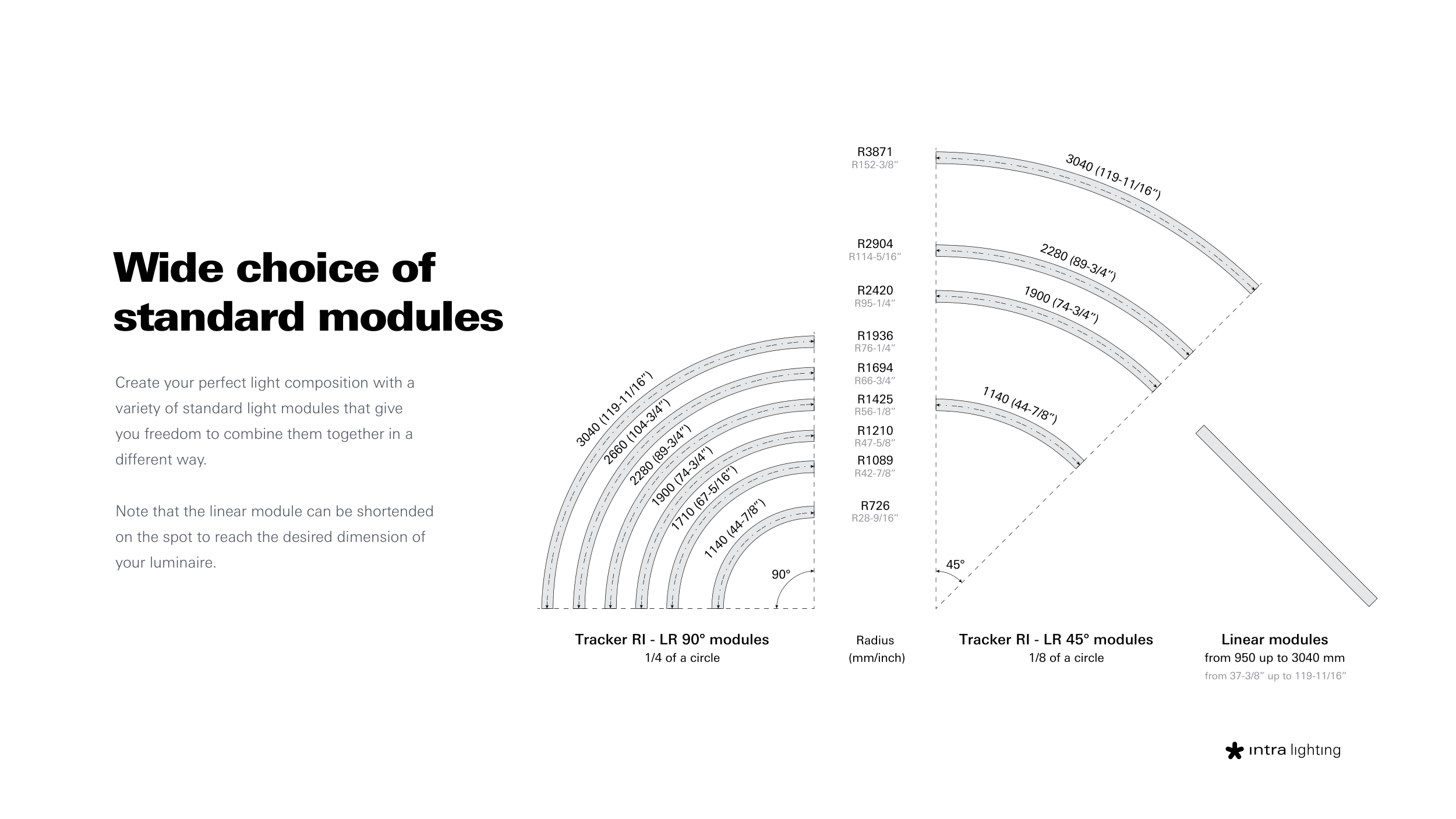

Wide choice of
standard modules
90°
1140 (44-7/8”)
1710 (67-5/16”)
1900 (74-3/4”)
2280 (89-3/4”)
2660 (104-3/4”)
3040 (119-11/16”)
Tracker RI - LR 90° modules
R726
Radius
1/4 of a circle
Tracker RI - LR 45° modules
1/8 of a circle
R1089
R1210
R1425
R1694
R1936
R2420
R2904
R3871
R28-9/16”
R42-7/8”
R47-5/8”
R56-1/8”
R66-3/4”
R76-1/4”
R95-1/4”
R114-5/16”
R152-3/8”
45°
1140 (44-7/8”)
1900 (74-3/4”)
2280 (89-3/4”)
3040 (119-11/16”)
Linear modules
from 950 up to 3040 mm
from 37-3/8” up to 119-11/16”
(mm/inch)
