For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#Pyrymyd

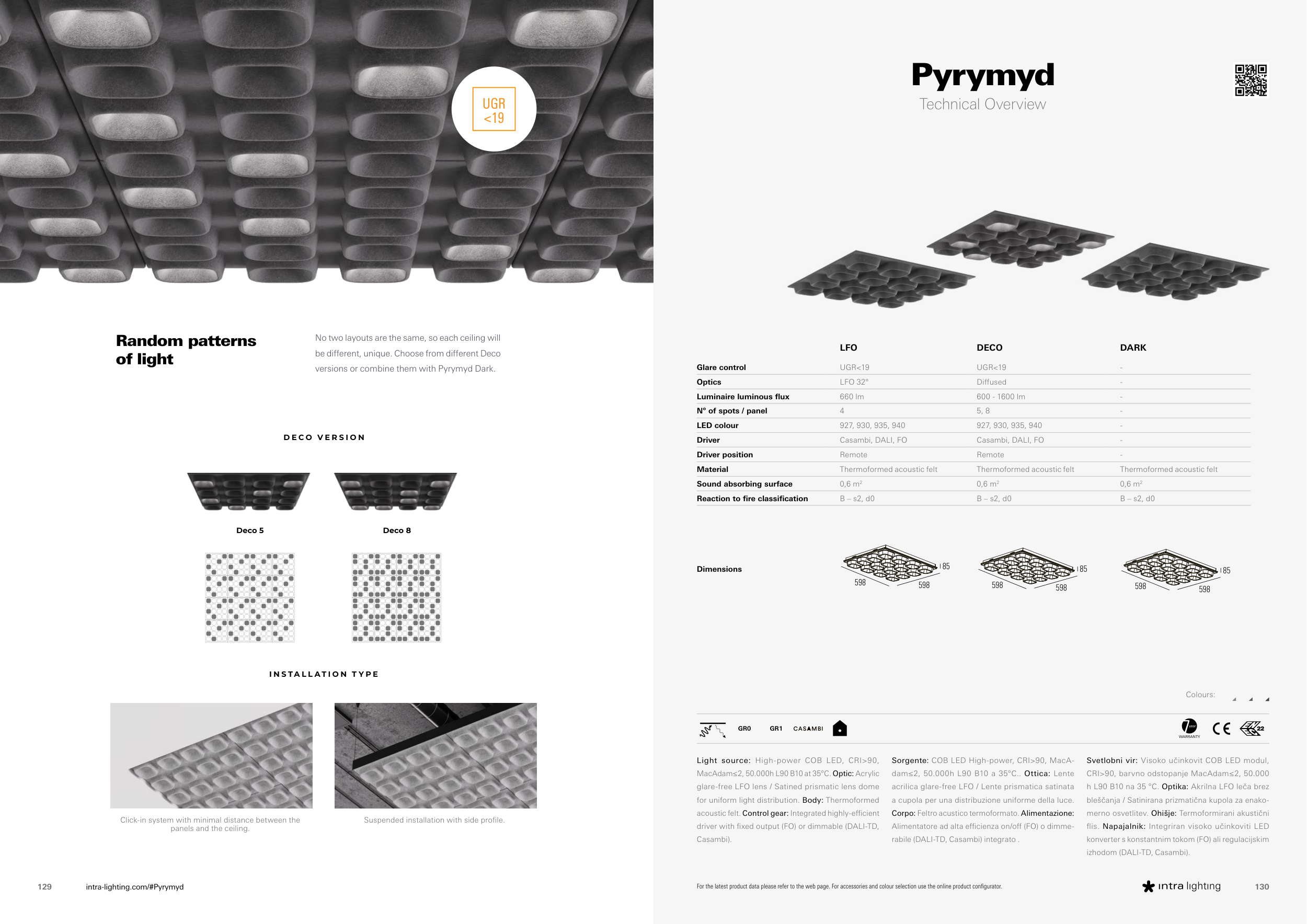

Pyrymyd
Technical Overview
Light source: High-power COB LED, CRI>90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Acrylic
glare-free LFO lens / Satined prismatic lens dome
for uniform light distribution. Body: Thermoformed
acoustic felt. Control gear: Integrated highly-efficient
driver with fixed output (FO) or dimmable (DALI-TD,
Casambi).
GR0
GR1
year
WARRANTY
D E C O V E R S I O N
No two layouts are the same, so each ceiling will
be different, unique. Choose from different Deco
versions or combine them with Pyrymyd Dark.
Random patterns
of light
I N S T A L L A T I O N T Y P E
Suspended installation with side profile.
Click-in system with minimal distance between the
panels and the ceiling.
Colours:
Sorgente: COB LED High-power, CRI>90, MacA-
dam≤2, 50.000h L90 B10 a 35°C.. Ottica: Lente
acrilica glare-free LFO / Lente prismatica satinata
a cupola per una distribuzione uniforme della luce.
Corpo: Feltro acustico termoformato. Alimentazione:
Alimentatore ad alta efficienza on/off (FO) o dimme-
rabile (DALI-TD, Casambi) integrato .
Svetlobni vir: Visoko učinkovit COB LED modul,
CRI>90, barvno odstopanje MacAdam≤2, 50.000
h L90 B10 na 35 °C. Optika: Akrilna LFO leča brez
bleščanja / Satinirana prizmatična kupola za enako-
merno osvetlitev. Ohišje: Termoformirani akustični
flis. Napajalnik: Integriran visoko učinkoviti LED
konverter s konstantnim tokom (FO) ali regulacijskim
izhodom (DALI-TD, Casambi).
LFO
DECO
DARK
Glare control
UGR<19
UGR<19
-
Optics
LFO 32°
Diffused
-
Luminaire luminous flux
660 lm
600 - 1600 lm
-
Nº of spots / panel
4
5, 8
-
LED colour
927, 930, 935, 940
927, 930, 935, 940
-
Driver
Casambi, DALI, FO
Casambi, DALI, FO
-
Driver position
Remote
Remote
-
Material
Thermoformed acoustic felt
Thermoformed acoustic felt
Thermoformed acoustic felt
Sound absorbing surface
0,6 m2
0,6 m2
0,6 m2
Reaction to fire classification
B – s2, d0
B – s2, d0
B – s2, d0
Dimensions
598
598
85
598
598
85
598
598
85
Deco 8
Deco 5
