For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
ADJUSTABLE (A)
FIXED (F)
RI
RV
Recessed trim-less
Recessed visible trim
Beam angle
20°, 30°, 55°
20°, 30°, 55°
Orientation
25° / 360° (A)
25° / 360° (A)
Luminaire luminous flux
540 - 970 lm
540 - 970 lm
LED colour
927, 930, 935, 940
927, 930, 935, 940
Dynamic light
Dim to warm (D2W)**
Dim to warm (D2W)**
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Remote
IP protection*
IP44
IP44
RI kit / Frame colour
1
2
1
2
Inner colour
Y
1
H
2
F
Y
1
H
2
F
Dimensions
81
79
76
106
49
88
79
76
106
49
Conic

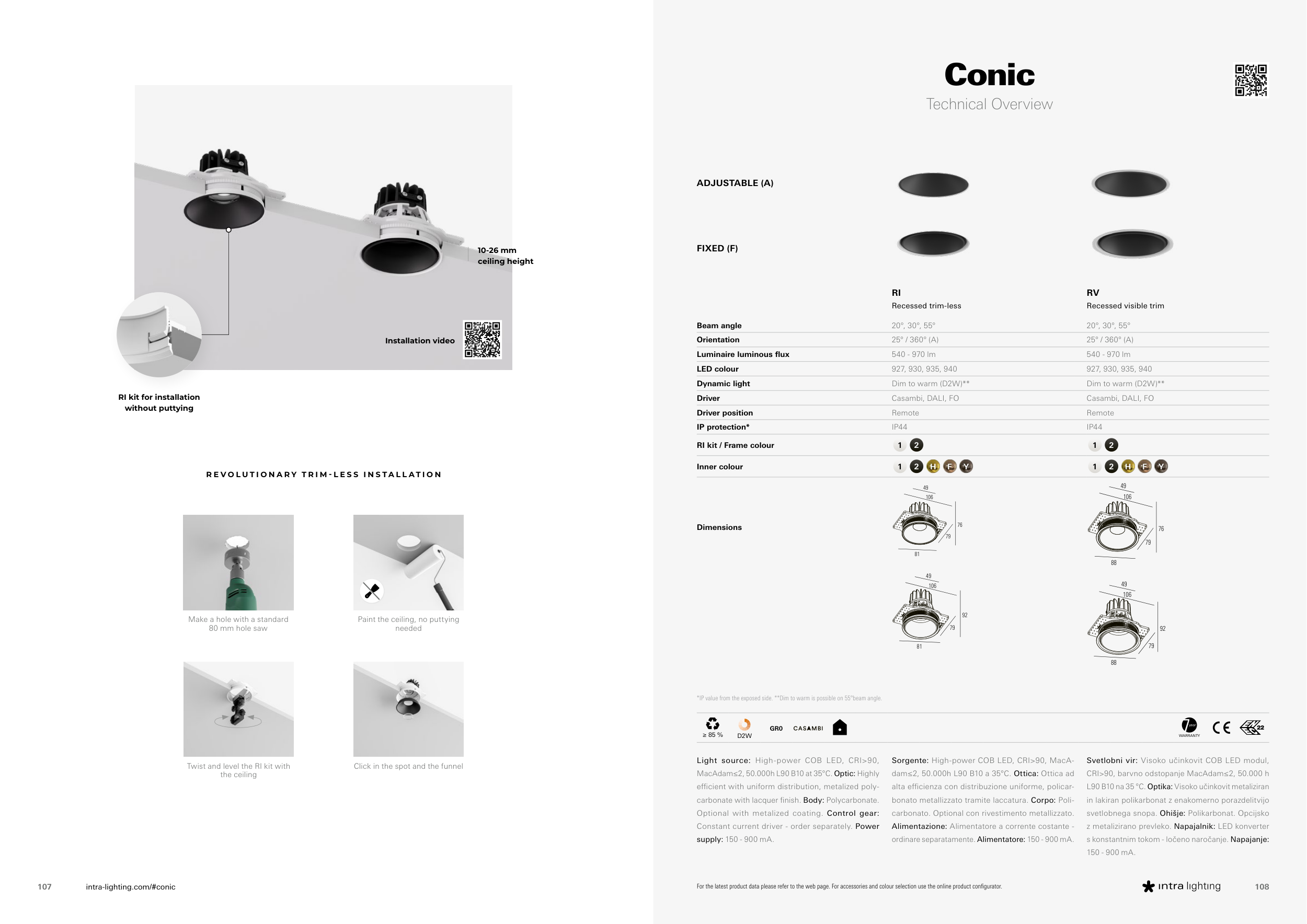

Technical Overview
Light source: High-power COB LED, CRI>90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Highly
efficient with uniform distribution, metalized poly-
carbonate with lacquer finish. Body: Polycarbonate.
Optional with metalized coating. Control gear:
Constant current driver - order separately. Power
supply: 150 - 900 mA.
≥ 85 %
D2W
GR0
year
WARRANTY
81
79
92
106
49
88
79
92
106
49
*IP value from the exposed side. **Dim to warm is possible on 55°beam angle.
intra-lighting.com/#conic
10-26 mm
ceiling height
RI kit for installation
without puttying
Make a hole with a standard
80 mm hole saw
Paint the ceiling, no puttying
needed
Click in the spot and the funnel
Twist and level the RI kit with
the ceiling
R E V O L U T I O N A R Y T R I M - L E S S I N S T A L L A T I O N
Installation video
Sorgente: High-power COB LED, CRI>90, MacA-
dam≤2, 50.000h L90 B10 a 35°C. Ottica: Ottica ad
alta efficienza con distribuzione uniforme, policar-
bonato metallizzato tramite laccatura. Corpo: Poli-
carbonato. Optional con rivestimento metallizzato.
Alimentazione: Alimentatore a corrente costante -
ordinare separatamente. Alimentatore: 150 - 900 mA.
Svetlobni vir: Visoko učinkovit COB LED modul,
CRI>90, barvno odstopanje MacAdam≤2, 50.000 h
L90 B10 na 35 °C. Optika: Visoko učinkovit metaliziran
in lakiran polikarbonat z enakomerno porazdelitvijo
svetlobnega snopa. Ohišje: Polikarbonat. Opcijsko
z metalizirano prevleko. Napajalnik: LED konverter
s konstantnim tokom - ločeno naročanje. Napajanje:
150 - 900 mA.
