For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#issa
Issa is available in different sizes. The combina-
tion of them creates a composition which adds
an artistic touch to the ambience.
Different lengths
It depends on the intensity of light you want to
achieve whether to choose a spot or not.
Do you prefer Issa to shine vividly or to glow
softly?
With or without
a spot
Milky or tunable white is always a good choice.
But sometimes, the RGB option gives an added
value when creating a playful and dynamic
atmosphere.
Play with colours

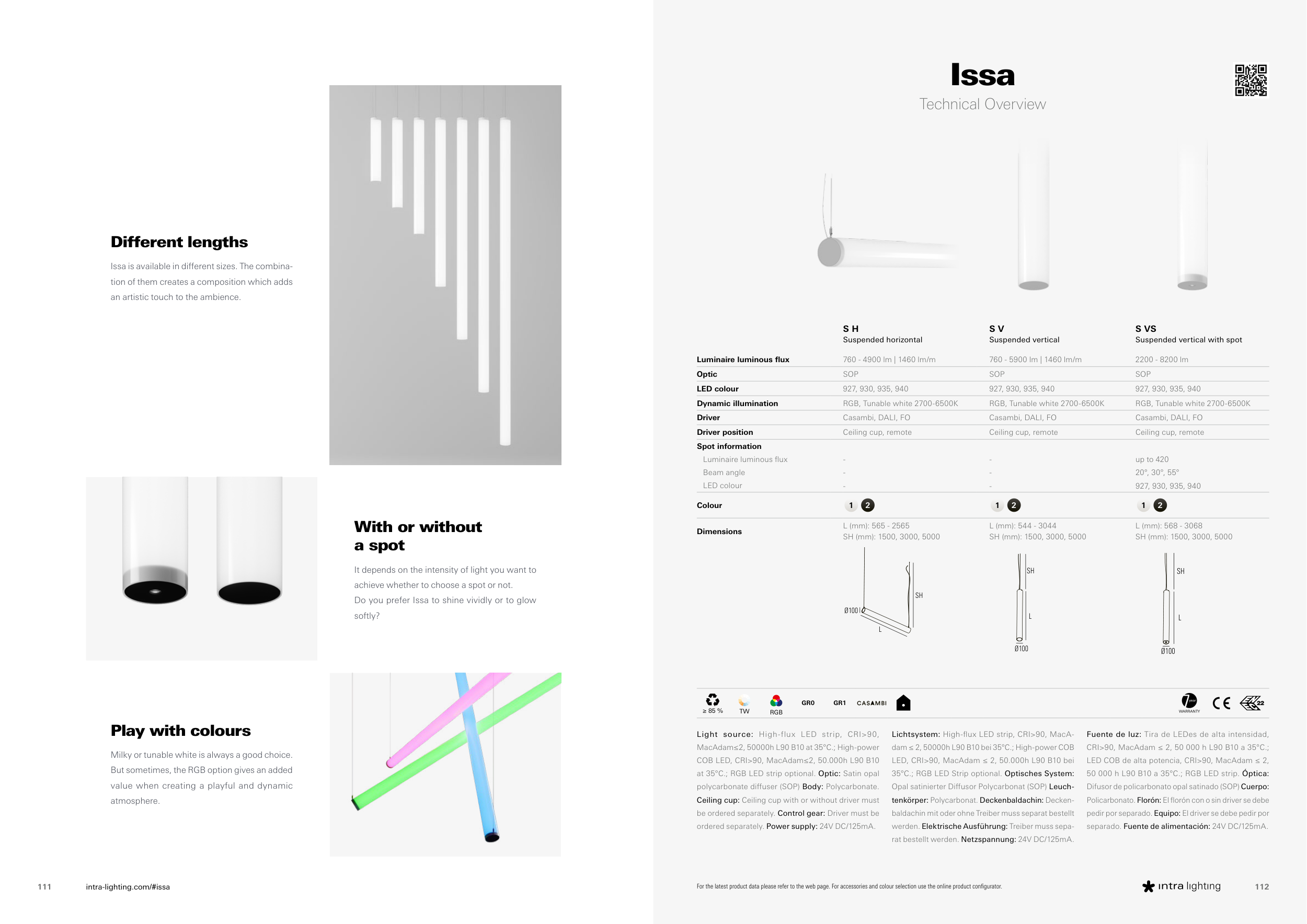

Issa
Technical Overview
S H
S V
S VS
Suspended horizontal
Suspended vertical
Suspended vertical with spot
Luminaire luminous flux
760 - 4900 lm | 1460 lm/m
760 - 5900 lm | 1460 lm/m
2200 - 8200 lm
Optic
SOP
SOP
SOP
LED colour
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
Dynamic illumination
RGB, Tunable white 2700-6500K
RGB, Tunable white 2700-6500K
RGB, Tunable white 2700-6500K
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Ceiling cup, remote
Ceiling cup, remote
Ceiling cup, remote
Spot information
Luminaire luminous flux
-
-
up to 420
Beam angle
-
-
20°, 30°, 55°
LED colour
-
-
927, 930, 935, 940
Colour
1
2
1
2
1
2
Dimensions
L (mm): 565 - 2565
SH (mm): 1500, 3000, 5000
L (mm): 544 - 3044
SH (mm): 1500, 3000, 5000
L (mm): 568 - 3068
SH (mm): 1500, 3000, 5000
SH
L
Ø100
SH
L
Ø100
L
SH
Ø100
Light source: High-flux LED strip, CRI>90,
MacAdam≤2, 50000h L90 B10 at 35°C.; High-power
COB LED, CRI>90, MacAdam≤2, 50.000h L90 B10
at 35°C.; RGB LED strip optional. Optic: Satin opal
polycarbonate diffuser (SOP) Body: Polycarbonate.
Ceiling cup: Ceiling cup with or without driver must
be ordered separately. Control gear: Driver must be
ordered separately. Power supply: 24V DC/125mA.
≥ 85 %
TW
RGB
GR0
GR1
year
WARRANTY
Lichtsystem: High-flux LED strip, CRI>90, MacA-
dam ≤ 2, 50000h L90 B10 bei 35°C.; High-power COB
LED, CRI>90, MacAdam ≤ 2, 50.000h L90 B10 bei
35°C.; RGB LED Strip optional. Optisches System:
Opal satinierter Diffusor Polycarbonat (SOP) Leuch-
tenkörper: Polycarbonat. Deckenbaldachin: Decken-
baldachin mit oder ohne Treiber muss separat bestellt
werden. Elektrische Ausführung: Treiber muss sepa-
rat bestellt werden. Netzspannung: 24V DC/125mA.
Fuente de luz: Tira de LEDes de alta intensidad,
CRI>90, MacAdam ≤ 2, 50 000 h L90 B10 a 35°C.;
LED COB de alta potencia, CRI>90, MacAdam ≤ 2,
50 000 h L90 B10 a 35°C.; RGB LED strip. Óptica:
Difusor de policarbonato opal satinado (SOP) Cuerpo:
Policarbonato. Florón: El florón con o sin driver se debe
pedir por separado. Equipo: El driver se debe pedir por
separado. Fuente de alimentación: 24V DC/125mA.
