For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#lysabel

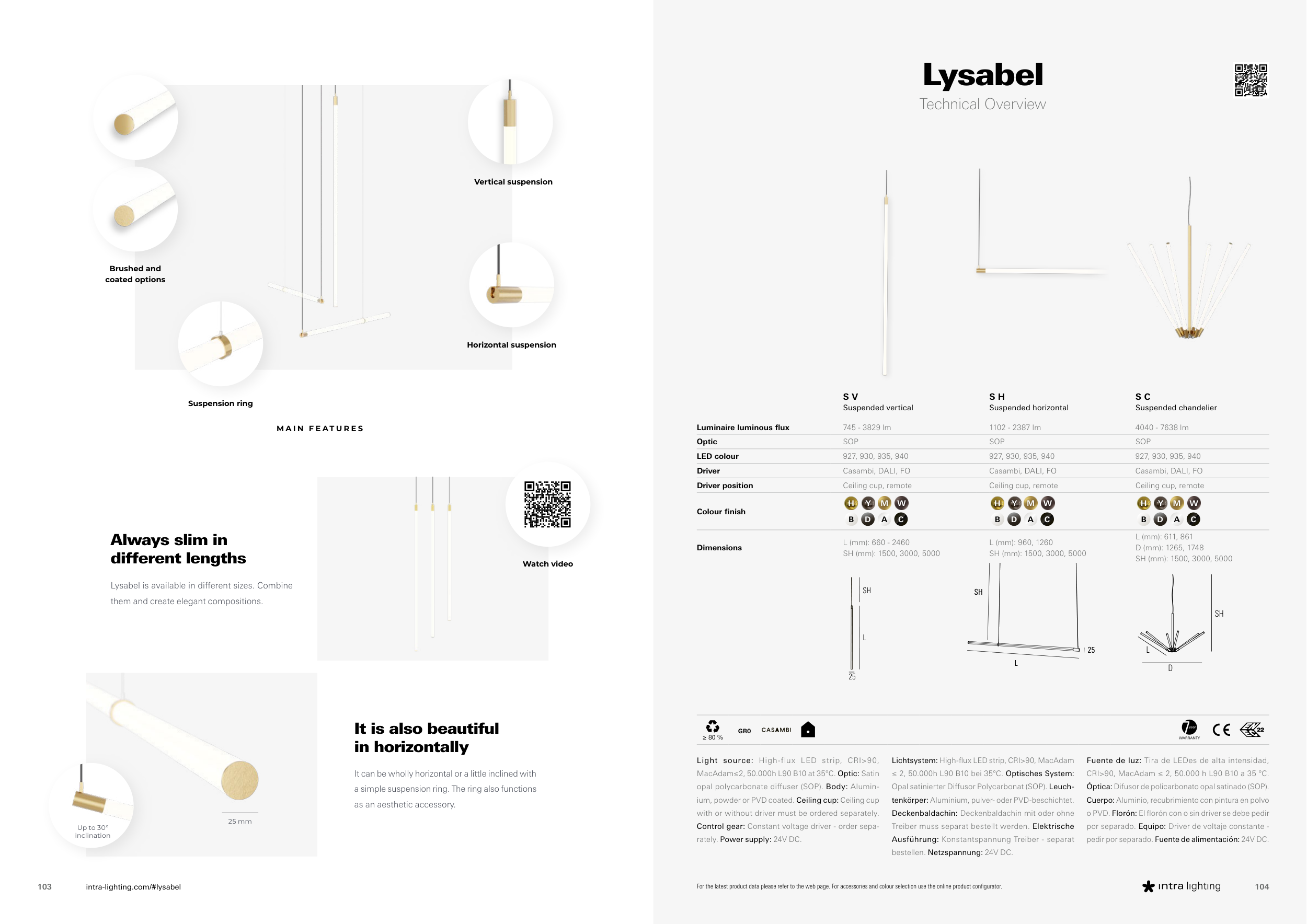

Lysabel
Technical Overview
Light source: High-flux LED strip, CRI>90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Satin
opal polycarbonate diffuser (SOP). Body: Alumin-
ium, powder or PVD coated. Ceiling cup: Ceiling cup
with or without driver must be ordered separately.
Control gear: Constant voltage driver - order sepa-
rately. Power supply: 24V DC.
≥ 80 %
GR0
year
WARRANTY
M A I N F E A T U R E S
Lysabel is available in different sizes. Combine
them and create elegant compositions.
It is also beautiful
in horizontally
It can be wholly horizontal or a little inclined with
a simple suspension ring. The ring also functions
as an aesthetic accessory.
Always slim in
different lengths
Suspension ring
Brushed and
coated options
Vertical suspension
Horizontal suspension
Watch video
Up to 30°
inclination
25 mm
S V
S H
S C
Suspended vertical
Suspended horizontal
Suspended chandelier
Luminaire luminous flux
745 - 3829 lm
1102 - 2387 lm
4040 - 7638 lm
Optic
SOP
SOP
SOP
LED colour
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Ceiling cup, remote
Ceiling cup, remote
Ceiling cup, remote
Colour finish
B
D
A
C
Y
W
H
M
B
D
A
C
Y
W
H
M
B
D
A
C
Y
W
H
M
Dimensions
L (mm): 660 - 2460
SH (mm): 1500, 3000, 5000
L (mm): 960, 1260
SH (mm): 1500, 3000, 5000
L (mm): 611, 861
D (mm): 1265, 1748
SH (mm): 1500, 3000, 5000
L
SH
25
L
D
SH
SH
L
25
Lichtsystem: High-flux LED strip, CRI>90, MacAdam
≤ 2, 50.000h L90 B10 bei 35°C. Optisches System:
Opal satinierter Diffusor Polycarbonat (SOP). Leuch-
tenkörper: Aluminium, pulver- oder PVD-beschichtet.
Deckenbaldachin: Deckenbaldachin mit oder ohne
Treiber muss separat bestellt werden. Elektrische
Ausführung: Konstantspannung Treiber - separat
bestellen. Netzspannung: 24V DC.
Fuente de luz: Tira de LEDes de alta intensidad,
CRI>90, MacAdam ≤ 2, 50.000 h L90 B10 a 35 °C.
Óptica: Difusor de policarbonato opal satinado (SOP).
Cuerpo: Aluminio, recubrimiento con pintura en polvo
o PVD. Florón: El florón con o sin driver se debe pedir
por separado. Equipo: Driver de voltaje constante -
pedir por separado. Fuente de alimentación: 24V DC.
