For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.

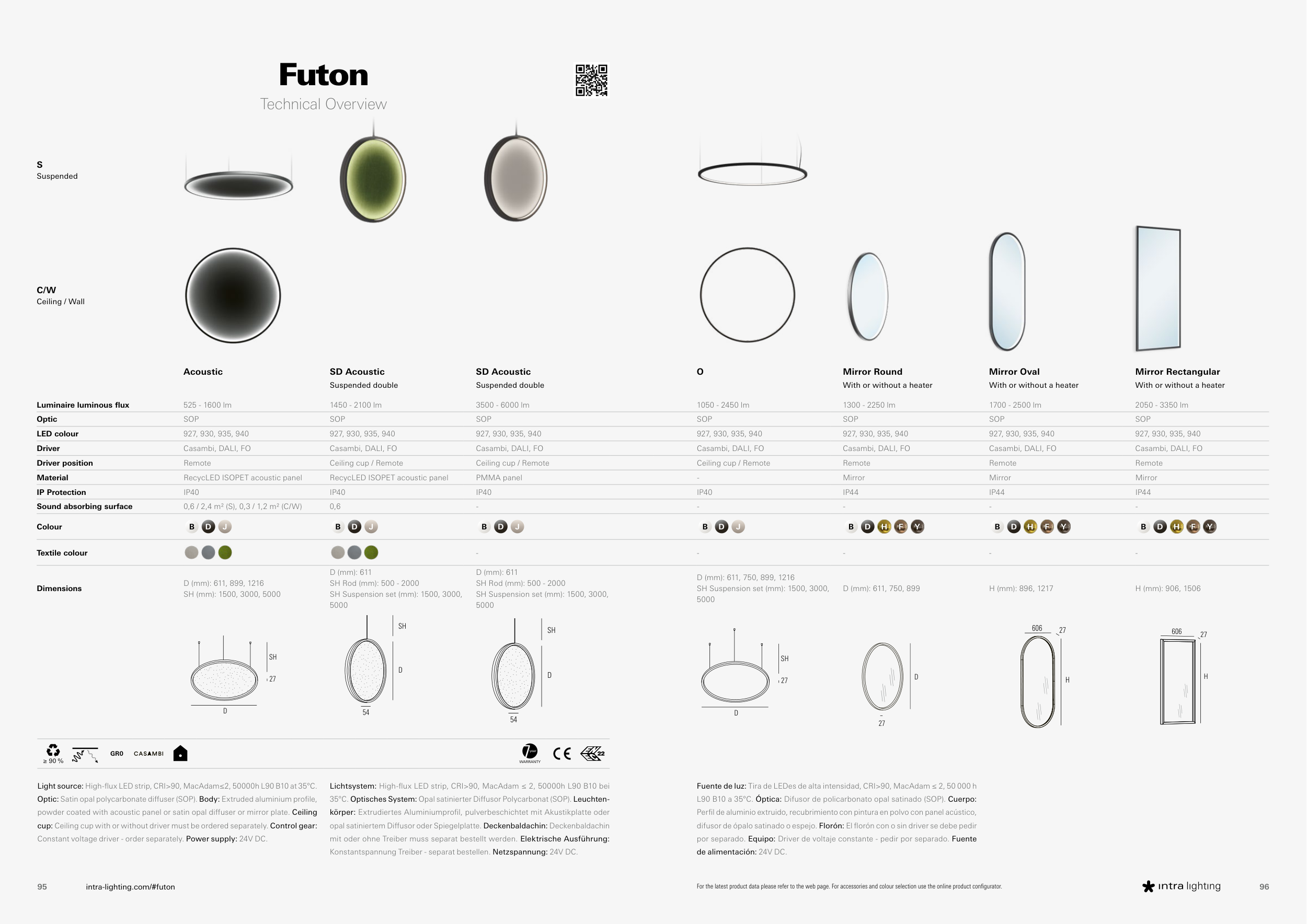

Futon
Technical Overview
Light source: High-flux LED strip, CRI>90, MacAdam≤2, 50000h L90 B10 at 35°C.
Optic: Satin opal polycarbonate diffuser (SOP). Body: Extruded aluminium profile,
powder coated with acoustic panel or satin opal diffuser or mirror plate. Ceiling
cup: Ceiling cup with or without driver must be ordered separately. Control gear:
Constant voltage driver - order separately. Power supply: 24V DC.
≥ 90 %
GR0
year
WARRANTY
intra-lighting.com/#futon
S
Suspended
C/W
Ceiling / Wall
Acoustic
SD Acoustic
SD Acoustic
O
Mirror Round
Mirror Oval
Mirror Rectangular
Suspended double
Suspended double
With or without a heater
With or without a heater
With or without a heater
Luminaire luminous flux
525 - 1600 lm
1450 - 2100 lm
3500 - 6000 lm
1050 - 2450 lm
1300 - 2250 lm
1700 - 2500 lm
2050 - 3350 lm
Optic
SOP
SOP
SOP
SOP
SOP
SOP
SOP
LED colour
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
927, 930, 935, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Ceiling cup / Remote
Ceiling cup / Remote
Ceiling cup / Remote
Remote
Remote
Remote
Material
RecycLED ISOPET acoustic panel
RecycLED ISOPET acoustic panel
PMMA panel
-
Mirror
Mirror
Mirror
IP Protection
IP40
IP40
IP40
IP40
IP44
IP44
IP44
Sound absorbing surface
0,6 / 2,4 m2 (S), 0,3 / 1,2 m2 (C/W)
0,6
-
-
-
-
-
Colour
J
B
D
J
B
D
J
B
D
J
B
D
B
D
Y
H
F
B
D
Y
H
F
B
D
Y
H
F
Textile colour
-
-
-
-
-
Dimensions
D (mm): 611, 899, 1216
SH (mm): 1500, 3000, 5000
D (mm): 611
SH Rod (mm): 500 - 2000
SH Suspension set (mm): 1500, 3000,
5000
D (mm): 611
SH Rod (mm): 500 - 2000
SH Suspension set (mm): 1500, 3000,
5000
D (mm): 611, 750, 899, 1216
SH Suspension set (mm): 1500, 3000,
5000
D (mm): 611, 750, 899
H (mm): 896, 1217
H (mm): 906, 1506
27
D
SH
54
D
SH
54
D
SH
27
D
SH
27
D
27
H
606
606
H
27
Lichtsystem: High-flux LED strip, CRI>90, MacAdam ≤ 2, 50000h L90 B10 bei
35°C. Optisches System: Opal satinierter Diffusor Polycarbonat (SOP). Leuchten-
körper: Extrudiertes Aluminiumprofil, pulverbeschichtet mit Akustikplatte oder
opal satiniertem Diffusor oder Spiegelplatte. Deckenbaldachin: Deckenbaldachin
mit oder ohne Treiber muss separat bestellt werden. Elektrische Ausführung:
Konstantspannung Treiber - separat bestellen. Netzspannung: 24V DC.
Fuente de luz: Tira de LEDes de alta intensidad, CRI>90, MacAdam ≤ 2, 50 000 h
L90 B10 a 35°C. Óptica: Difusor de policarbonato opal satinado (SOP). Cuerpo:
Perfil de aluminio extruido, recubrimiento con pintura en polvo con panel acústico,
difusor de ópalo satinado o espejo. Florón: El florón con o sin driver se debe pedir
por separado. Equipo: Driver de voltaje constante - pedir por separado. Fuente
de alimentación: 24V DC.
