For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#alkon
M A I N F E A T U R E S
Glare control, maximum efficiency and high
uniformity, resulting in outstanding comfort in
medical areas. Available in different shapes and
sizes.
Excellent light quality
The smooth glass surface with magnet fasten-
ing allows easy installation and service, mini-
mizes the accumulation of dirt and it's easy to
clean. Appropriate for laboratories, medical and
pharmaceutical areas.
Suitable for clean
rooms
Easy to clean glass surface
Glare control, high efficiency
and visual comfort
GORE® protective vent
The equalization of pressure
prevents humidity accumulation
in the luminaire

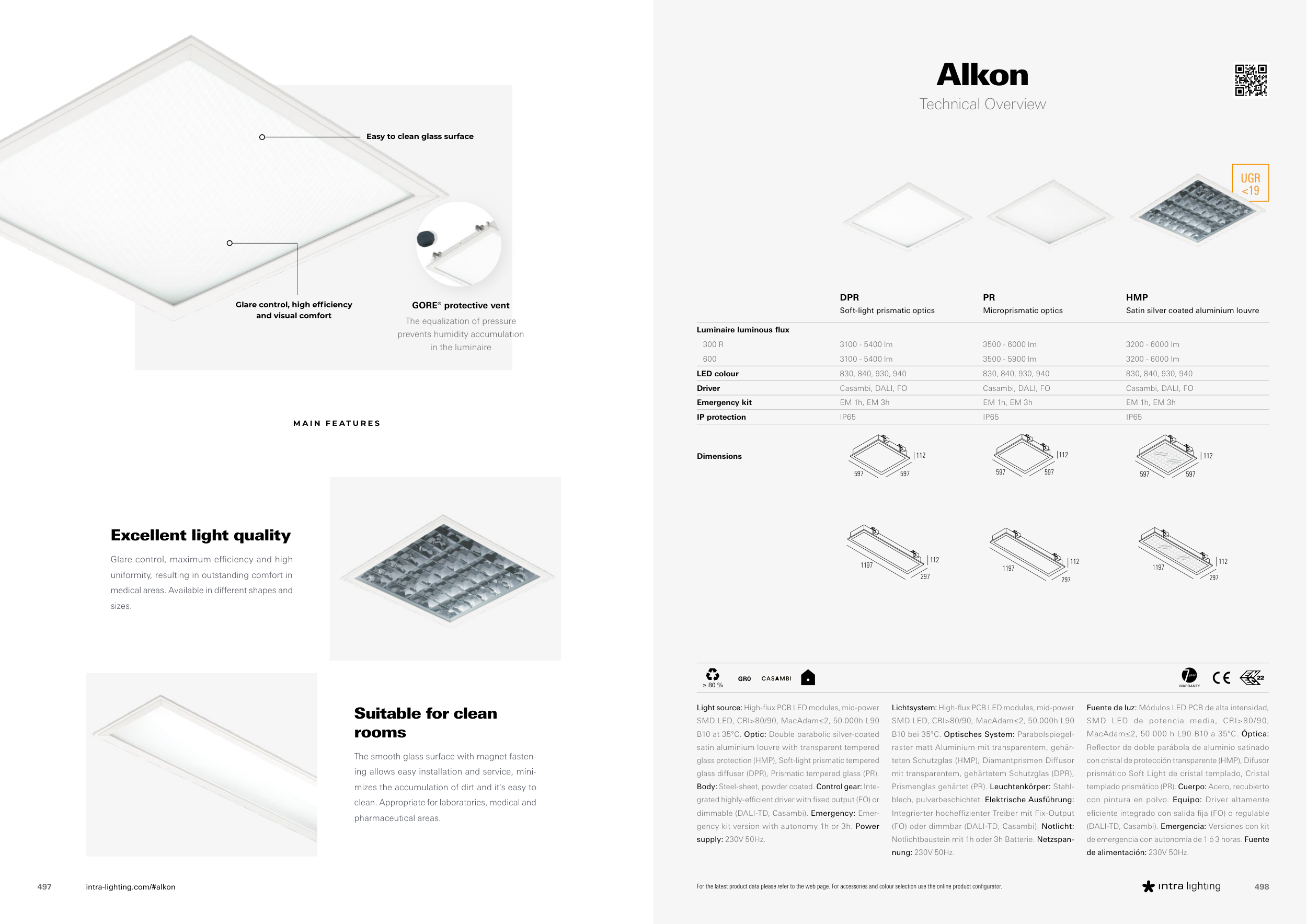

Alkon
Technical Overview
DPR
PR
HMP
Soft-light prismatic optics
Microprismatic optics
Satin silver coated aluminium louvre
Luminaire luminous flux
300 R
3100 - 5400 lm
3500 - 6000 lm
3200 - 6000 lm
600
3100 - 5400 lm
3500 - 5900 lm
3200 - 6000 lm
LED colour
830, 840, 930, 940
830, 840, 930, 940
830, 840, 930, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Emergency kit
EM 1h, EM 3h
EM 1h, EM 3h
EM 1h, EM 3h
IP protection
IP65
IP65
IP65
Dimensions
597
597
112
597
597
112
597
597
112
297
1197
112
297
1197
112
1197
297
112
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Double parabolic silver-coated
satin aluminium louvre with transparent tempered
glass protection (HMP), Soft-light prismatic tempered
glass diffuser (DPR), Prismatic tempered glass (PR).
Body: Steel-sheet, powder coated. Control gear: Inte-
grated highly-efficient driver with fixed output (FO) or
dimmable (DALI-TD, Casambi). Emergency: Emer-
gency kit version with autonomy 1h or 3h. Power
supply: 230V 50Hz.
≥ 80 %
GR0
year
WARRANTY
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 bei 35°C. Optisches System: Parabolspiegel-
raster matt Aluminium mit transparentem, gehär-
teten Schutzglas (HMP), Diamantprismen Diffusor
mit transparentem, gehärtetem Schutzglas (DPR),
Prismenglas gehärtet (PR). Leuchtenkörper: Stahl-
blech, pulverbeschichtet. Elektrische Ausführung:
Integrierter hocheffizienter Treiber mit Fix-Output
(FO) oder dimmbar (DALI-TD, Casambi). Notlicht:
Notlichtbaustein mit 1h oder 3h Batterie. Netzspan-
nung: 230V 50Hz.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica:
Reflector de doble parábola de aluminio satinado
con cristal de protección transparente (HMP), Difusor
prismático Soft Light de cristal templado, Cristal
templado prismático (PR). Cuerpo: Acero, recubierto
con pintura en polvo. Equipo: Driver altamente
eficiente integrado con salida fija (FO) o regulable
(DALI-TD, Casambi). Emergencia: Versiones con kit
de emergencia con autonomía de 1 ó 3 horas. Fuente
de alimentación: 230V 50Hz.
