For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#106216
M A I N F E A T U R E S
106 MC for modular
ceilings
Diffused prismatic diffuser (DPR)* with
UGR<19. Prismatic diffuser (PR) with UGR<19.
Opal diffuser (OP).
*Only for MC version.
It is available in two standard shapes for modu-
lar ceilings. It's easy to install with no need
to open the fixture. GST quick connector is
included.
Different optic types
Fast and easy GST quick
connector without open-
ing the fixture (included
with 106 MC).
Easy and fast installation
DPR
PR
OP

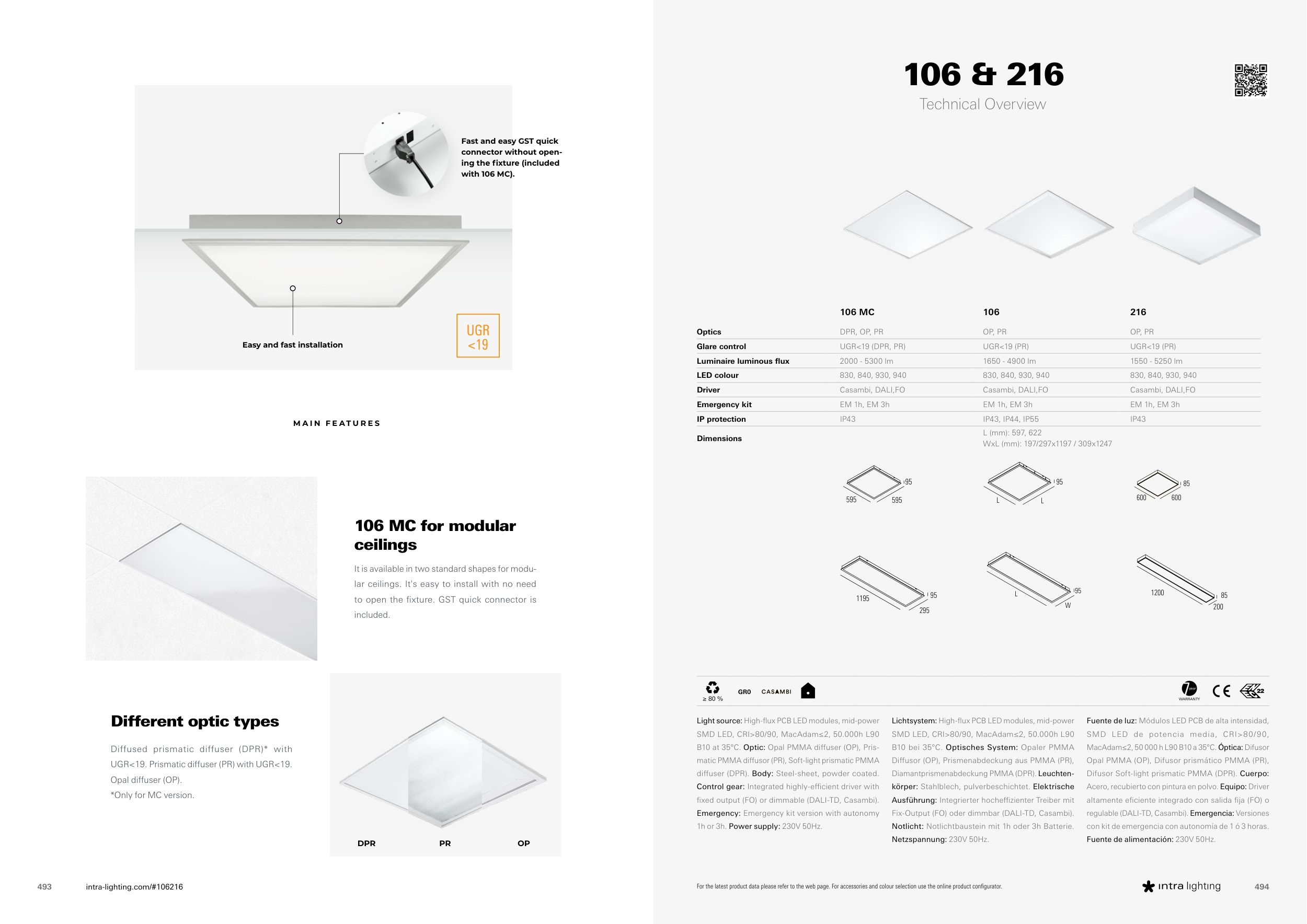

106 & 216
Technical Overview
106 MC
106
216
Optics
DPR, OP, PR
OP, PR
OP, PR
Glare control
UGR<19 (DPR, PR)
UGR<19 (PR)
UGR<19 (PR)
Luminaire luminous flux
2000 - 5300 lm
1650 - 4900 lm
1550 - 5250 lm
LED colour
830, 840, 930, 940
830, 840, 930, 940
830, 840, 930, 940
Driver
Casambi, DALI,FO
Casambi, DALI,FO
Casambi, DALI,FO
Emergency kit
EM 1h, EM 3h
EM 1h, EM 3h
EM 1h, EM 3h
IP protection
IP43
IP43, IP44, IP55
IP43
Dimensions
L (mm): 597, 622
WxL (mm): 197/297x1197 / 309x1247
595
595
95
L
L
95
600
600
85
L
W
95
1200
200
85
1195
295
95
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Opal PMMA diffuser (OP), Pris-
matic PMMA diffusor (PR), Soft-light prismatic PMMA
diffuser (DPR). Body: Steel-sheet, powder coated.
Control gear: Integrated highly-efficient driver with
fixed output (FO) or dimmable (DALI-TD, Casambi).
Emergency: Emergency kit version with autonomy
1h or 3h. Power supply: 230V 50Hz.
≥ 80 %
GR0
year
WARRANTY
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 bei 35°C. Optisches System: Opaler PMMA
Diffusor (OP), Prismenabdeckung aus PMMA (PR),
Diamantprismenabdeckung PMMA (DPR). Leuchten-
körper: Stahlblech, pulverbeschichtet. Elektrische
Ausführung: Integrierter hocheffizienter Treiber mit
Fix-Output (FO) oder dimmbar (DALI-TD, Casambi).
Notlicht: Notlichtbaustein mit 1h oder 3h Batterie.
Netzspannung: 230V 50Hz.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica: Difusor
Opal PMMA (OP), Difusor prismático PMMA (PR),
Difusor Soft-light prismatic PMMA (DPR). Cuerpo:
Acero, recubierto con pintura en polvo. Equipo: Driver
altamente eficiente integrado con salida fija (FO) o
regulable (DALI-TD, Casambi). Emergencia: Versiones
con kit de emergencia con autonomía de 1 ó 3 horas.
Fuente de alimentación: 230V 50Hz.
