For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#canvas
M A I N F E A T U R E S
The curved frame softens the contrast between
lit and non-lit surfaces.
Soft light transition
Combine colour, form and function in a distinc-
tive and elegant look. Glare control, maximum
efficiency and high uniformity result in outstand-
ing visual comfort.
Dual colour,
excellent light quality
Curved frame
DPR, SOP diffusers
Different sizes and
shapes available
Tunable white
Glare control, high efficiency
and visual comfort
CANVAS R
Recessed
CANVAS C/S
Ceiling / Suspended
350x350
600x600
350x1100
Optics
SOP, DPR
SOP, DPR
SOP, DPR
Glare control
UGR<19 (DPR)
UGR<19 (DPR)
UGR<19 (DPR)
Luminaire luminous flux
800 - 1500 lm
3050 - 5800 lm
3050 - 5800 lm
LED colour
830, 840, 930, 940
830, 840, 930, 940
830, 840, 930, 940
Dynamic colour
-
Tunable white 2700 - 6500K
Tunable white 2700 - 6500K
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Emergency kit
-
EM 1h, EM 3h
EM 1h, EM 3h
Colour
1
2
3
1
2
3
1
2
3
Dimensions
100
334
334
86
597 / 622
597 / 622
100
584
584
334
1084
100
M600 / M625

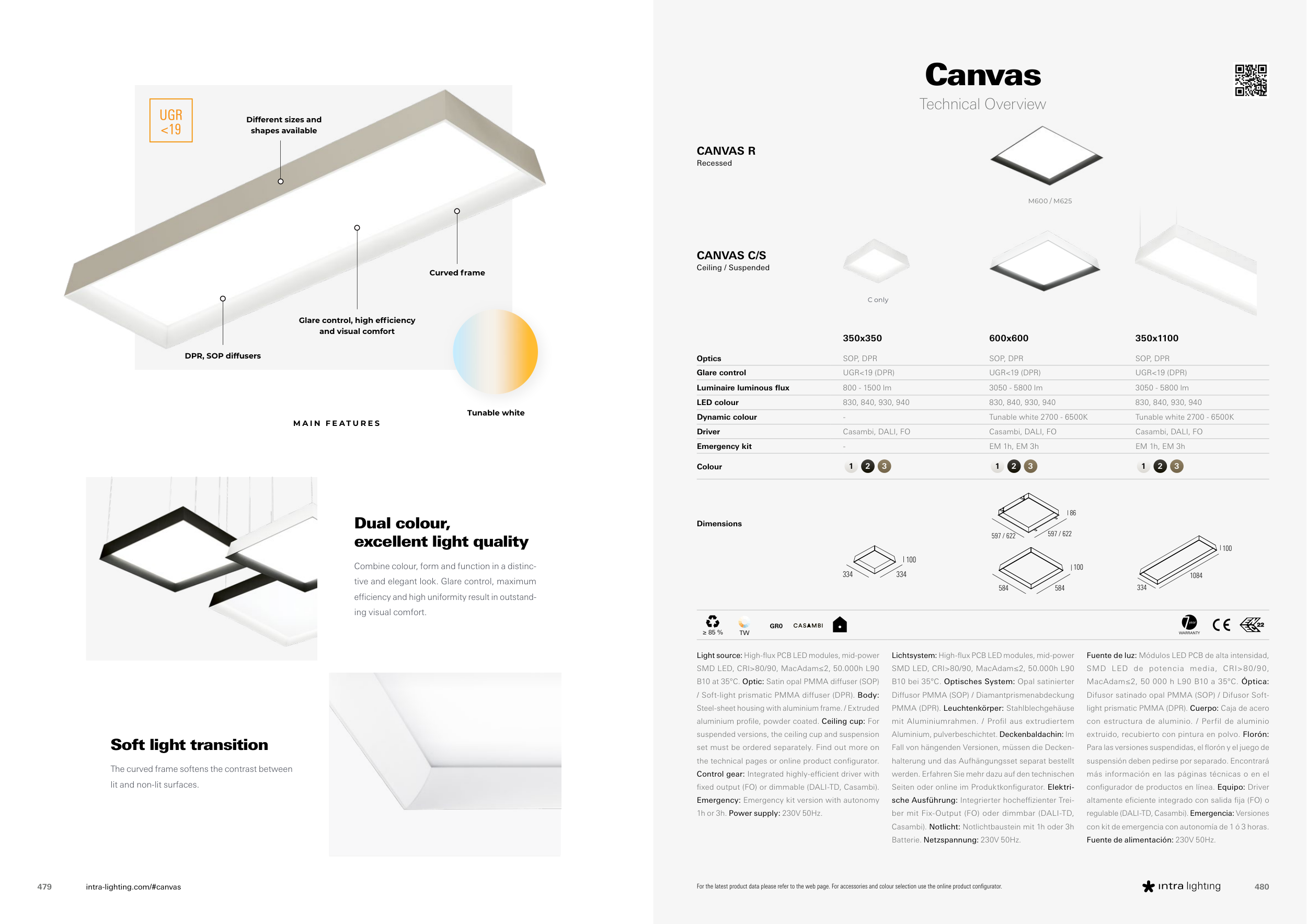

Canvas
Technical Overview
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Satin opal PMMA diffuser (SOP)
/ Soft-light prismatic PMMA diffuser (DPR). Body:
Steel-sheet housing with aluminium frame. / Extruded
aluminium profile, powder coated. Ceiling cup: For
suspended versions, the ceiling cup and suspension
set must be ordered separately. Find out more on
the technical pages or online product configurator.
Control gear: Integrated highly-efficient driver with
fixed output (FO) or dimmable (DALI-TD, Casambi).
Emergency: Emergency kit version with autonomy
1h or 3h. Power supply: 230V 50Hz.
≥ 85 %
TW
GR0
year
WARRANTY
C only
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 bei 35°C. Optisches System: Opal satinierter
Diffusor PMMA (SOP) / Diamantprismenabdeckung
PMMA (DPR). Leuchtenkörper: Stahlblechgehäuse
mit Aluminiumrahmen. / Profil aus extrudiertem
Aluminium, pulverbeschichtet. Deckenbaldachin: Im
Fall von hängenden Versionen, müssen die Decken-
halterung und das Aufhängungsset separat bestellt
werden. Erfahren Sie mehr dazu auf den technischen
Seiten oder online im Produktkonfigurator. Elektri-
sche Ausführung: Integrierter hocheffizienter Trei-
ber mit Fix-Output (FO) oder dimmbar (DALI-TD,
Casambi). Notlicht: Notlichtbaustein mit 1h oder 3h
Batterie. Netzspannung: 230V 50Hz.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica:
Difusor satinado opal PMMA (SOP) / Difusor Soft-
light prismatic PMMA (DPR). Cuerpo: Caja de acero
con estructura de aluminio. / Perfil de aluminio
extruido, recubierto con pintura en polvo. Florón:
Para las versiones suspendidas, el florón y el juego de
suspensión deben pedirse por separado. Encontrará
más información en las páginas técnicas o en el
configurador de productos en línea. Equipo: Driver
altamente eficiente integrado con salida fija (FO) o
regulable (DALI-TD, Casambi). Emergencia: Versiones
con kit de emergencia con autonomía de 1 ó 3 horas.
Fuente de alimentación: 230V 50Hz.
