For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#zoe
Clean basic shapes and selected colours are
always trendy, no matter the style of your furni-
ture and interior.
Zoe boasts seamless joints either between two
shapes but also between the power cable and
the luminaire itself.
Always trendy
Carefully designed
details

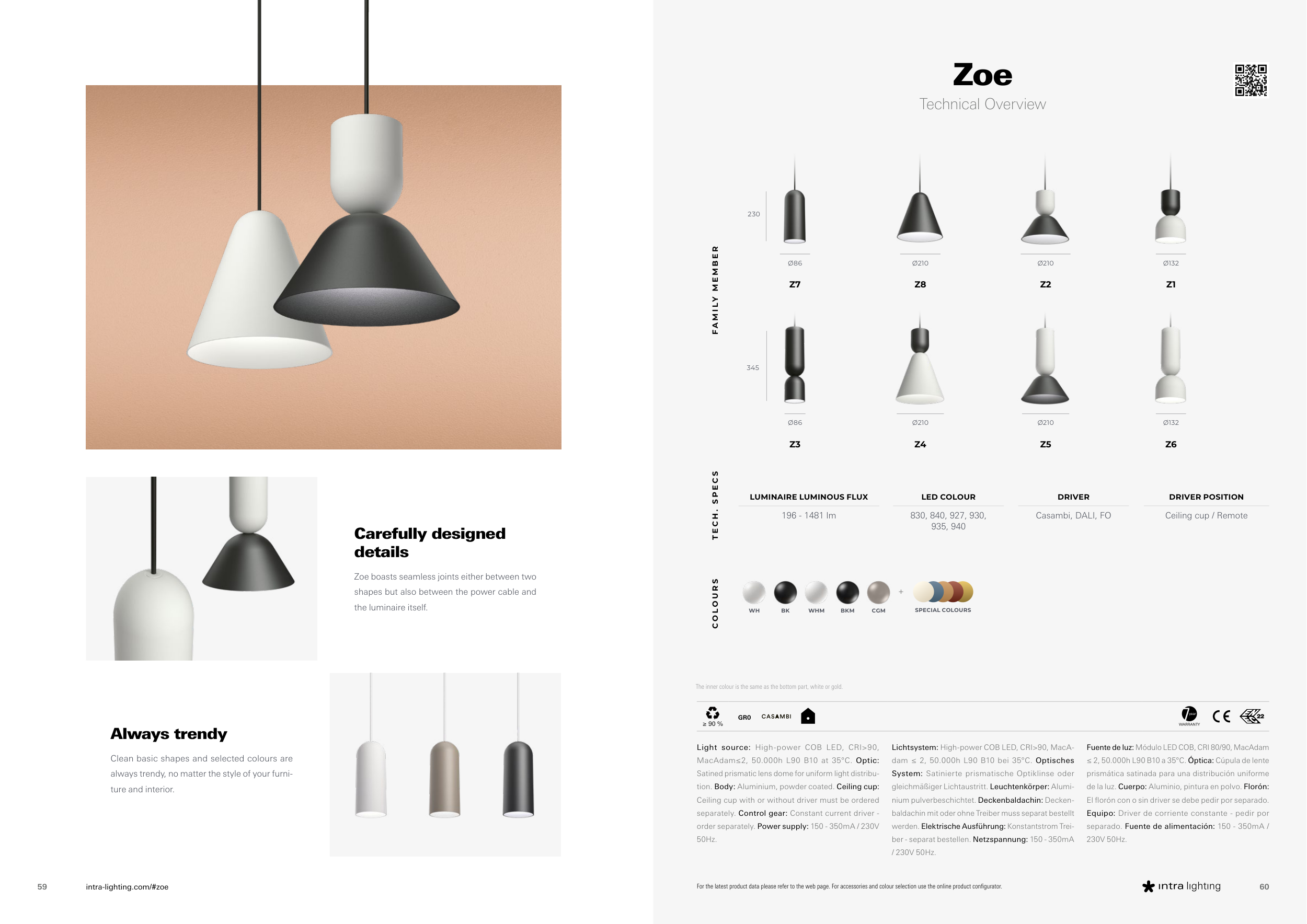

Zoe
Technical Overview
F A M I LY M E M B E R
T E C H . S P E C S
196 - 1481 lm
LUMINAIRE LUMINOUS FLUX
830, 840, 927, 930,
935, 940
LED COLOUR
Casambi, DALI, FO
Ceiling cup / Remote
DRIVER
DRIVER POSITION
Z1
Z5
Z2
Z6
Ø132
Ø210
Ø210
Ø132
C O L O U R S
Z7
Z8
Ø86
Ø210
230
Z3
Z4
345
Ø86
Ø210
Light source: High-power COB LED, CRI>90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic:
Satined prismatic lens dome for uniform light distribu-
tion. Body: Aluminium, powder coated. Ceiling cup:
Ceiling cup with or without driver must be ordered
separately. Control gear: Constant current driver -
order separately. Power supply: 150 - 350mA / 230V
50Hz.
≥ 90 %
GR0
year
WARRANTY
The inner colour is the same as the bottom part, white or gold.
WH
BK
WHM
BKM
CGM
SPECIAL COLOURS
Lichtsystem: High-power COB LED, CRI>90, MacA-
dam ≤ 2, 50.000h L90 B10 bei 35°C. Optisches
System: Satinierte prismatische Optiklinse oder
gleichmäßiger Lichtaustritt. Leuchtenkörper: Alumi-
nium pulverbeschichtet. Deckenbaldachin: Decken-
baldachin mit oder ohne Treiber muss separat bestellt
werden. Elektrische Ausführung: Konstantstrom Trei-
ber - separat bestellen. Netzspannung: 150 - 350mA
/ 230V 50Hz.
Fuente de luz: Módulo LED COB, CRI 80/90, MacAdam
≤ 2, 50.000h L90 B10 a 35°C. Óptica: Cúpula de lente
prismática satinada para una distribución uniforme
de la luz. Cuerpo: Aluminio, pintura en polvo. Florón:
El florón con o sin driver se debe pedir por separado.
Equipo: Driver de corriente constante - pedir por
separado. Fuente de alimentación: 150 - 350mA /
230V 50Hz.
