For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.

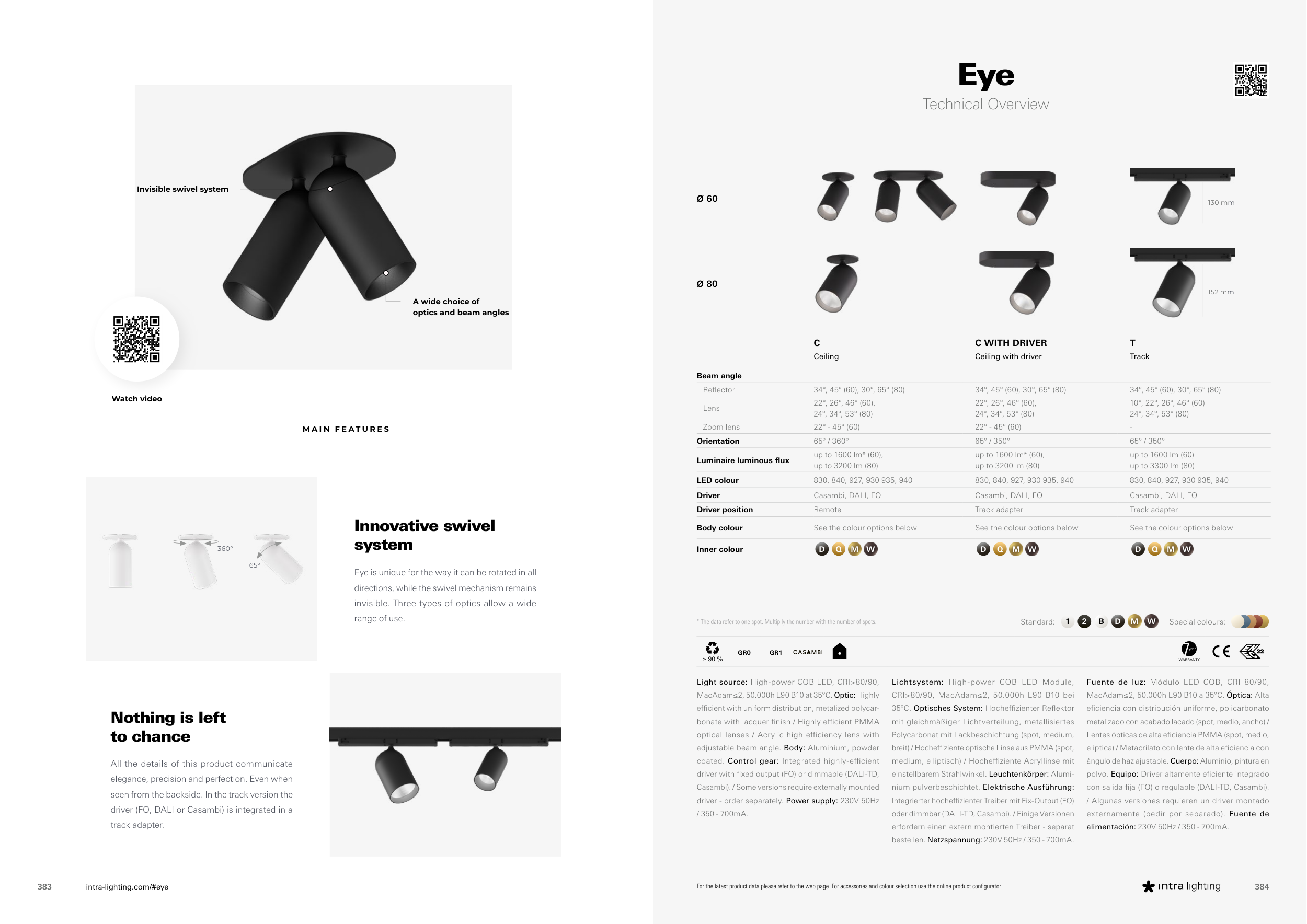

Eye
Technical Overview
Light source: High-power COB LED, CRI>80/90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Highly
efficient with uniform distribution, metalized polycar-
bonate with lacquer finish / Highly efficient PMMA
optical lenses / Acrylic high efficiency lens with
adjustable beam angle. Body: Aluminium, powder
coated. Control gear: Integrated highly-efficient
driver with fixed output (FO) or dimmable (DALI-TD,
Casambi). / Some versions require externally mounted
driver - order separately. Power supply: 230V 50Hz
/ 350 - 700mA.
≥ 90 %
GR0
GR1
year
WARRANTY
Eye is unique for the way it can be rotated in all
directions, while the swivel mechanism remains
invisible. Three types of optics allow a wide
range of use.
Innovative swivel
system
All the details of this product communicate
elegance, precision and perfection. Even when
seen from the backside. In the track version the
driver (FO, DALI or Casambi) is integrated in a
track adapter.
Nothing is left
to chance
M A I N F E A T U R E S
intra-lighting.com/#eye
A wide choice of
optics and beam angles
Invisible swivel system
Watch video
65°
360°
Ø 60
Ø 80
C
C WITH DRIVER
T
Ceiling
Ceiling with driver
Track
Beam angle
Reflector
34°, 45° (60), 30°, 65° (80)
34°, 45° (60), 30°, 65° (80)
34°, 45° (60), 30°, 65° (80)
Lens
22°, 26°, 46° (60),
24°, 34°, 53° (80)
22°, 26°, 46° (60),
24°, 34°, 53° (80)
10°, 22°, 26°, 46° (60)
24°, 34°, 53° (80)
Zoom lens
22° - 45° (60)
22° - 45° (60)
-
Orientation
65° / 360°
65° / 350°
65° / 350°
Luminaire luminous flux
up to 1600 lm* (60),
up to 3200 lm (80)
up to 1600 lm* (60),
up to 3200 lm (80)
up to 1600 lm (60)
up to 3300 lm (80)
LED colour
830, 840, 927, 930 935, 940
830, 840, 927, 930 935, 940
830, 840, 927, 930 935, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Track adapter
Track adapter
Body colour
See the colour options below
See the colour options below
See the colour options below
Inner colour
M
W
Q
D
M
W
Q
D
M
W
Q
D
* The data refer to one spot. Multiplly the number with the number of spots.
152 mm
130 mm
1
2
Standard:
Special colours:
B
D
W
M
Lichtsystem: High-power COB LED Module,
CRI>80/90, MacAdam≤2, 50.000h L90 B10 bei
35°C. Optisches System: Hocheffizienter Reflektor
mit gleichmäßiger Lichtverteilung, metallisiertes
Polycarbonat mit Lackbeschichtung (spot, medium,
breit) / Hocheffiziente optische Linse aus PMMA (spot,
medium, elliptisch) / Hocheffiziente Acryllinse mit
einstellbarem Strahlwinkel. Leuchtenkörper: Alumi-
nium pulverbeschichtet. Elektrische Ausführung:
Integrierter hocheffizienter Treiber mit Fix-Output (FO)
oder dimmbar (DALI-TD, Casambi). / Einige Versionen
erfordern einen extern montierten Treiber - separat
bestellen. Netzspannung: 230V 50Hz / 350 - 700mA.
Fuente de luz: Módulo LED COB, CRI 80/90,
MacAdam≤2, 50.000h L90 B10 a 35°C. Óptica: Alta
eficiencia con distribución uniforme, policarbonato
metalizado con acabado lacado (spot, medio, ancho) /
Lentes ópticas de alta eficiencia PMMA (spot, medio,
eliptica) / Metacrilato con lente de alta eficiencia con
ángulo de haz ajustable. Cuerpo: Aluminio, pintura en
polvo. Equipo: Driver altamente eficiente integrado
con salida fija (FO) o regulable (DALI-TD, Casambi).
/ Algunas versiones requieren un driver montado
externamente (pedir por separado). Fuente de
alimentación: 230V 50Hz / 350 - 700mA.
