For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
Liy

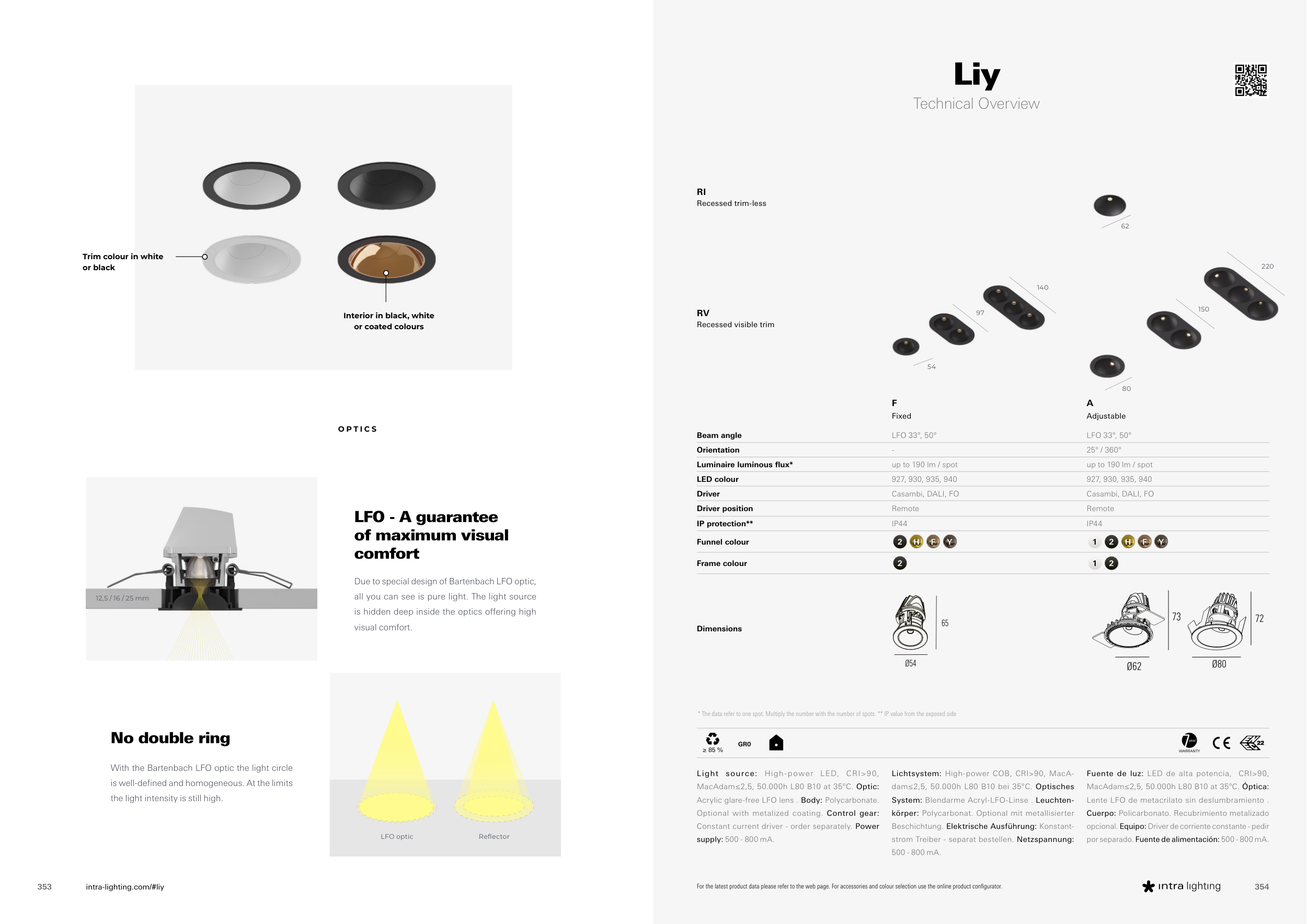

Technical Overview
Light source: High-power LED, CRI>90,
MacAdam≤2,5, 50.000h L80 B10 at 35°C. Optic:
Acrylic glare-free LFO lens . Body: Polycarbonate.
Optional with metalized coating. Control gear:
Constant current driver - order separately. Power
supply: 500 - 800 mA.
≥ 85 %
GR0
year
WARRANTY
intra-lighting.com/#liy
Due to special design of Bartenbach LFO optic,
all you can see is pure light. The light source
is hidden deep inside the optics offering high
visual comfort.
LFO - A guarantee
of maximum visual
comfort
With the Bartenbach LFO optic the light circle
is well-defined and homogeneous. At the limits
the light intensity is still high.
No double ring
O P T I C S
12,5 / 16 / 25 mm
LFO optic
Reflector
* The data refer to one spot. Multiply the number with the number of spots. ** IP value from the exposed side
Trim colour in white
or black
Interior in black, white
or coated colours
RI
Recessed trim-less
RV
Recessed visible trim
F
A
Fixed
Adjustable
Beam angle
LFO 33°, 50°
LFO 33°, 50°
Orientation
-
25° / 360°
Luminaire luminous flux*
up to 190 lm / spot
up to 190 lm / spot
LED colour
927, 930, 935, 940
927, 930, 935, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Remote
IP protection**
IP44
IP44
Funnel colour
Y
H
F
2
Y
H
F
2
1
Frame colour
2
2
1
Dimensions
65
Ø54
Ø62
73
54
80
62
220
140
97
150
Ø80
72
Lichtsystem: High-power COB, CRI>90, MacA-
dam≤2,5, 50.000h L80 B10 bei 35°C. Optisches
System: Blendarme Acryl-LFO-Linse . Leuchten-
körper: Polycarbonat. Optional mit metallisierter
Beschichtung. Elektrische Ausführung: Konstant-
strom Treiber - separat bestellen. Netzspannung:
500 - 800 mA.
Fuente de luz: LED de alta potencia, CRI>90,
MacAdam≤2,5, 50.000h L80 B10 at 35°C. Óptica:
Lente LFO de metacrilato sin deslumbramiento .
Cuerpo: Policarbonato. Recubrimiento metalizado
opcional. Equipo: Driver de corriente constante - pedir
por separado. Fuente de alimentación: 500 - 800 mA.
