intra-lighting.com/#edge
Edge profile allows adjustable screw
position. Recommended distance
between screws is 150 mm.
Supporting standard plaster
board thickness (12,5 mm)
Finish the ceiling work by applying
putty over the luminaire
L1 (mm) = 500, 600, 1000, 1500, 2000
L1
28 mm
12,5mm
L2
Mounting position
Diffuser
Light distribution
L3
Standard module
L2 (mm) = 540, 640, 1040, 1540, 2040 mm
Corner module (external illumination)
L3 (mm) = 530, 630, 1030, 1530, 2030 mm
Corner module (internal illumination)
28 mm
12,5 mm
1
2
3
200
Cove
Edge
12,5
200
Cove
Edge
12,5
F O R D I F F E R E N T K I N D S O F C O V E S
Edge

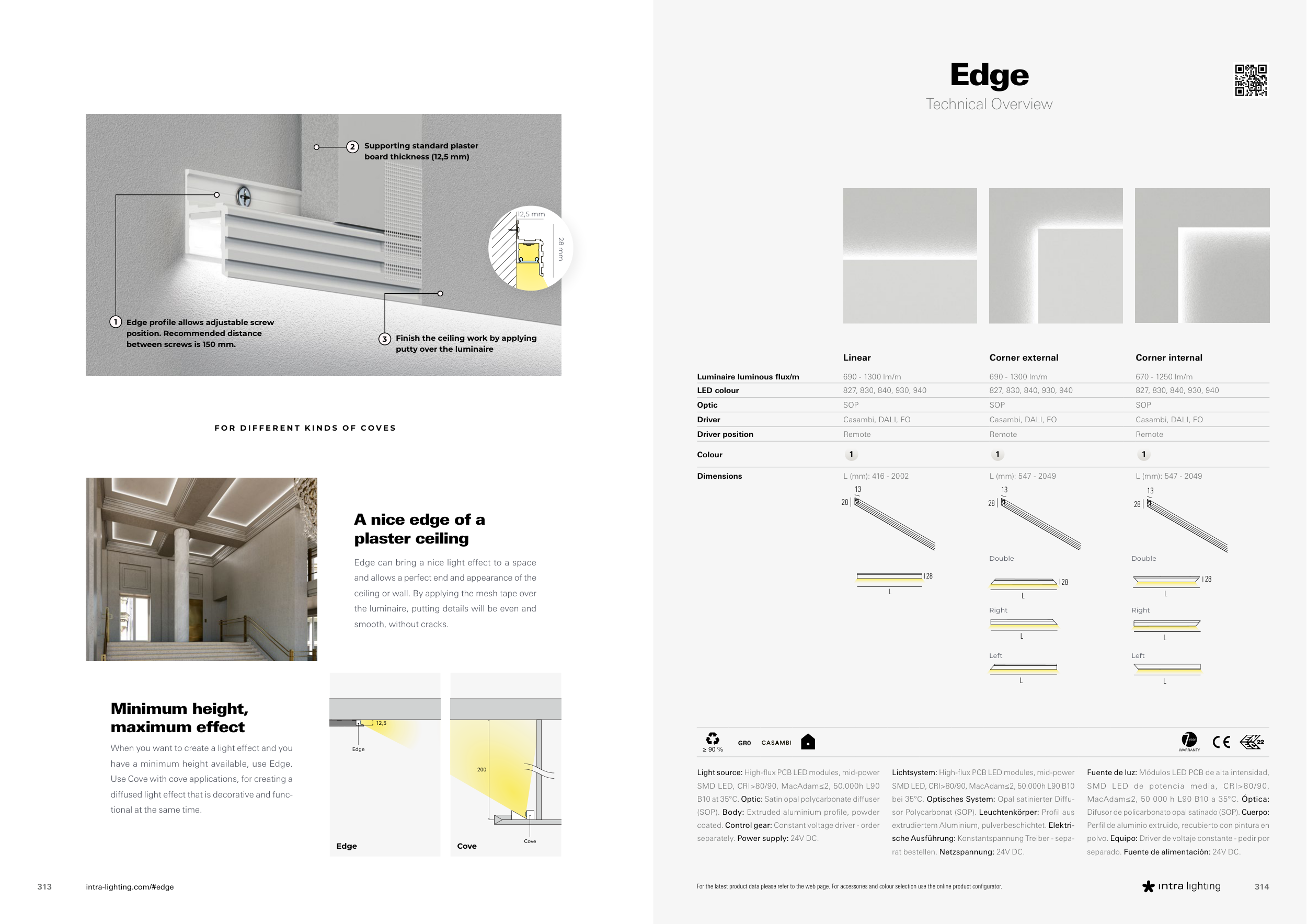

Technical Overview
Linear
Corner external
Corner internal
Luminaire luminous flux/m
690 - 1300 lm/m
690 - 1300 lm/m
670 - 1250 lm/m
LED colour
827, 830, 840, 930, 940
827, 830, 840, 930, 940
827, 830, 840, 930, 940
Optic
SOP
SOP
SOP
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Remote
Remote
Colour
1
1
1
Dimensions
L (mm): 416 - 2002
L (mm): 547 - 2049
L (mm): 547 - 2049
L
28
13
28
L
28
13
28
28
13
L
28
28
13
L
28
L
28
13
28
L
28
13
28
28
13
L
28
13
L
28
13
L
28
13
L
Double
Double
Right
Right
Left
Left
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Satin opal polycarbonate diffuser
(SOP). Body: Extruded aluminium profile, powder
coated. Control gear: Constant voltage driver - order
separately. Power supply: 24V DC.
≥ 90 %
GR0
year
WARRANTY
Edge
Cove
A nice edge of a
plaster ceiling
Edge can bring a nice light effect to a space
and allows a perfect end and appearance of the
ceiling or wall. By applying the mesh tape over
the luminaire, putting details will be even and
smooth, without cracks.
When you want to create a light effect and you
have a minimum height available, use Edge.
Use Cove with cove applications, for creating a
diffused light effect that is decorative and func-
tional at the same time.
Minimum height,
maximum effect
