For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
289
intra-lighting.com/#tracker
RI LN
RI LR 45° / 90°
RI UD
Linear
Curved left/right
Up/down
Luminaire luminous flux/m*
1700 lm/m, 2400 lm/m
1700 lm/m, 2400 lm/m
1700 lm/m, 2400 lm/m
Optics
Diffuser in a reel SOP, DPR
SOP, DPR
Diffuser in a reel SOP, DPR
LED colour
827, 830, 840, 930, 940
827, 830, 840, 930, 940
827, 830, 840, 930, 940
Driver
Casambi, DALI, FO (24V remote)
Casambi, DALI, FO (24V remote)
Casambi, DALI, FO (24V remote)
Colour
1
1
1
Dimensions
L (mm): 950 - 3040
L (mm): 1140 - 3040
R (mm) 726 - 3871
L (mm): 950, 4750
R min/max (mm): 500
27
L
56
27
L
56
27
L
56

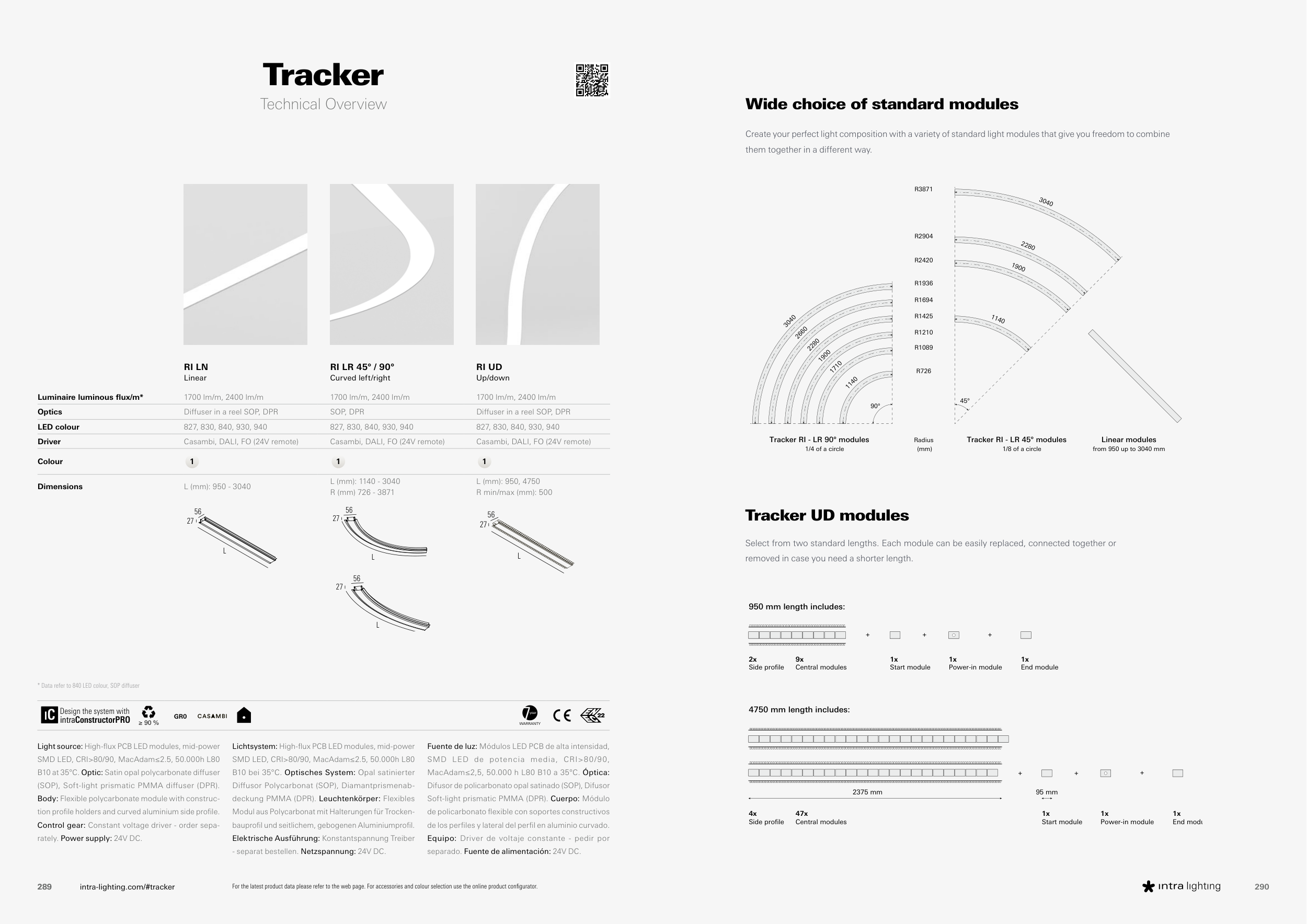

Tracker
Technical Overview
27
L
56
950 mm length includes:
2x
Side profile
+
+
+
1x
Start module
1x
Power-in module
1x
End module
+
+
+
1x
Start module
1x
Power-in module
1x
End module
9x
Central modules
4750 mm length includes:
4x
Side profile
2375 mm
95 mm
47x
Central modules
90°
1140
1710
1900
2280
2660
3040
Tracker RI - LR 90° modules
R726
Radius
1/4 of a circle
Tracker RI - LR 45° modules
1/8 of a circle
R1089
R1210
R1425
R1694
R1936
R2420
R2904
R3871
45°
1140
1900
2280
3040
Linear modules
from 950 up to 3040 mm
(mm)
Wide choice of standard modules
Tracker UD modules
Create your perfect light composition with a variety of standard light modules that give you freedom to combine
them together in a different way.
Select from two standard lengths. Each module can be easily replaced, connected together or
removed in case you need a shorter length.
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2.5, 50.000h L80
B10 at 35°C. Optic: Satin opal polycarbonate diffuser
(SOP), Soft-light prismatic PMMA diffuser (DPR).
Body: Flexible polycarbonate module with construc-
tion profile holders and curved aluminium side profile.
Control gear: Constant voltage driver - order sepa-
rately. Power supply: 24V DC.
IC intraConstructorPRO
Design the system with
≥ 90 %
GR0
year
WARRANTY
* Data refer to 840 LED colour, SOP diffuser
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2.5, 50.000h L80
B10 bei 35°C. Optisches System: Opal satinierter
Diffusor Polycarbonat (SOP), Diamantprismenab-
deckung PMMA (DPR). Leuchtenkörper: Flexibles
Modul aus Polycarbonat mit Halterungen für Trocken-
bauprofil und seitlichem, gebogenen Aluminiumprofil.
Elektrische Ausführung: Konstantspannung Treiber
- separat bestellen. Netzspannung: 24V DC.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2,5, 50.000 h L80 B10 a 35°C. Óptica:
Difusor de policarbonato opal satinado (SOP), Difusor
Soft-light prismatic PMMA (DPR). Cuerpo: Módulo
de policarbonato flexible con soportes constructivos
de los perfiles y lateral del perfil en aluminio curvado.
Equipo: Driver de voltaje constante - pedir por
separado. Fuente de alimentación: 24V DC.
