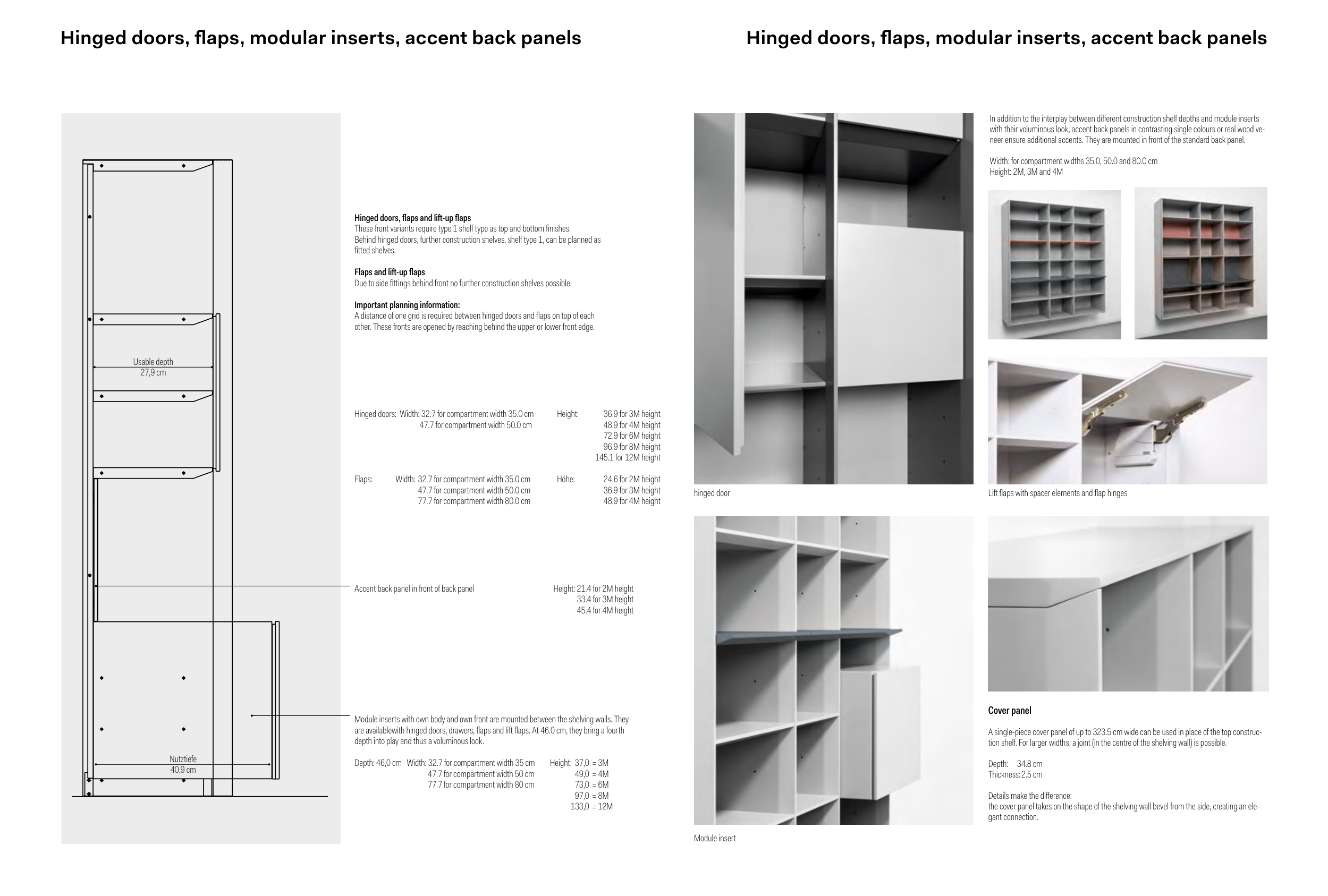

Hinged doors, flaps, modular inserts, accent back panels
Hinged doors, flaps, modular inserts, accent back panels
Hinged doors, flaps and lift-up flaps
These front variants require type 1 shelf type as top and bottom finishes.
Behind hinged doors, further construction shelves, shelf type 1, can be planned as
fitted shelves.
Flaps and lift-up flaps
Due to side fittings behind front no further construction shelves possible.
Important planning information:
A distance of one grid is required between hinged doors and flaps on top of each
other. These fronts are opened by reaching behind the upper or lower front edge.
Hinged doors: Width: 32.7 for compartment width 35.0 cm
47.7 for compartment width 50.0 cm
Flaps: Width: 32.7 for compartment width 35.0 cm
47.7 for compartment width 50.0 cm
77.7 for compartment width 80.0 cm
Height:
36.9 for 3M height
48.9 for 4M height
72.9 for 6M height
96.9 for 8M height
145.1 for 12M height
Höhe:
24.6 for 2M height
36.9 for 3M height
48.9 for 4M height
Height: 37,0 = 3M
49,0 = 4M
73,0 = 6M
97,0 = 8M
133,0 = 12M
Nutztiefe
40,9 cm
Usable depth
27,9 cm
Accent back panel in front of back panel
Height: 21.4 for 2M height
33.4 for 3M height
45.4 for 4M height
Module inserts with own body and own front are mounted between the shelving walls. They
are availablewith hinged doors, drawers, flaps and lift flaps. At 46.0 cm, they bring a fourth
depth into play and thus a voluminous look.
Depth: 46,0 cm Width: 32.7 for compartment width 35 cm
47.7 for compartment width 50 cm
77.7 for compartment width 80 cm
Cover panel
A single-piece cover panel of up to 323.5 cm wide can be used in place of the top construc-
tion shelf. For larger widths, a joint (in the centre of the shelving wall) is possible.
Depth: 34.8 cm
Thickness: 2.5 cm
Details make the difference:
the cover panel takes on the shape of the shelving wall bevel from the side, creating an ele-
gant connection.
In addition to the interplay between different construction shelf depths and module inserts
with their voluminous look, accent back panels in contrasting single colours or real wood ve-
neer ensure additional accents. They are mounted in front of the standard back panel.
Width: for compartment widths 35.0, 50.0 and 80.0 cm
Height: 2M, 3M and 4M
Lift flaps with spacer elements and flap hinges
hinged door
Module insert
