Accessories

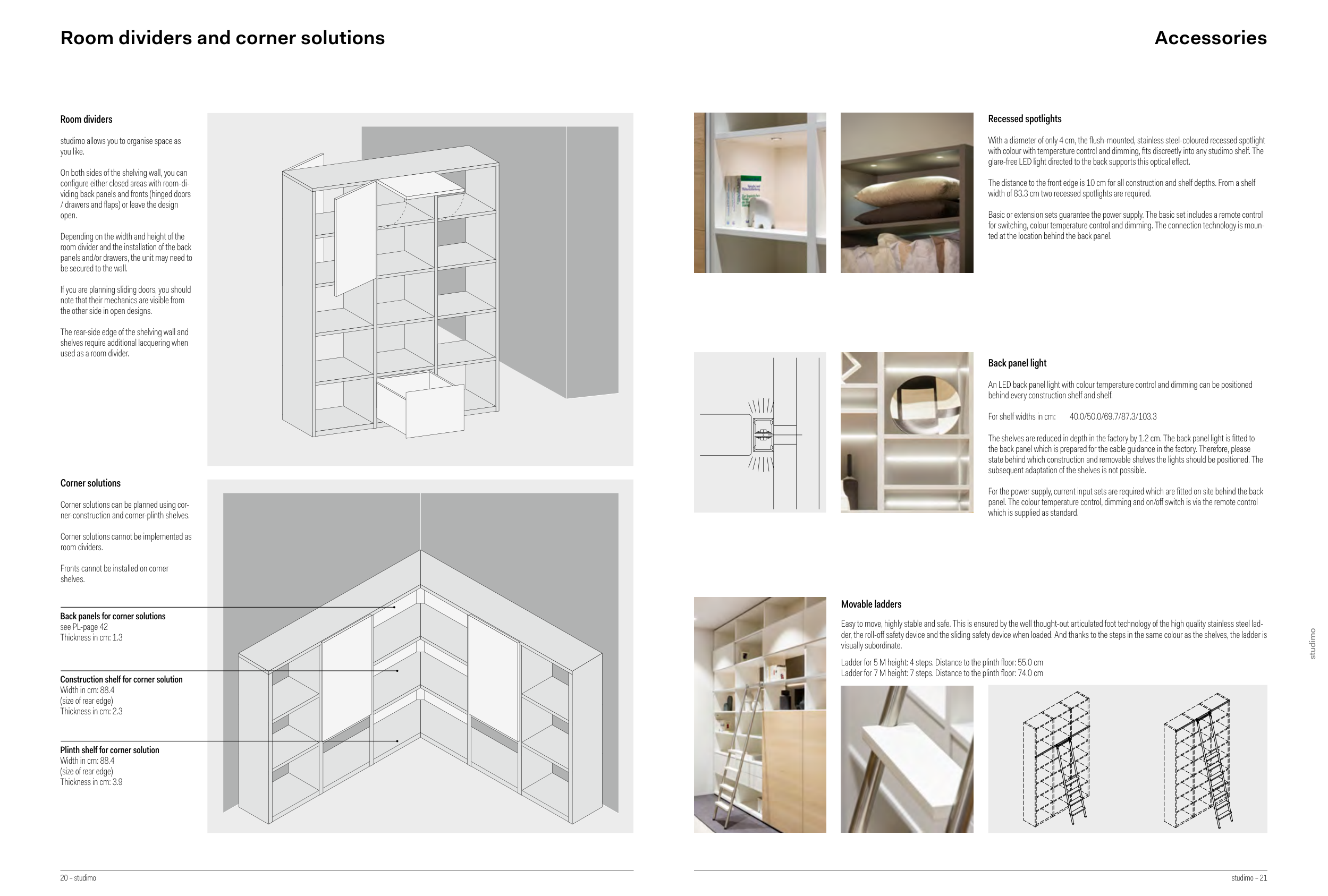

Room dividers and corner solutions
Movable ladders
Easy to move, highly stable and safe. This is ensured by the well thought-out articulated foot technology of the high quality stainless steel lad-
der, the roll-off safety device and the sliding safety device when loaded. And thanks to the steps in the same colour as the shelves, the ladder is
visually subordinate.
Ladder for 5 M height: 4 steps. Distance to the plinth floor: 55.0 cm
Ladder for 7 M height: 7 steps. Distance to the plinth floor: 74.0 cm
Room dividers
studimo allows you to organise space as
you like.
On both sides of the shelving wall, you can
configure either closed areas with room-di-
viding back panels and fronts (hinged doors
/ drawers and flaps) or leave the design
open.
Depending on the width and height of the
room divider and the installation of the back
panels and/or drawers, the unit may need to
be secured to the wall.
If you are planning sliding doors, you should
note that their mechanics are visible from
the other side in open designs.
The rear-side edge of the shelving wall and
shelves require additional lacquering when
used as a room divider.
Construction shelf for corner solution
Width in cm: 88.4
(size of rear edge)
Thickness in cm: 2.3
Back panels for corner solutions
see PL-page 42
Thickness in cm: 1.3
Plinth shelf for corner solution
Width in cm: 88.4
(size of rear edge)
Thickness in cm: 3.9
Corner solutions
Corner solutions can be planned using cor-
ner-construction and corner-plinth shelves.
Corner solutions cannot be implemented as
room dividers.
Fronts cannot be installed on corner
shelves.
Recessed spotlights
With a diameter of only 4 cm, the flush-mounted, stainless steel-coloured recessed spotlight
with colour with temperature control and dimming, fits discreetly into any studimo shelf. The
glare-free LED light directed to the back supports this optical effect.
The distance to the front edge is 10 cm for all construction and shelf depths. From a shelf
width of 83.3 cm two recessed spotlights are required.
Basic or extension sets guarantee the power supply. The basic set includes a remote control
for switching, colour temperature control and dimming. The connection technology is moun-
ted at the location behind the back panel.
Back panel light
An LED back panel light with colour temperature control and dimming can be positioned
behind every construction shelf and shelf.
For shelf widths in cm:
40.0/50.0/69.7/87.3/103.3
The shelves are reduced in depth in the factory by 1.2 cm. The back panel light is fitted to
the back panel which is prepared for the cable guidance in the factory. Therefore, please
state behind which construction and removable shelves the lights should be positioned. The
subsequent adaptation of the shelves is not possible.
For the power supply, current input sets are required which are fitted on site behind the back
panel. The colour temperature control, dimming and on/off switch is via the remote control
which is supplied as standard.
