Media equipments
Media equipments

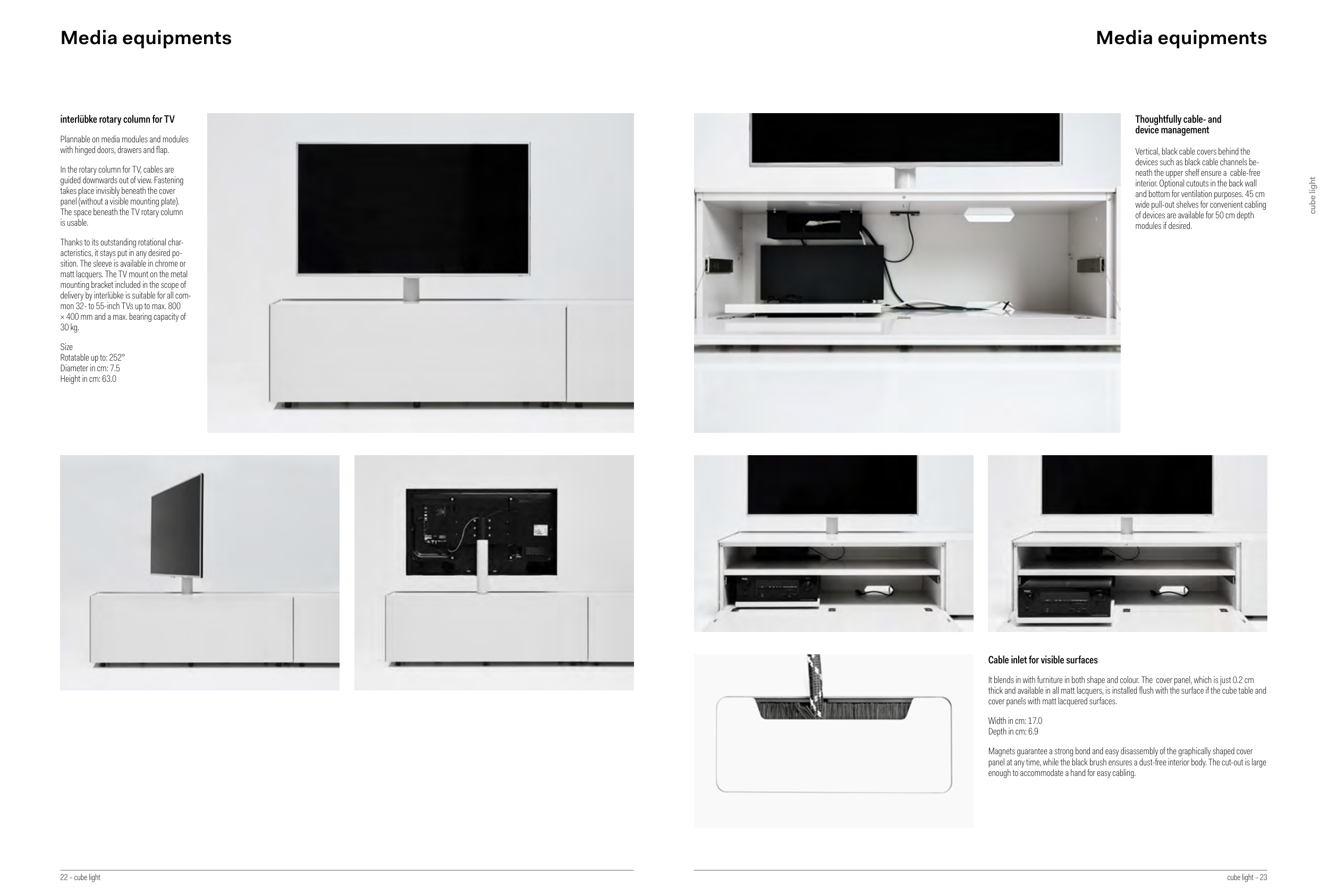

interlübke rotary column for TV
Plannable on media modules and modules
with hinged doors, drawers and flap.
In the rotary column for TV, cables are
guided downwards out of view. Fastening
takes place invisibly beneath the cover
panel (without a visible mounting plate).
The space beneath the TV rotary column
is usable.
Thanks to its outstanding rotational char-
acteristics, it stays put in any desired po-
sition. The sleeve is available in chrome or
matt lacquers. The TV mount on the metal
mounting bracket included in the scope of
delivery by interlübke is suitable for all com-
mon 32- to 55-inch TVs up to max. 800
× 400 mm and a max. bearing capacity of
30 kg.
Size
Rotatable up to: 252°
Diameter in cm: 7.5
Height in cm: 63.0
Cable inlet for visible surfaces
It blends in with furniture in both shape and colour. The cover panel, which is just 0.2 cm
thick and available in all matt lacquers, is installed flush with the surface if the cube table and
cover panels with matt lacquered surfaces.
Width in cm: 17.0
Depth in cm: 6.9
Magnets guarantee a strong bond and easy disassembly of the graphically shaped cover
panel at any time, while the black brush ensures a dust-free interior body. The cut-out is large
enough to accommodate a hand for easy cabling.
Thoughtfully cable- and
device management
Vertical, black cable covers behind the
devices such as black cable channels be-
neath the upper shelf ensure a cable-free
interior. Optional cutouts in the back wall
and bottom for ventilation purposes. 45 cm
wide pull-out shelves for convenient cabling
of devices are available for 50 cm depth
modules if desired.
