Betten

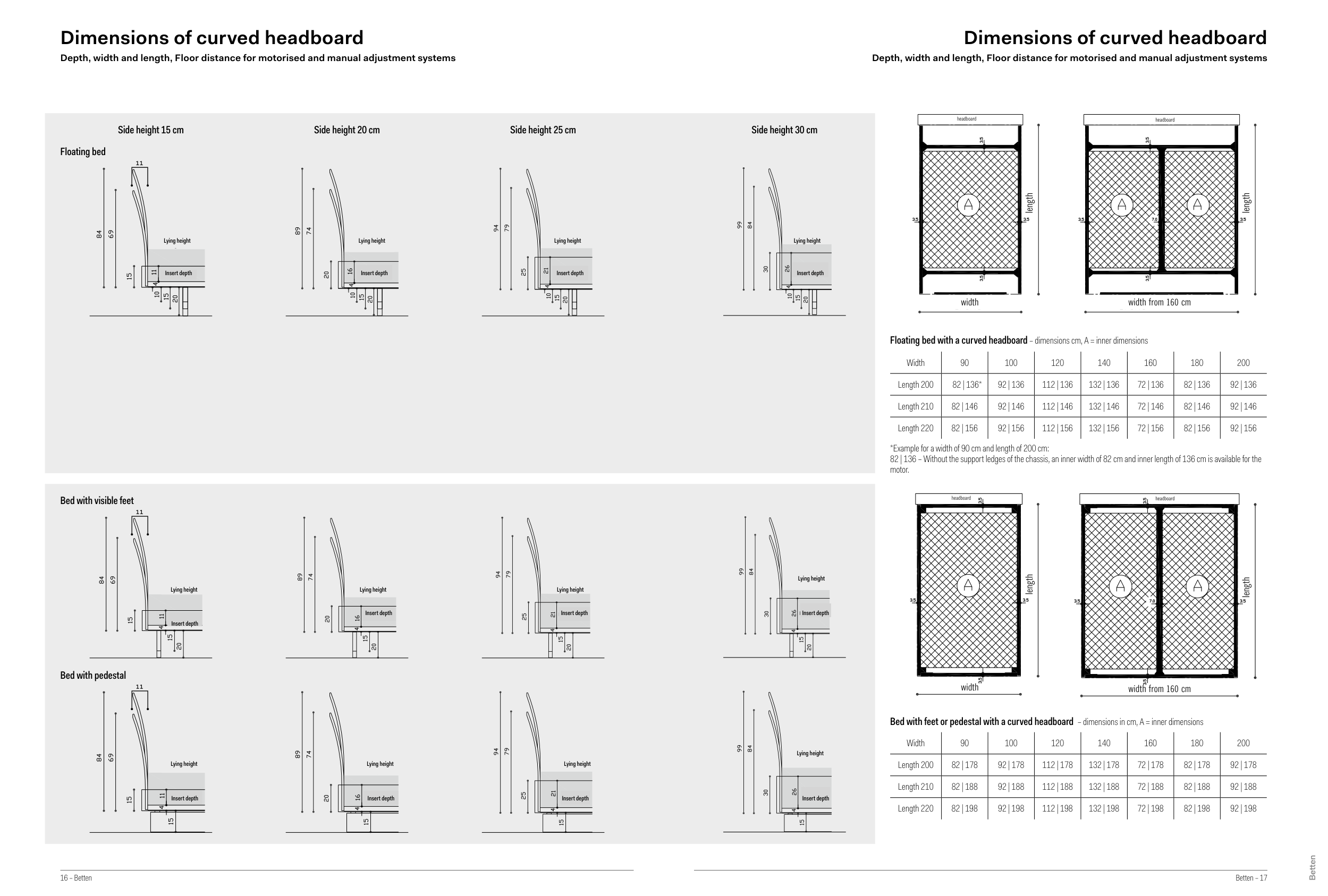

Dimensions of curved headboard
Depth, width and length, Floor distance for motorised and manual adjustment systems
Dimensions of curved headboard
Depth, width and length, Floor distance for motorised and manual adjustment systems
Floating bed
Side height 15 cm
Side height 20 cm
Side height 25 cm
Side height 30 cm
Bed with visible feet
Bed with pedestal
Floating bed with a curved headboard – dimensions cm, A = inner dimensions
Width
90
100
120
140
160
180
200
Length 200
82 | 136*
92 | 136
112 | 136
132 | 136
72 | 136
82 | 136
92 | 136
Length 210
82 | 146
92 | 146
112 | 146
132 | 146
72 | 146
82 | 146
92 | 146
Length 220
82 | 156
92 | 156
112 | 156
132 | 156
72 | 156
82 | 156
92 | 156
Bed with feet or pedestal with a curved headboard – dimensions in cm, A = inner dimensions
Width
90
100
120
140
160
180
200
Length 200
82 | 178
92 | 178
112 | 178
132 | 178
72 | 178
82 | 178
92 | 178
Length 210
82 | 188
92 | 188
112 | 188
132 | 188
72 | 188
82 | 188
92 | 188
Length 220
82 | 198
92 | 198
112 | 198
132 | 198
72 | 198
82 | 198
92 | 198
*Example for a width of 90 cm and length of 200 cm:
82 | 136 – Without the support ledges of the chassis, an inner width of 82 cm and inner length of 136 cm is available for the
motor.
width from 160 cm
length
width
length
width from 160 cm
length
width
length
headboard
headboard
headboard
headboard
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Lying height
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
Insert depth
