collect plus

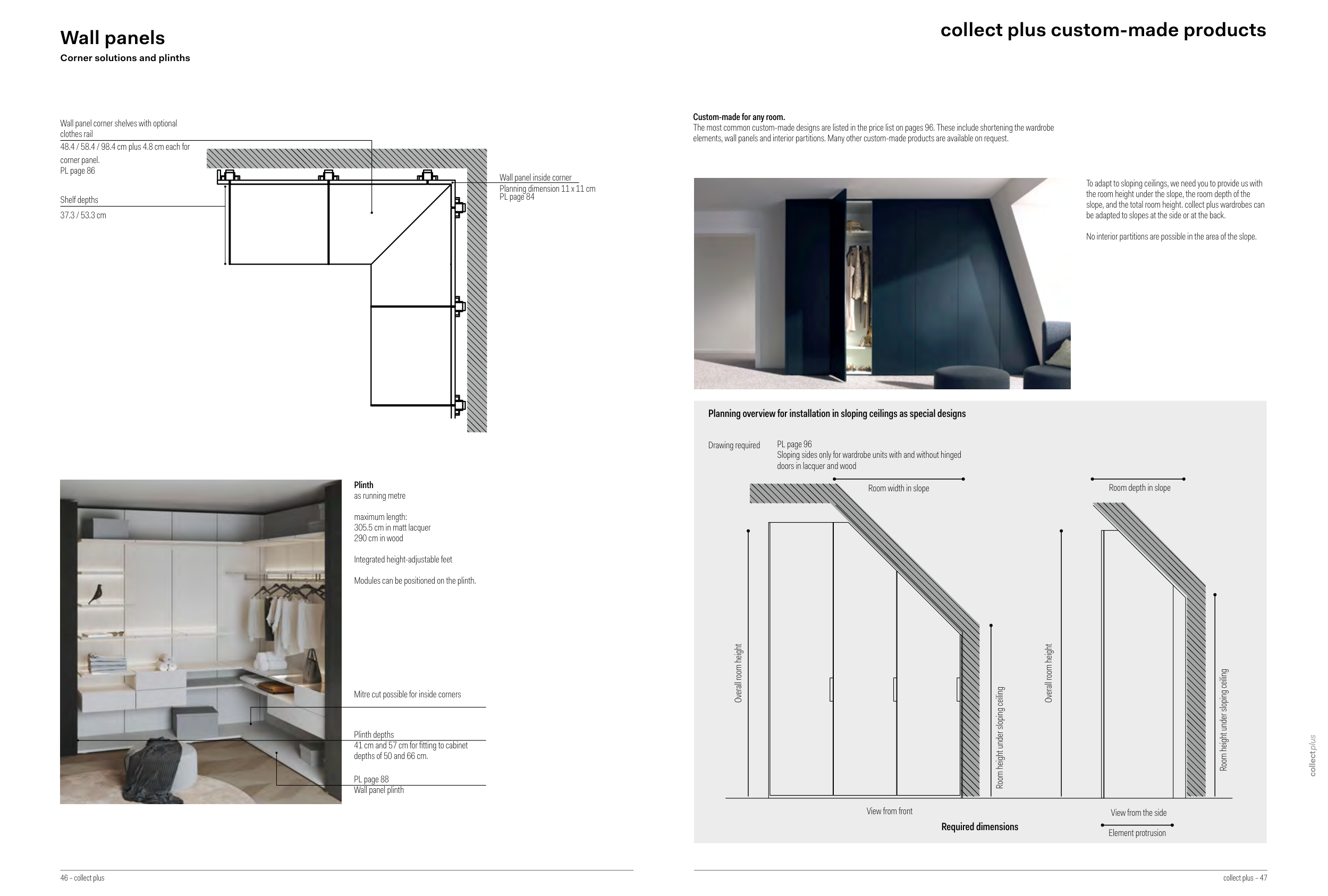

Wall panels
Corner solutions and plinths
Plinth
as running metre
maximum length:
305.5 cm in matt lacquer
290 cm in wood
Integrated height-adjustable feet
Modules can be positioned on the plinth.
Wall panel corner shelves with optional
clothes rail
48.4 / 58.4 / 98.4 cm plus 4.8 cm each for
corner panel.
PL page 86
Shelf depths
37.3 / 53.3 cm
Wall panel inside corner
Planning dimension 11 x 11 cm
PL page 84
PL page 88
Wall panel plinth
Plinth depths
41 cm and 57 cm for fitting to cabinet
depths of 50 and 66 cm.
Mitre cut possible for inside corners
collect plus custom-made products
Custom-made for any room.
The most common custom-made designs are listed in the price list on pages 96. These include shortening the wardrobe
elements, wall panels and interior partitions. Many other custom-made products are available on request.
To adapt to sloping ceilings, we need you to provide us with
the room height under the slope, the room depth of the
slope, and the total room height. collect plus wardrobes can
be adapted to slopes at the side or at the back.
No interior partitions are possible in the area of the slope.
Planning overview for installation in sloping ceilings as special designs
Drawing required
PL page 96
Sloping sides only for wardrobe units with and without hinged
doors in lacquer and wood
Room width in slope
Room depth in slope
Overall room height
Overall room height
Element protrusion
Required dimensions
Room height under sloping ceiling
Room height under sloping ceiling
View from front
View from the side
