Remote control for hoods
A/301/03
Activated carbon filters
A/076/24
Under-hood rack
A/092/23
Accessories
Technical data
General features
• Automatic filter cleaning
warning light
• Automatic delayed shutdown
• Flue outlet hole 15 cm
• Maximum power: 705W
(AM-70 and AM-76 535W)
• Energy class A
• 2 x 175W infrared lights for
wall-mounted food warmers
(one light for mod. AM-70
and AM-76)
• Painted steel body,
AISI 304 stainless steel body
(only inox version)
• Anodised aluminium filters
• Maximum air flow 890 m3/h
• Remote control set-up (optional)
• 3 speeds + intensive
• Available in extraction or
filtering version
• Front LED lights

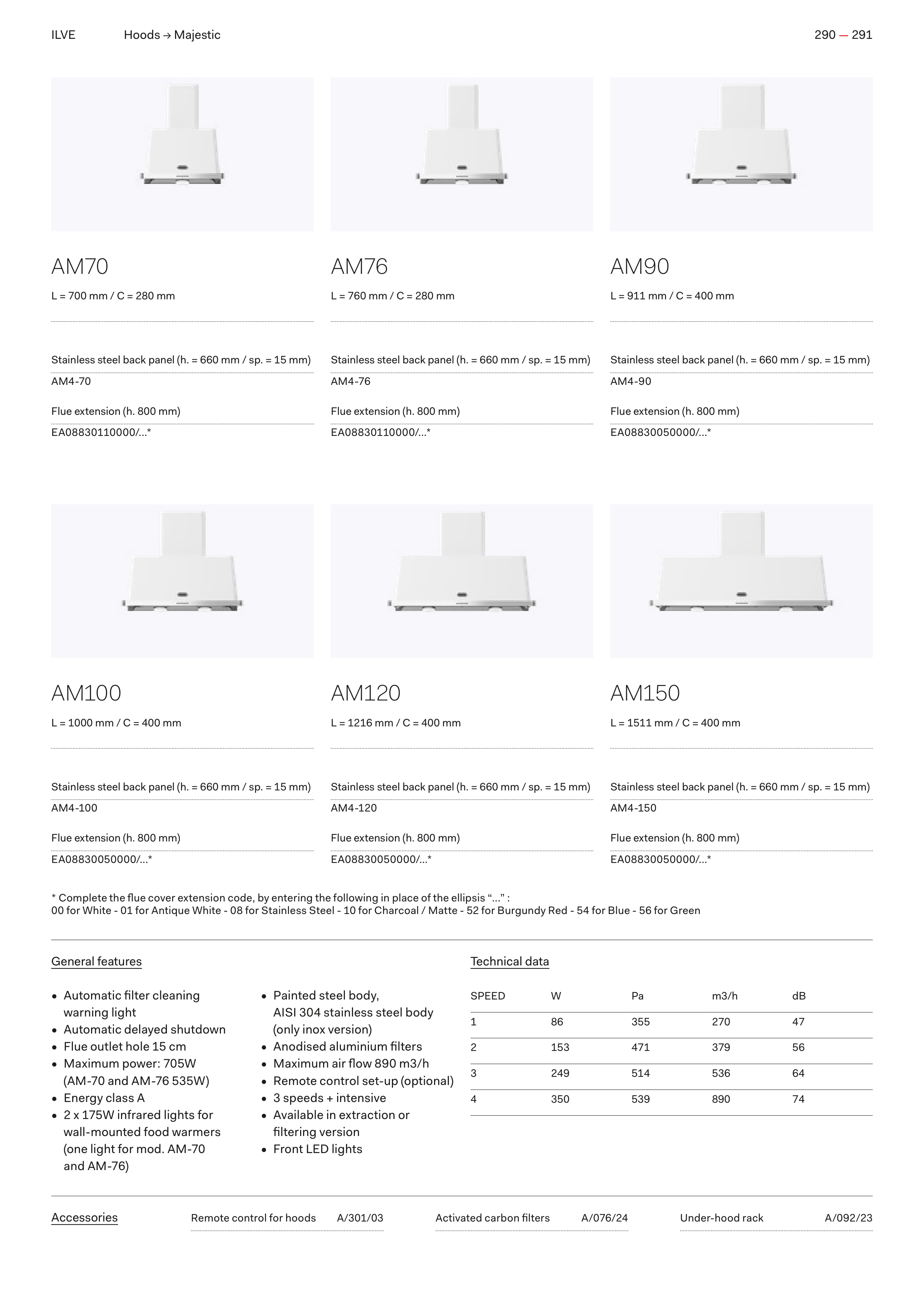

AM70
L = 700 mm / C = 280 mm
AM76
L = 760 mm / C = 280 mm
AM90
L = 911 mm / C = 400 mm
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-70
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-76
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-90
Flue extension (h. 800 mm)
EA08830110000/...*
Flue extension (h. 800 mm)
EA08830110000/...*
Flue extension (h. 800 mm)
EA08830050000/...*
AM100
L = 1000 mm / C = 400 mm
AM120
L = 1216 mm / C = 400 mm
AM150
L = 1511 mm / C = 400 mm
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-100
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-120
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-150
Flue extension (h. 800 mm)
EA08830050000/...*
Flue extension (h. 800 mm)
EA08830050000/...*
Flue extension (h. 800 mm)
EA08830050000/...*
* Complete the flue cover extension code, by entering the following in place of the ellipsis “...” :
00 for White - 01 for Antique White - 08 for Stainless Steel - 10 for Charcoal / Matte - 52 for Burgundy Red - 54 for Blue - 56 for Green
SPEED
W
Pa
m3/h
dB
1
86
355
270
47
2
153
471
379
56
3
249
514
536
64
4
350
539
890
74
ILVE
290 — 291
Hoods → Majestic
