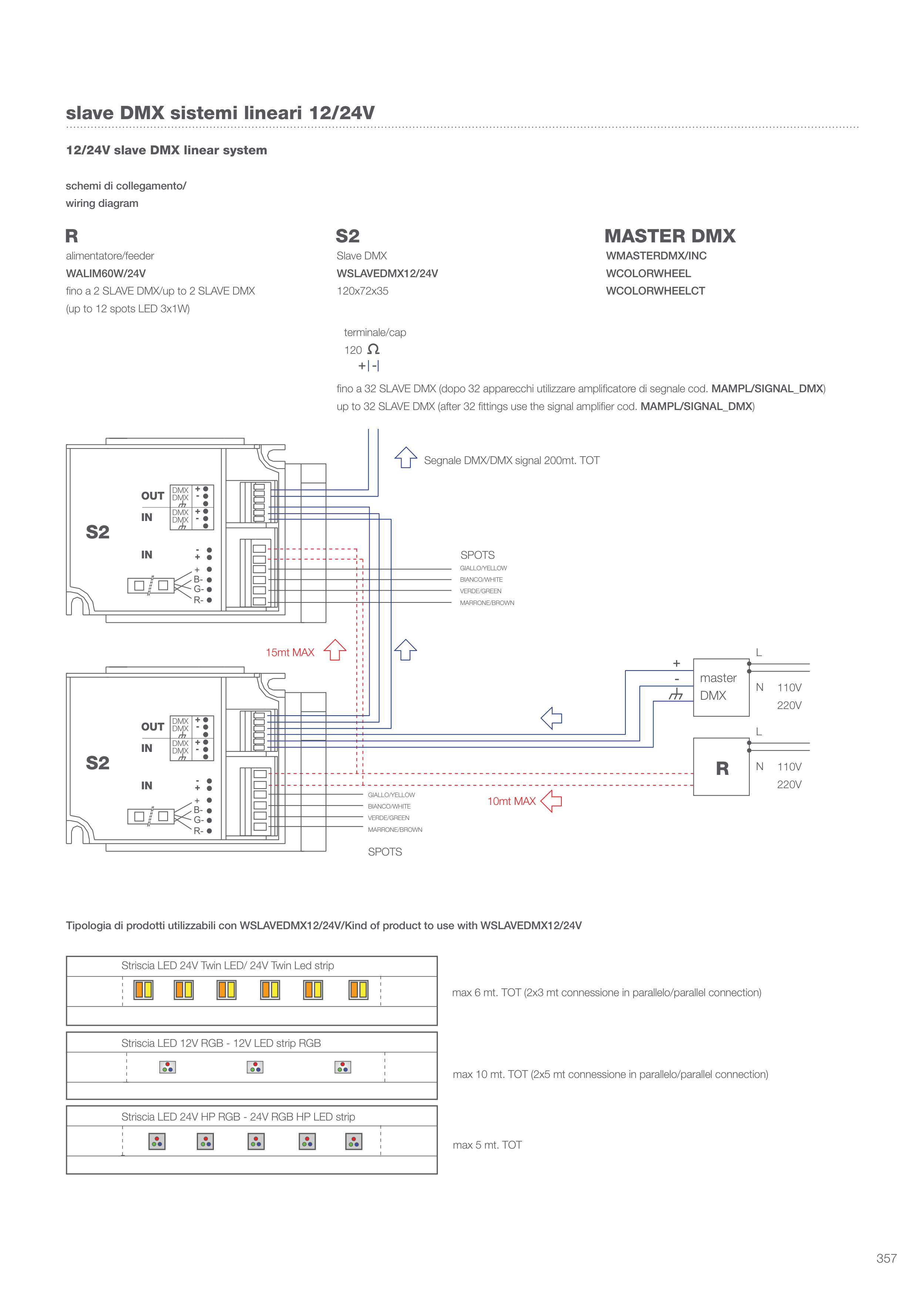

slave DMX sistemi lineari 12/24V
12/24V slave DMX linear system
schemi di collegamento/
wiring diagram
357
WMASTERDMX/INC
WCOLORWHEEL
WCOLORWHEELCT
DMX
DMX
DMX
DMX
DMX
DMX
DMX
DMX
IN
IN
IN
IN
OUT
OUT
R
S2
S2
S2
MASTER DMX
Segnale DMX/DMX signal 200mt. TOT
Tipologia di prodotti utilizzabili con WSLAVEDMX12/24V/Kind of product to use with WSLAVEDMX12/24V
max 6 mt. TOT (2x3 mt connessione in parallelo/parallel connection)
Striscia LED 24V Twin LED/ 24V Twin Led strip
Striscia LED 12V RGB - 12V LED strip RGB
Striscia LED 24V HP RGB - 24V RGB HP LED strip
max 10 mt. TOT (2x5 mt connessione in parallelo/parallel connection)
max 5 mt. TOT
SPOTS
SPOTS
10mt MAX
15mt MAX
alimentatore/feeder
WALIM60W/24V
fino a 2 SLAVE DMX/up to 2 SLAVE DMX
(up to 12 spots LED 3x1W)
Slave DMX
WSLAVEDMX12/24V
120x72x35
fino a 32 SLAVE DMX (dopo 32 apparecchi utilizzare amplificatore di segnale cod. MAMPL/SIGNAL_DMX)
up to 32 SLAVE DMX (after 32 fittings use the signal amplifier cod. MAMPL/SIGNAL_DMX)
terminale/cap
120
GIALLO/YELLOW
BIANCO/WHITE
VERDE/GREEN
MARRONE/BROWN
+
-
R
110V
220V
110V
220V
L
L
N
N
master
DMX
+
+
+
+
-
-
-
-
+
+
-
-
+
+
B-
B-
G-
G-
R-
R-
GIALLO/YELLOW
BIANCO/WHITE
VERDE/GREEN
MARRONE/BROWN
+ -
