slave DMX
slave DMX

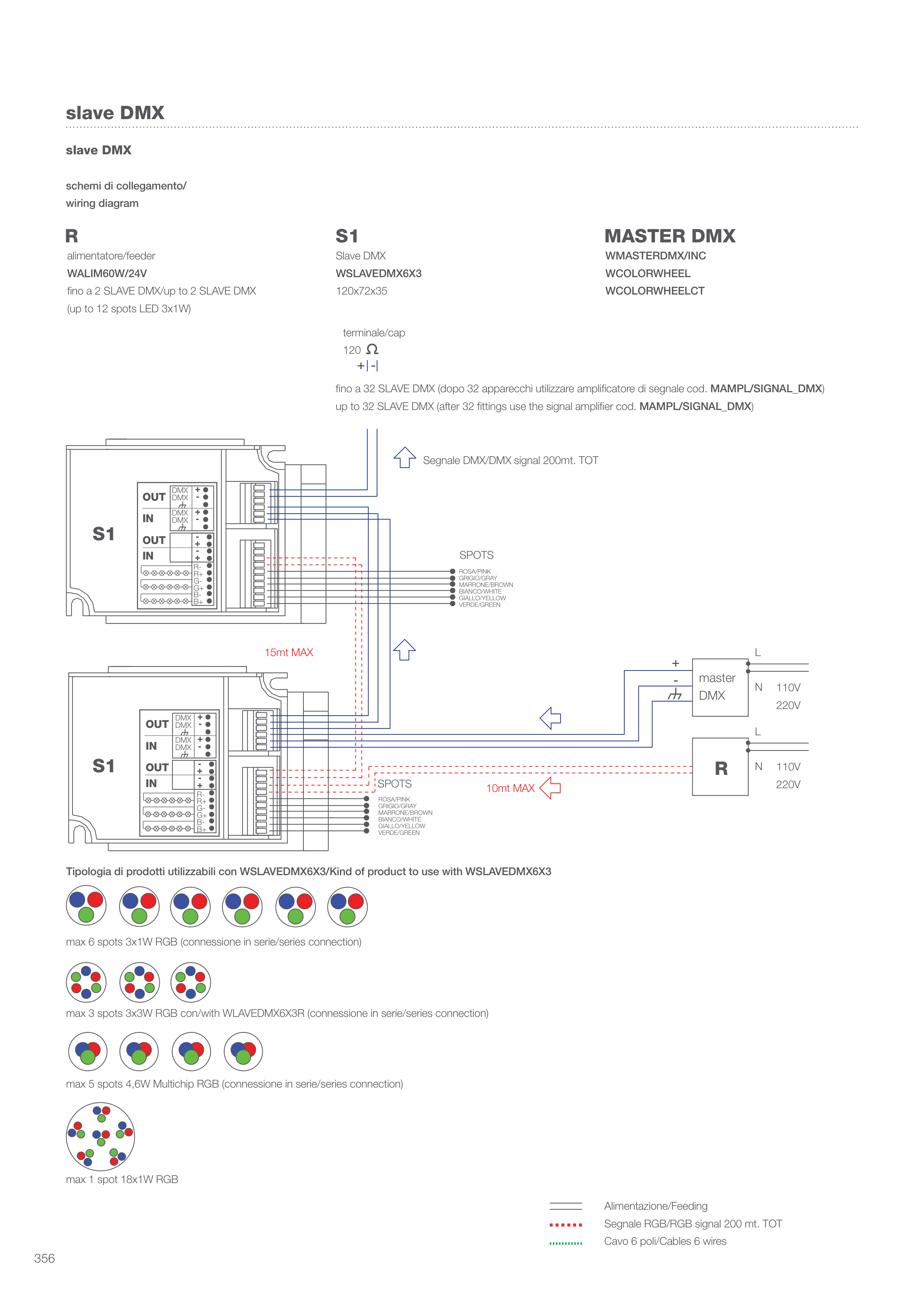

schemi di collegamento/
wiring diagram
356
DMX
DMX
DMX
DMX
+
-
+
-
DMX
DMX
DMX
DMX
IN
IN
IN
IN
OUT
OUT
OUT
OUT
R
S1
S1
S1
MASTER DMX
Segnale DMX/DMX signal 200mt. TOT
Tipologia di prodotti utilizzabili con WSLAVEDMX6X3/Kind of product to use with WSLAVEDMX6X3
max 6 spots 3x1W RGB (connessione in serie/series connection)
max 3 spots 3x3W RGB con/with WLAVEDMX6X3R (connessione in serie/series connection)
max 5 spots 4,6W Multichip RGB (connessione in serie/series connection)
max 1 spot 18x1W RGB
SPOTS
SPOTS
10mt MAX
15mt MAX
alimentatore/feeder
WALIM60W/24V
fino a 2 SLAVE DMX/up to 2 SLAVE DMX
(up to 12 spots LED 3x1W)
Slave DMX
WSLAVEDMX6X3
120x72x35
WMASTERDMX/INC
WCOLORWHEEL
WCOLORWHEELCT
+
+
-
-
+
-
+
-
+
+
-
-
Alimentazione/Feeding
Segnale RGB/RGB signal 200 mt. TOT
Cavo 6 poli/Cables 6 wires
fino a 32 SLAVE DMX (dopo 32 apparecchi utilizzare amplificatore di segnale cod. MAMPL/SIGNAL_DMX)
up to 32 SLAVE DMX (after 32 fittings use the signal amplifier cod. MAMPL/SIGNAL_DMX)
terminale/cap
120
R-
R+
G-
G+
B-
B+
R-
R+
G-
G+
B-
B+
ROSA/PINK
GRIGIO/GRAY
MARRONE/BROWN
BIANCO/WHITE
GIALLO/YELLOW
VERDE/GREEN
ROSA/PINK
GRIGIO/GRAY
MARRONE/BROWN
BIANCO/WHITE
GIALLO/YELLOW
VERDE/GREEN
+
-
R
110V
220V
110V
220V
L
L
N
N
master
DMX
+ -
