alimentatore/feeder
WALIMLED020/24
prodotti con nastro LED 24V/
product with 24V strip LED
20W - 24V
alimentatore/feeder
WALIMLED020/24
prodotti con nastro LED 24V/
product with 24V strip LED
20W - 24V
dimmer
WBOKOTDIM (120W max)
170x40x19 - 4W
variatore/current variation
WBOKVAR
80x80x60 - 1 - 10V
P
P
E
110V
220V
110V
220V
L
L
N
N
VAR
OT-DIM
OT-DIM
VAR
VAR
alimentatore/feeder
WALIM/DIMM/JOLLY
prodotti con nastro LED 24V/
product with 24V strip LED
MAX 20W - 24V
variatore/current variation
WBOKVAR
80x80x60 - 1 - 10V
E
VAR
+
-

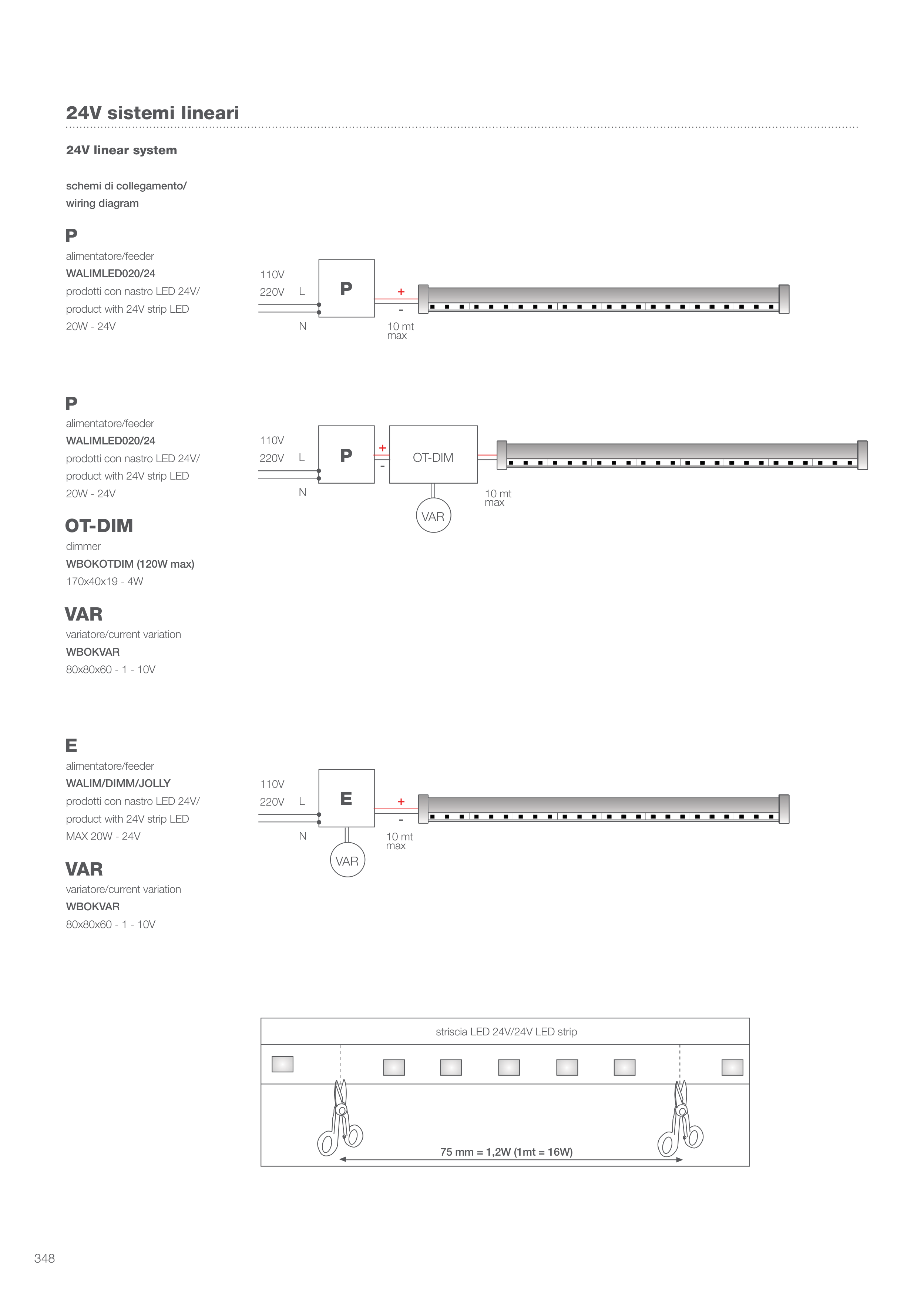

24V sistemi lineari
24V linear system
schemi di collegamento/
wiring diagram
P
348
10 mt
max
10 mt
max
10 mt
max
+
+
-
-
75 mm = 1,2W (1mt = 16W)
striscia LED 24V/24V LED strip
P
110V
220V
L
N
